Turn Signal And Hazard Warning Lamps: Schematic

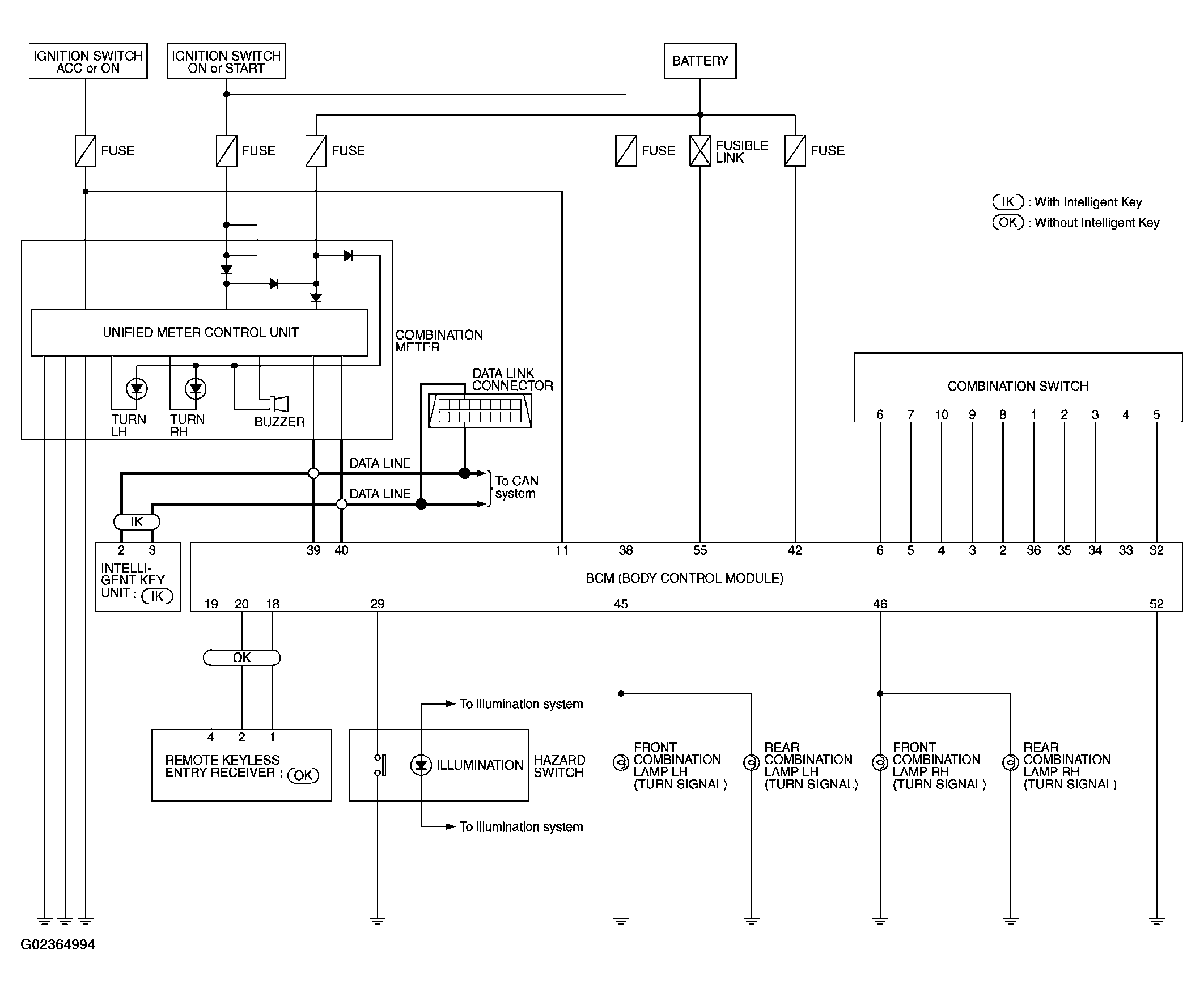

Fig 1: Schematic Diagram
G02364994Courtesy of NISSAN MOTOR CO., U.S.A.
