Wiring Diagram - TAIL/L -

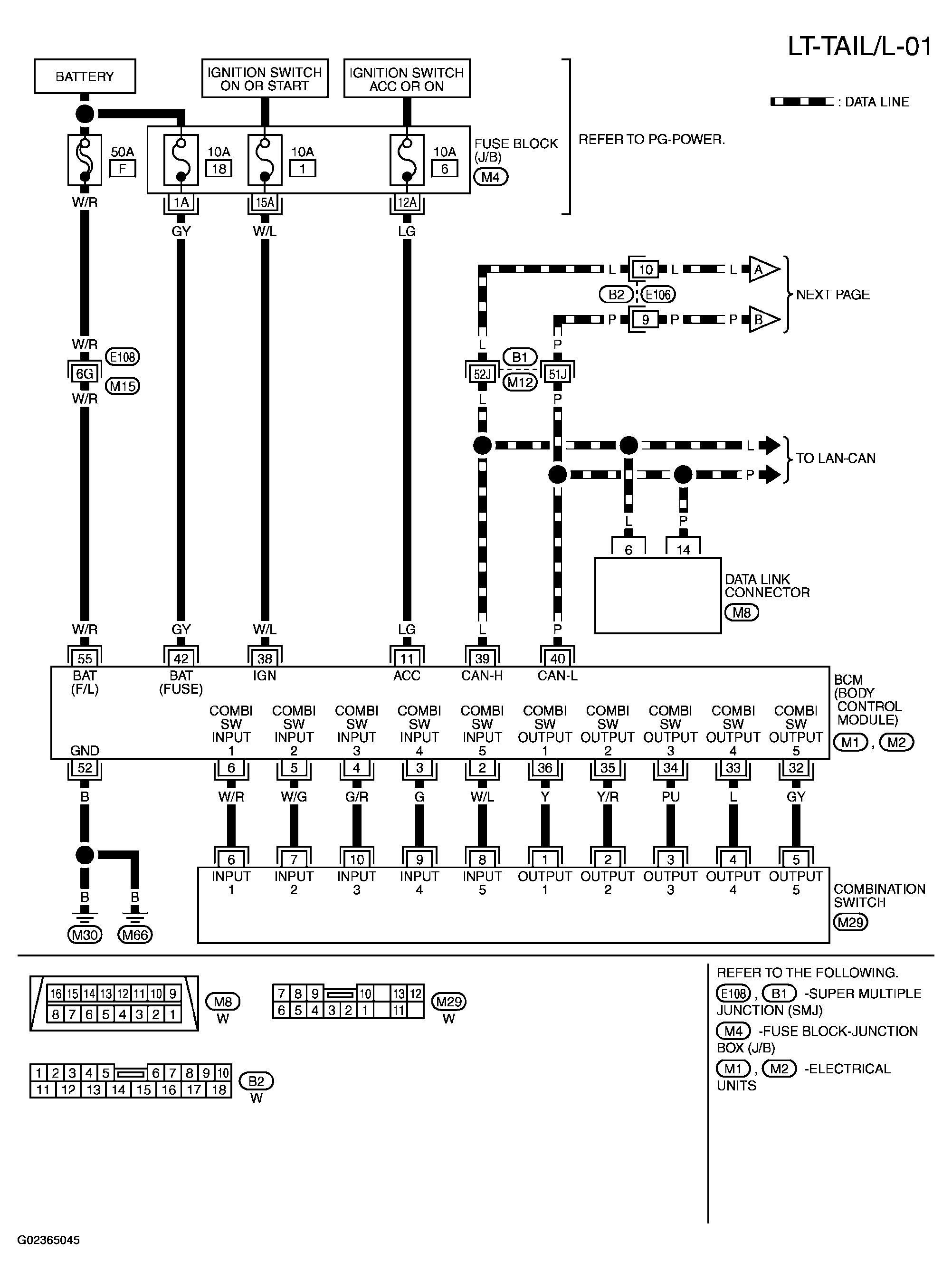

Fig 1: Wiring Diagram - TAIL/L (LT-TAIL/L-01)
G02365045Courtesy of NISSAN MOTOR CO., U.S.A.

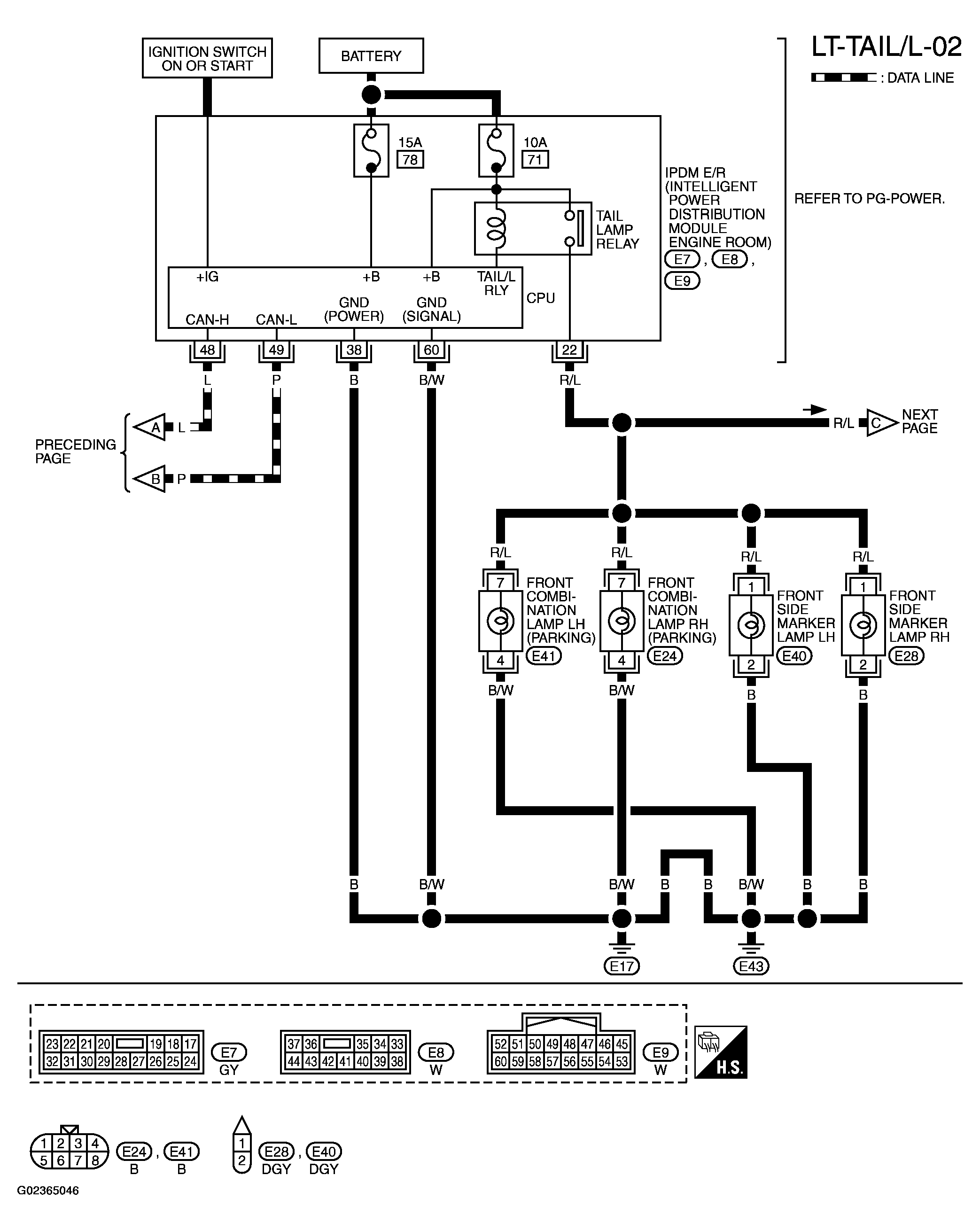

Fig 2: Wiring Diagram - TAIL/L (LT-TAIL/L-02)
G02365046Courtesy of NISSAN MOTOR CO., U.S.A.

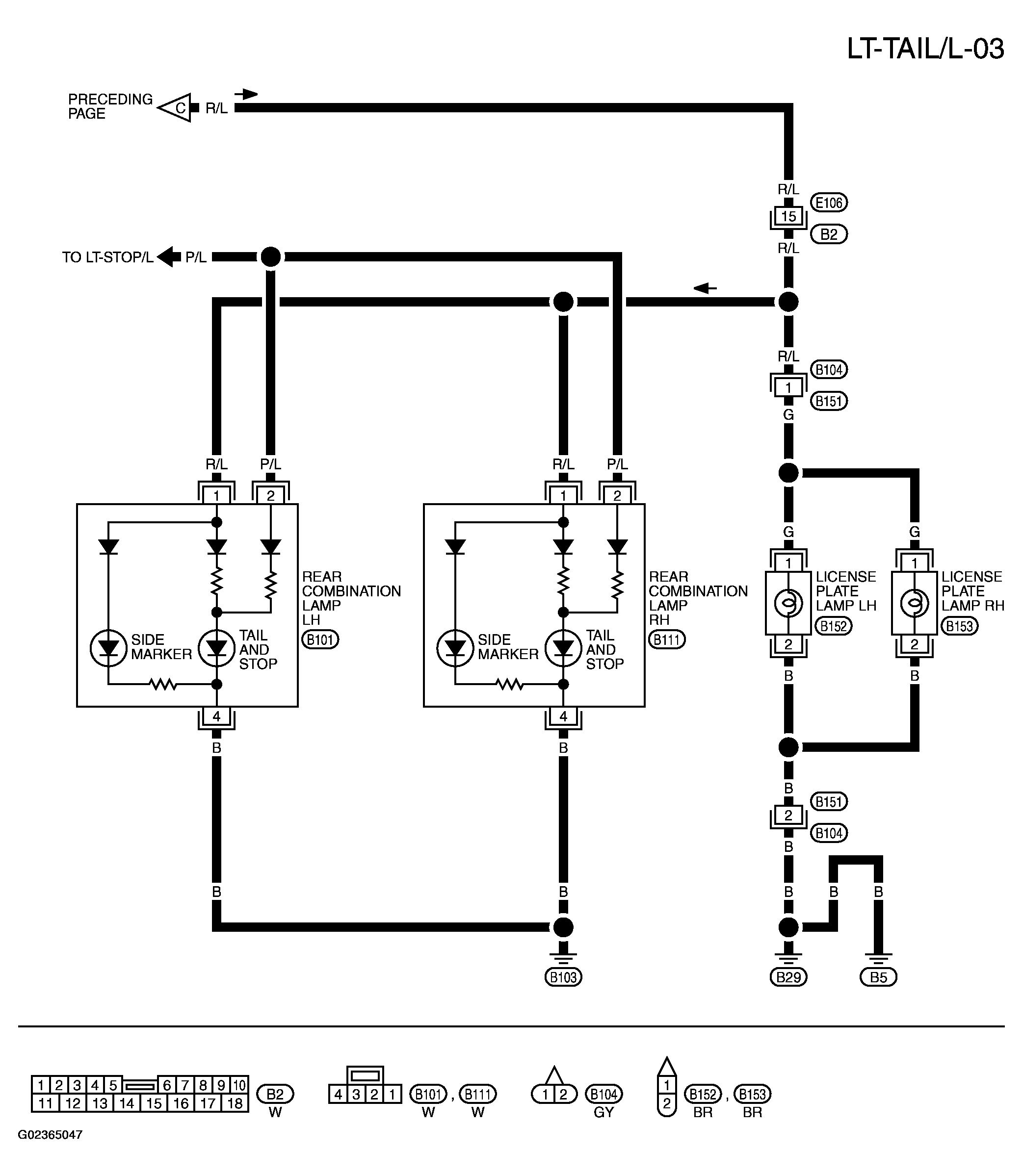

Fig 3: Wiring Diagram - TAIL/L (LT-TAIL/L-03)
G02365047Courtesy of NISSAN MOTOR CO., U.S.A.
