Terminals and Reference Values for IPDM E/R

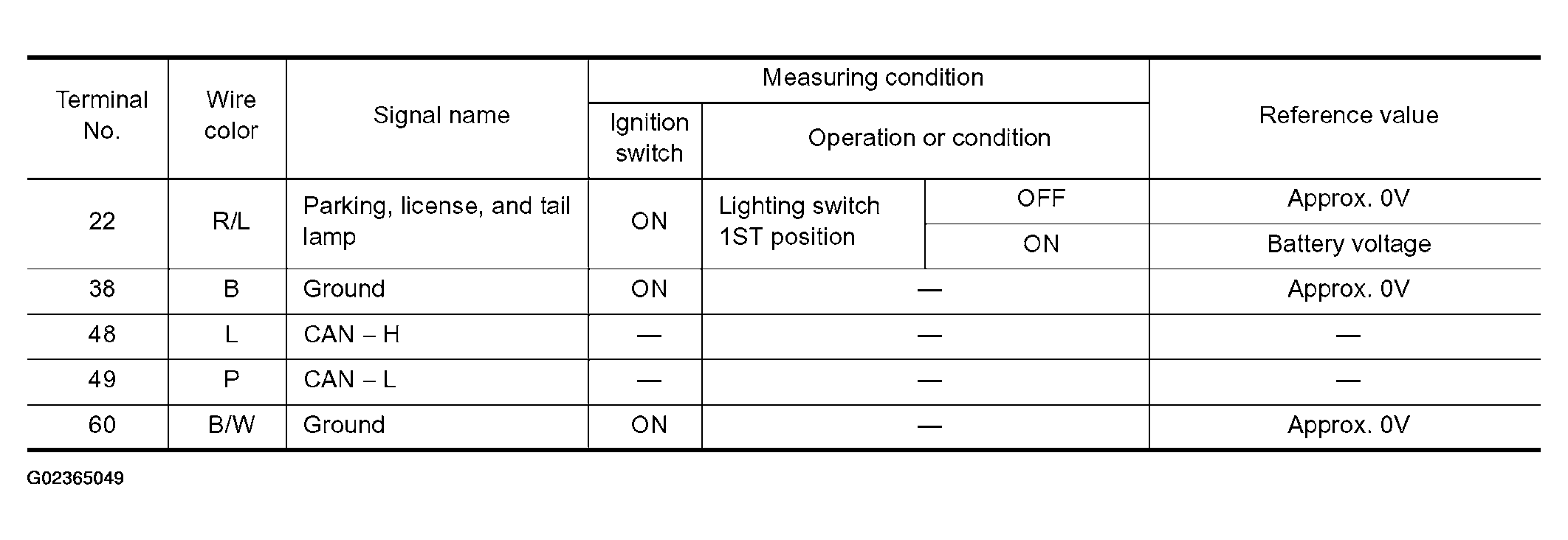

Fig 1: Terminals And Reference Values For IPDM E/R Chart

G02365049

Courtesy of NISSAN MOTOR CO., U.S.A.
