LEMON Manuals: Even more car manuals for everyone

Home >> Infiniti >> 2005 >> G35 x >> Repair and Diagnosis >> Accessories & Equipment >> Exterior Lights >> Parking, License Plate And Tail Lamps - Sedan >> Parking, License Plate And Tail Lamps >> Terminals and Reference Values for BCM

Terminals and Reference Values for BCM

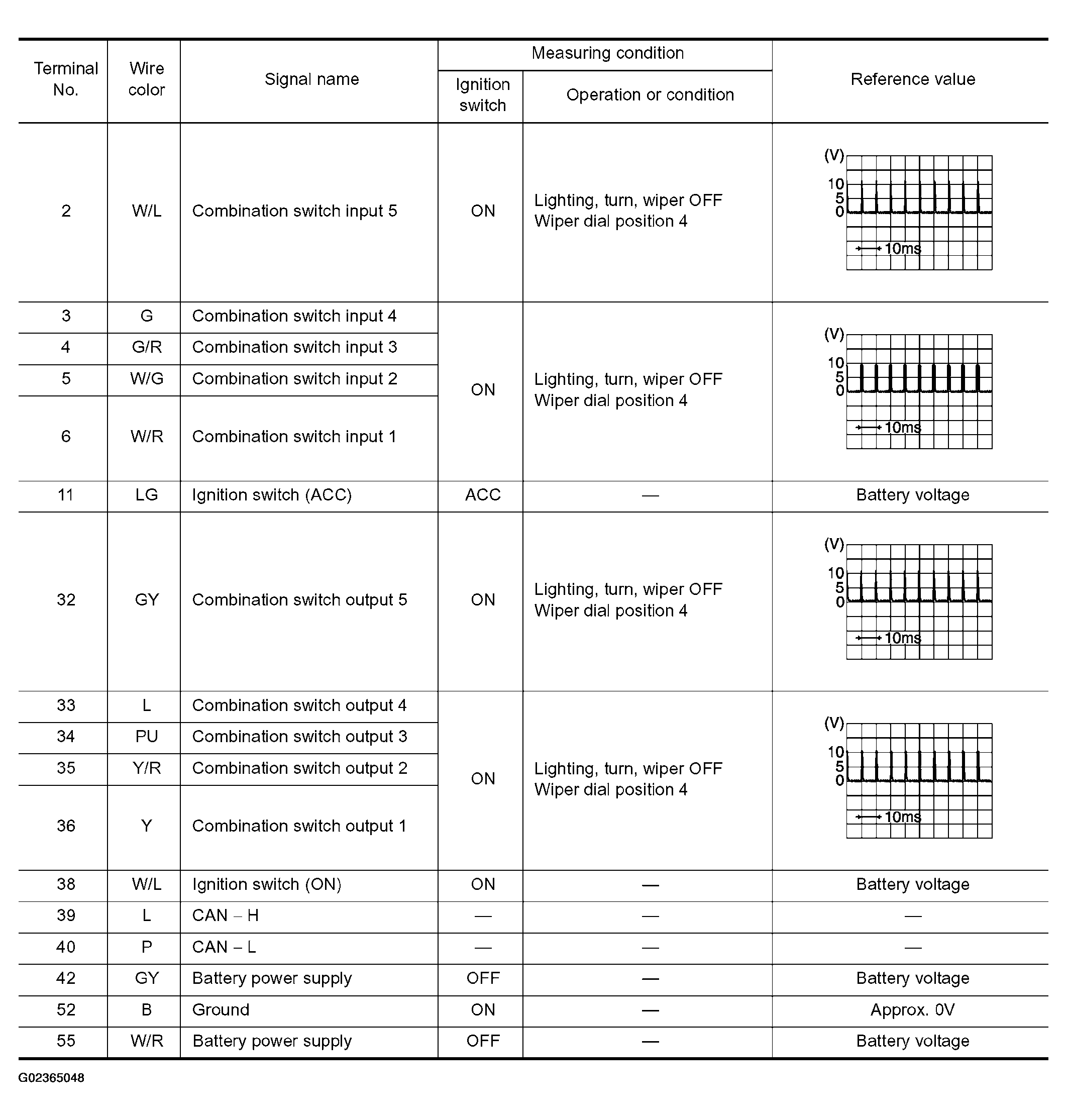

Fig 1: Terminals And Reference Values For BCM Chart

G02365048

Courtesy of NISSAN MOTOR CO., U.S.A.
