License Plate Lamp

  1. Remove license plate lamp. Refer to "Removal  ".
  2. Turn bulb socket counterclockwise and unlock it.
  3. Remove bulb from it's socket.

    License plate lamp: 12V - 5W

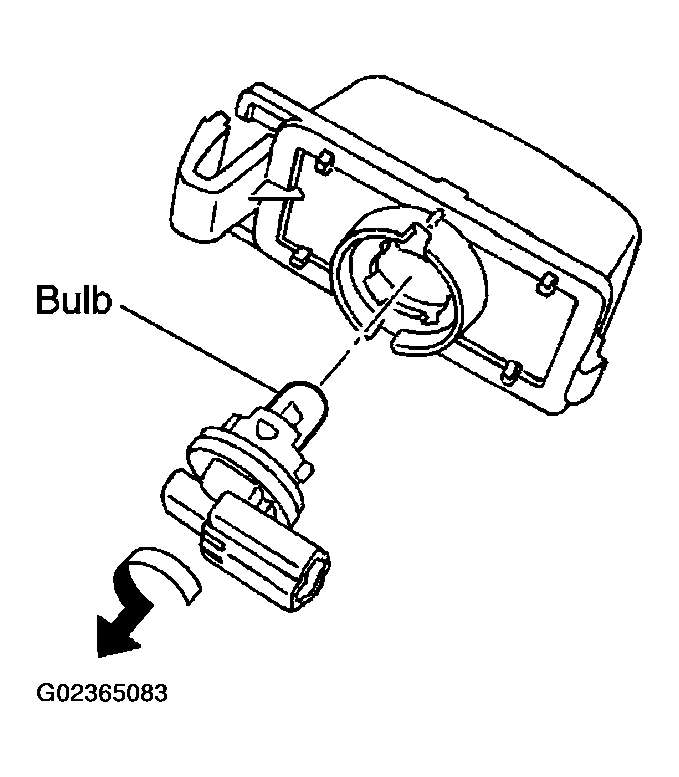

    Fig 1: Turning Bulb Socket Counterclockwise For Unlocking It
    G02365083Courtesy of NISSAN MOTOR CO., U.S.A.
