Front Side Marker Lamp

  1. Remove front side marker lamp. Refer to "FRONT SIDE MARKER LAMP  ".
  2. Turn bulb socket left to release lock and remove it.
  3. Remove bulb.

    Front side marker lamp: 12V - 3.8W

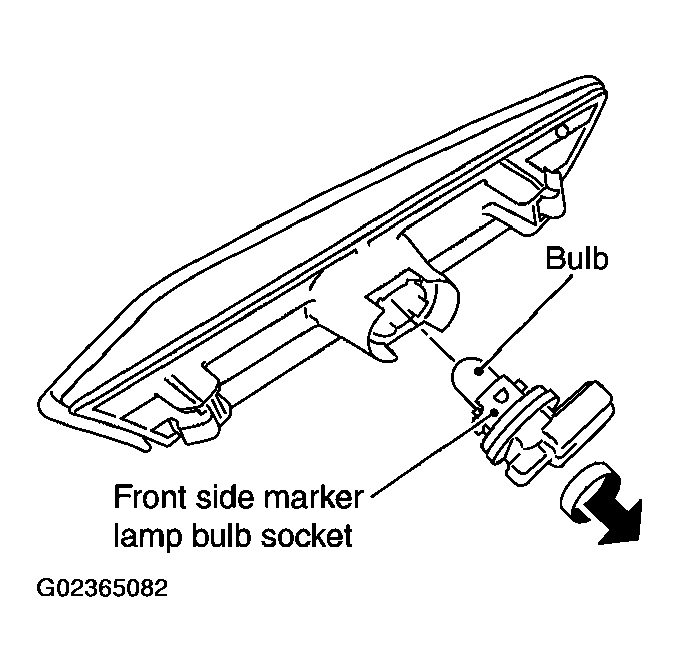

    Fig 1: Removing Front Side Marker Lamp Bulb Socket
    G02365082Courtesy of NISSAN MOTOR CO., U.S.A.
