Wiring Diagram - H/LAMP -

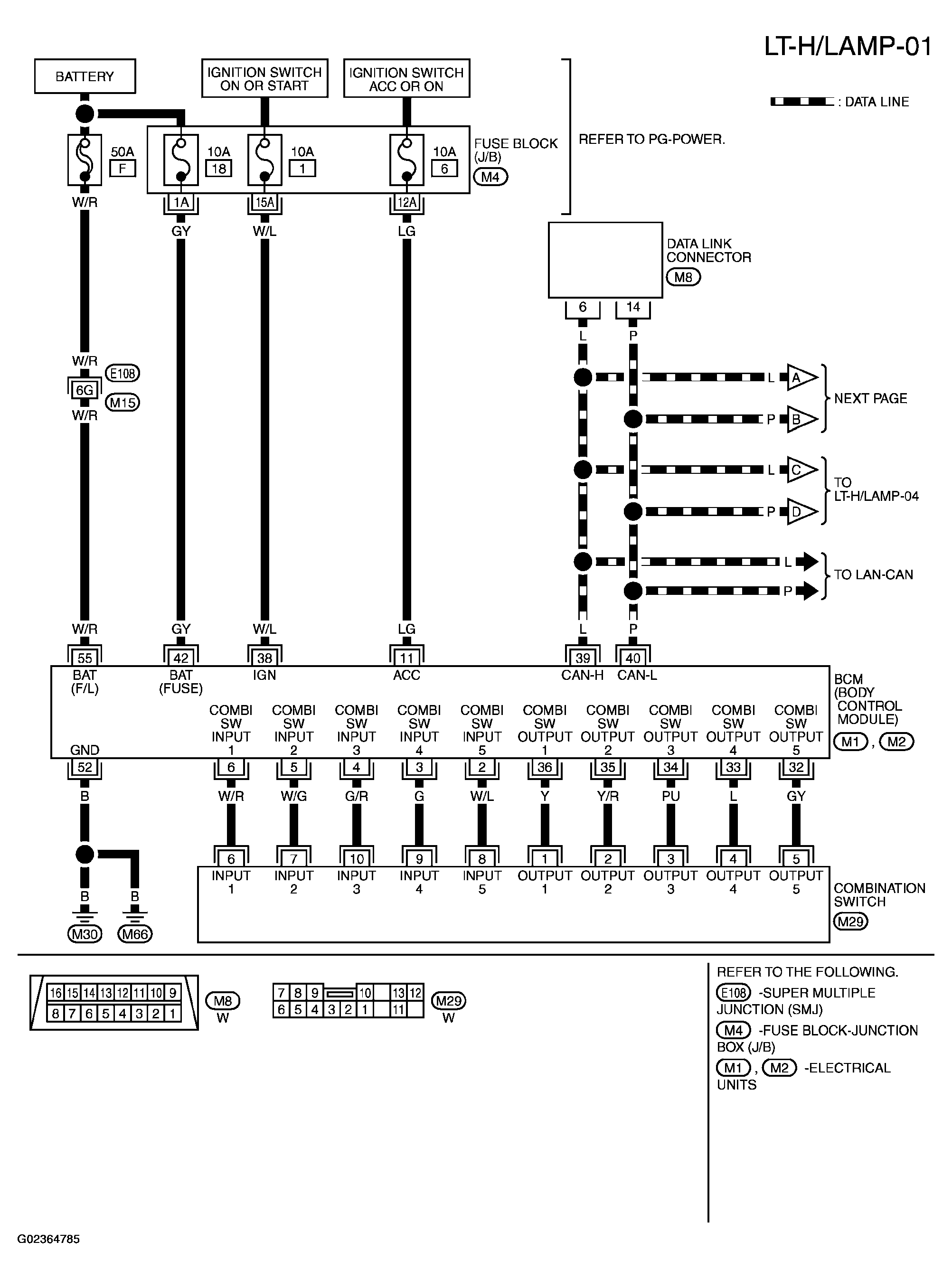

Fig 1: Wiring Diagram - LT-H/LAMP- 01
G02364785Courtesy of NISSAN MOTOR CO., U.S.A.

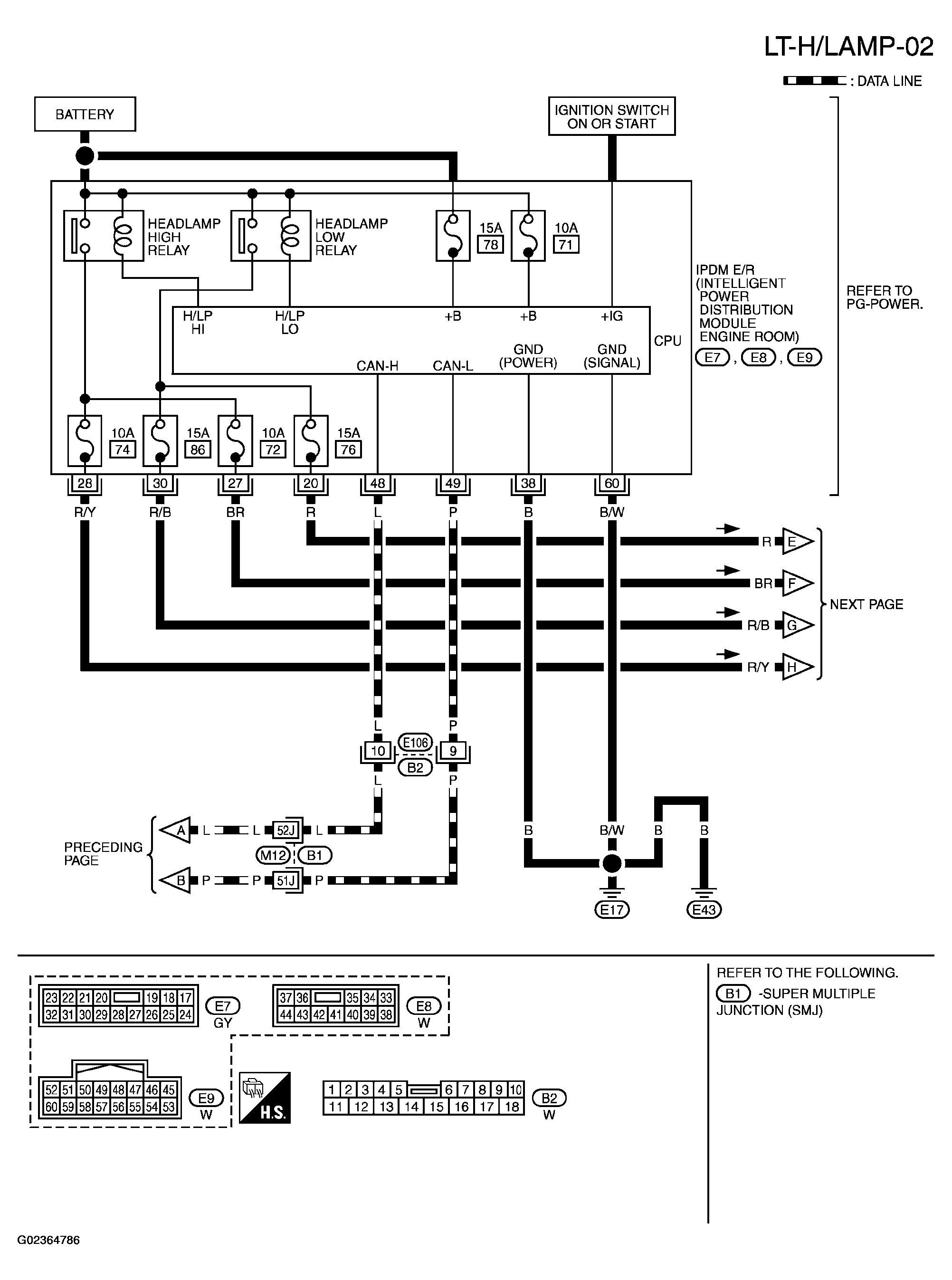

Fig 2: Wiring Diagram - LT-H/LAMP- 02
G02364786Courtesy of NISSAN MOTOR CO., U.S.A.

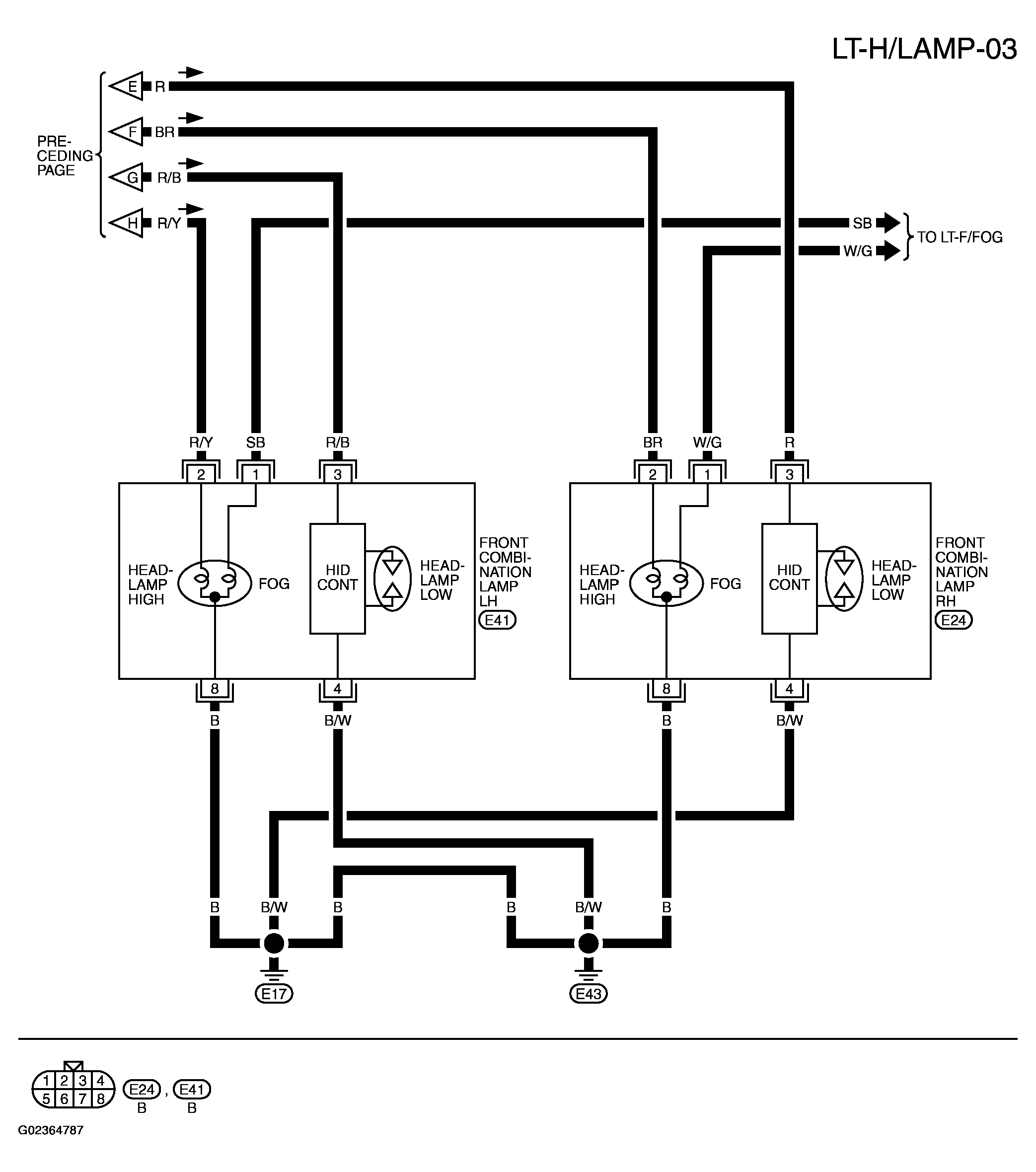

Fig 3: Wiring Diagram - LT-H/LAMP- 03
G02364787Courtesy of NISSAN MOTOR CO., U.S.A.

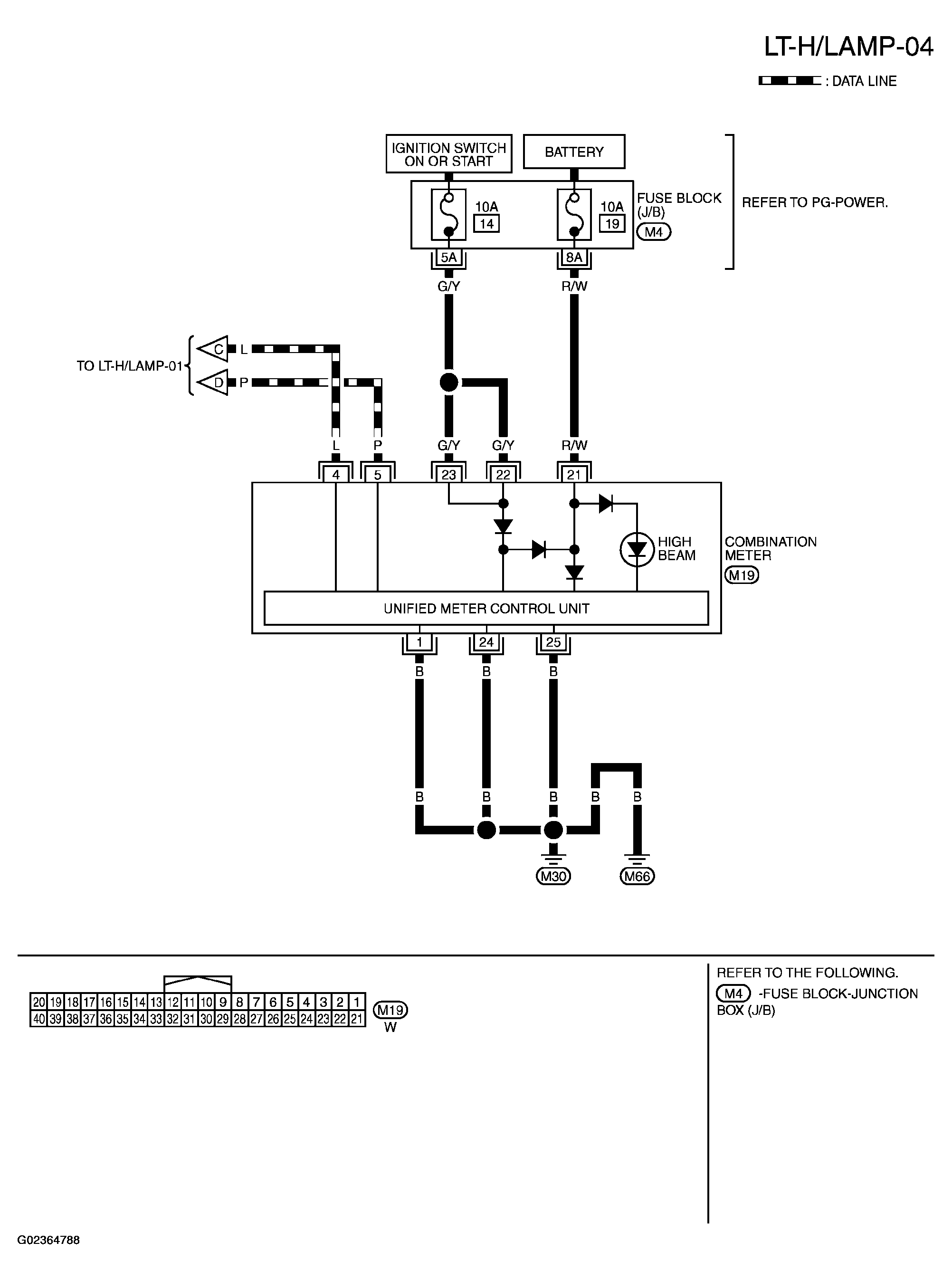

Fig 4: Wiring Diagram - LT-H/LAMP- 04
G02364788Courtesy of NISSAN MOTOR CO., U.S.A.
