Terminals and Reference Values for BCM

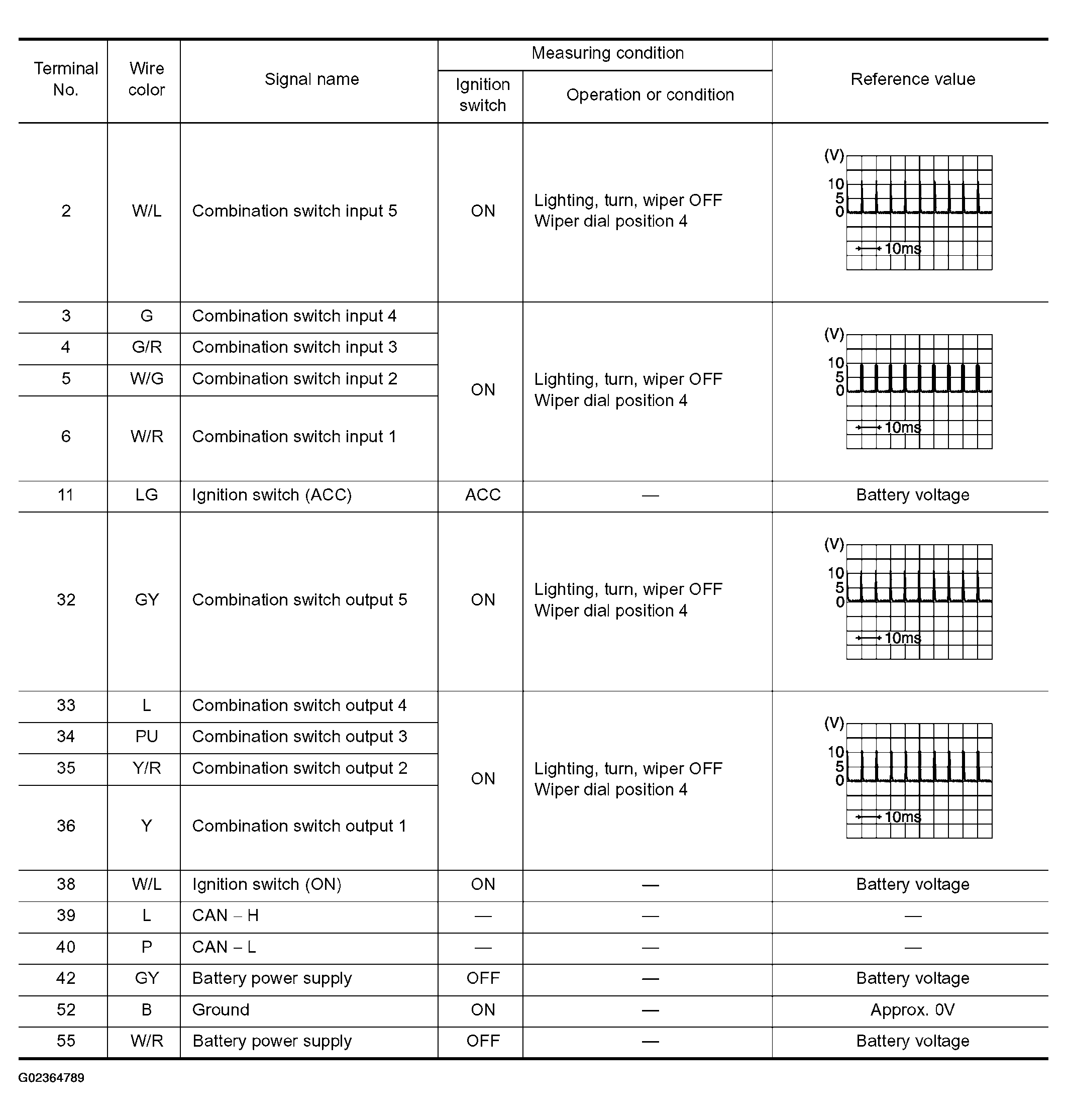

Fig 1: Terminals And Reference Values For BCM

G02364789

Courtesy of NISSAN MOTOR CO., U.S.A.
