Headlamps Does Not Turn OFF

CHECK HEADLAMP TURN OFF
Make sure that lighting switch is OFF. And make sure is headlamp turns off when ignition switch is turned OFF.

OK or NG
1. OK: GO TO 3 .
2. NG: GO TO 2.
CHECK COMBINATION SWITCH INPUT SIGNAL
Select "BCM" on CONSULT-II. With "HEAD LAMP" data monitor, make sure "HEAD LAMP SW 1" and "HEAD LAMP SW 2" turns ON-OFF linked with operation of lighting switch.

When lighting switch is OFF: HEAD LAMP SW 1 OFF

position: HEAD LAMP SW 2 OFF

OK or NG
1. OK: Replace IPDM E/R.
2. NG: Check combination switch (lighting switch). Refer to "COMBINATION SWITCH INSPECTION ".

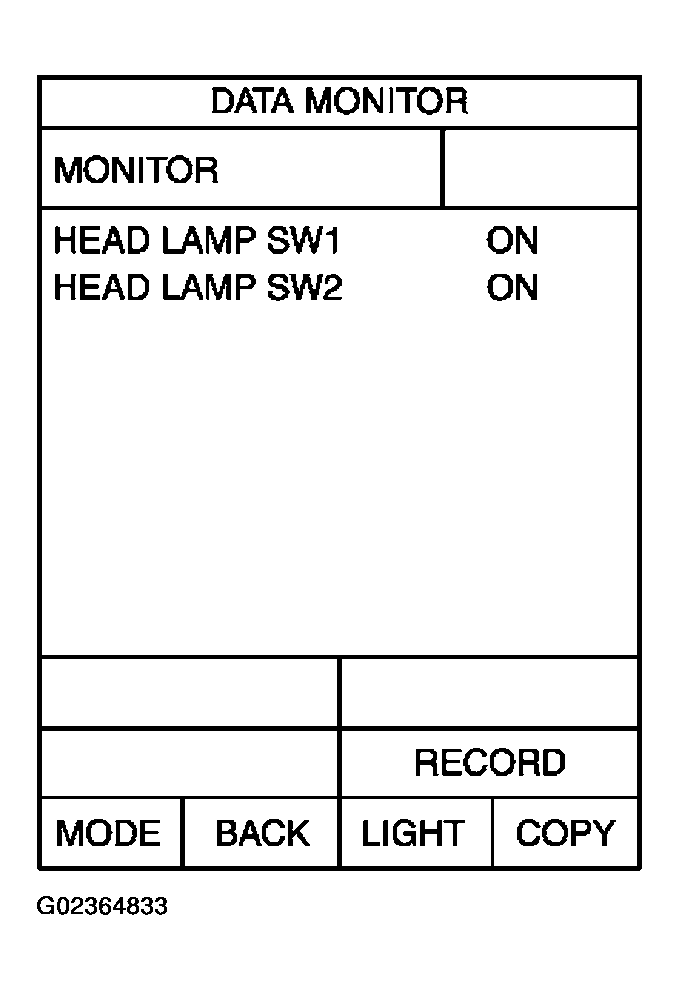

  Fig 1: Locating Data Monitor Display Screen
  Courtesy of NISSAN MOTOR CO., U.S.A.
CHECKING CAN COMMUNICATIONS BETWEEN BCM AND IPDM E/R
Select "BCM" on CONSULT-II, and perform self-diagnosis for "BCM".

Display of self-diagnosis results
1. NO DTC: Replace IPDM E/R.
2. CAN COMM CIRCUIT: Refer to "CAN COMMUNICATION INSPECTION USING CONSULT-II (Self-Diagnosis) ".

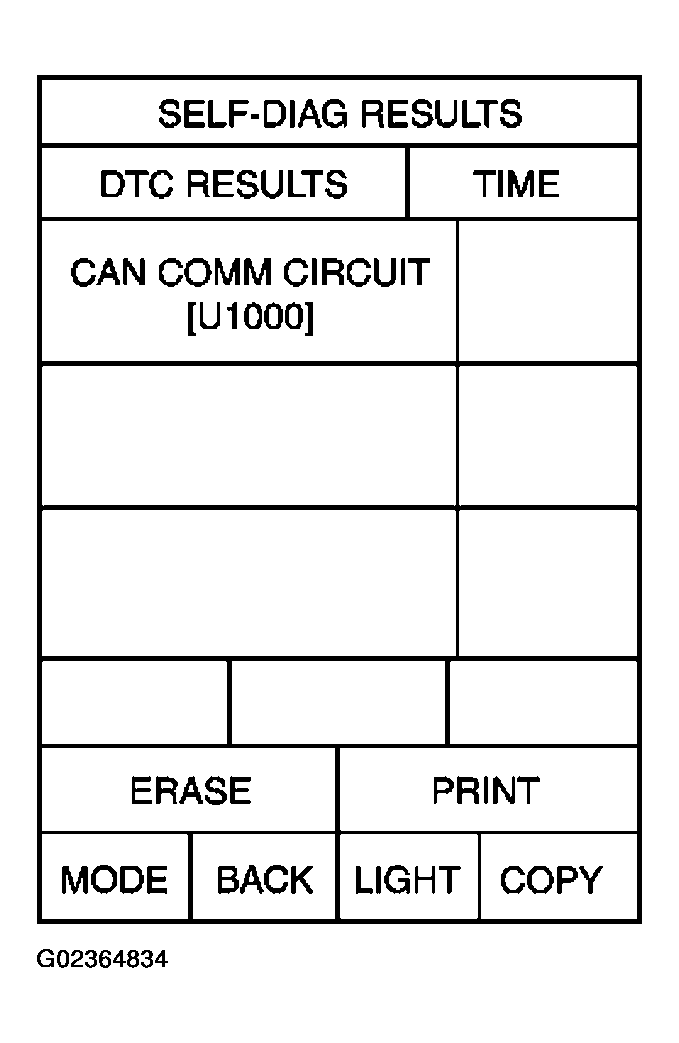

  Fig 2: Locating Self-Diag Results
  Courtesy of NISSAN MOTOR CO., U.S.A.
