Headlamp (For USA): Disassembly

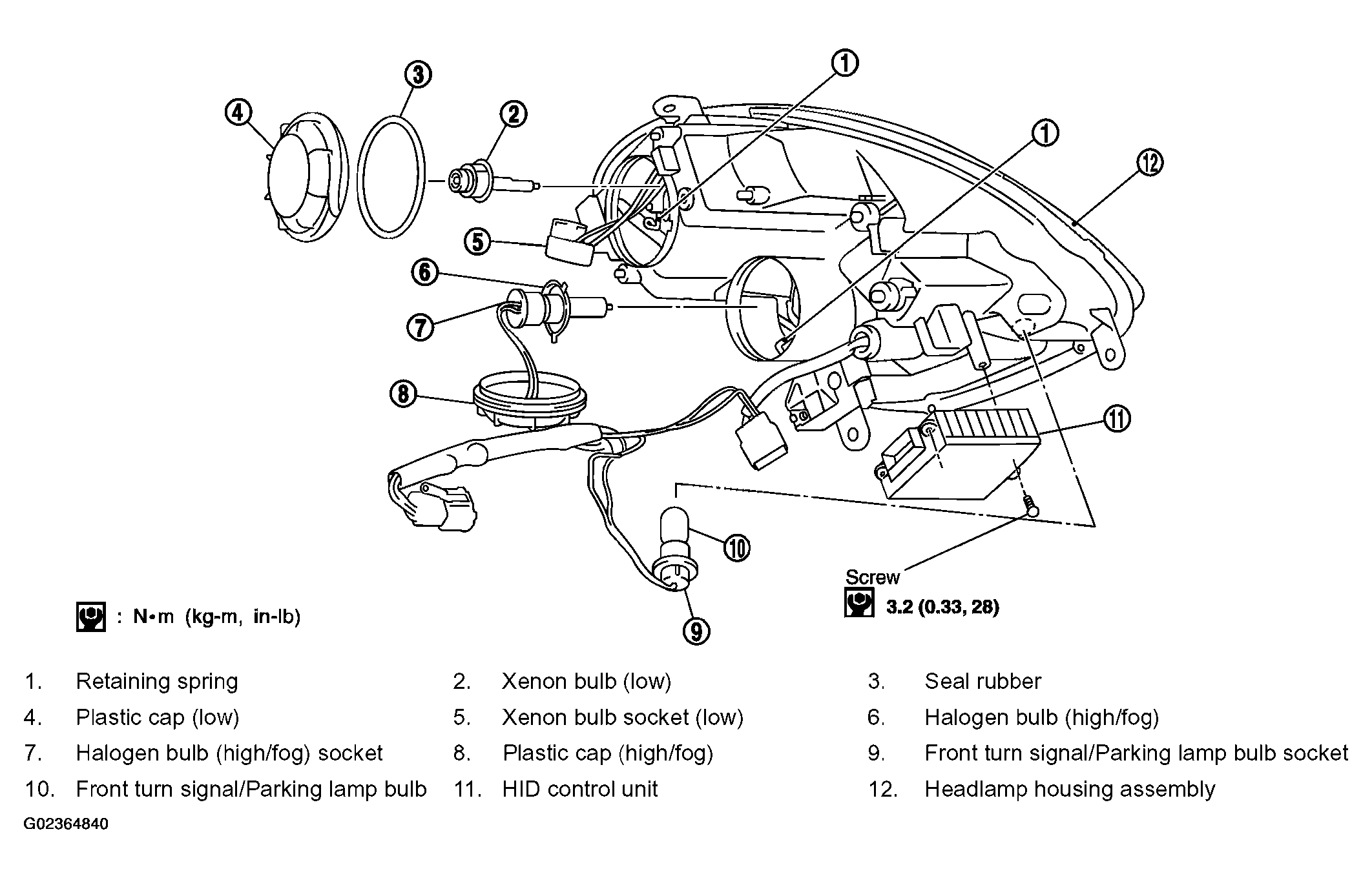

Fig 1: Disassembling Headlamp Assembly With Torque Specifications
G02364840Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Turn plastic cap (low) counterclockwise and unlock it.
  2. Turn xenon bulb (low) socket counterclockwise, and unlock it.
  3. Unlock retaining spring, and remove xenon bulb (low).
  4. Disconnect HID control unit connector, and remove HID control unit screws. (Xenon)
  5. Turn plastic cap (high/fog) counterclockwise, and unlock it.
  6. Disconnect the terminal connected to the halogen bulb (high/fog).
  7. Unlock retaining spring, and remove halogen bulb (high/fog).
  8. Turn front turn signal lamp/parking bulb socket counterclockwise and unlock it.
  9. Remove front turn signal/parking lamp bulb from its socket.
