Headlamp (Upper) Low Beam

  1. Turn lighting switch OFF.
  2. Disconnect the battery cable from the negative terminal or remove power fuse.
  3. Remove headlamp. Refer to "Removal and Installation  ".
  4. Turn plastic cap counterclockwise and unlock it.
  5. Turn bulb socket counterclockwise and unlock it.
  6. Unlock retaining spring and remove bulb from headlamp.
  7. Installation is the reverse order of removal.

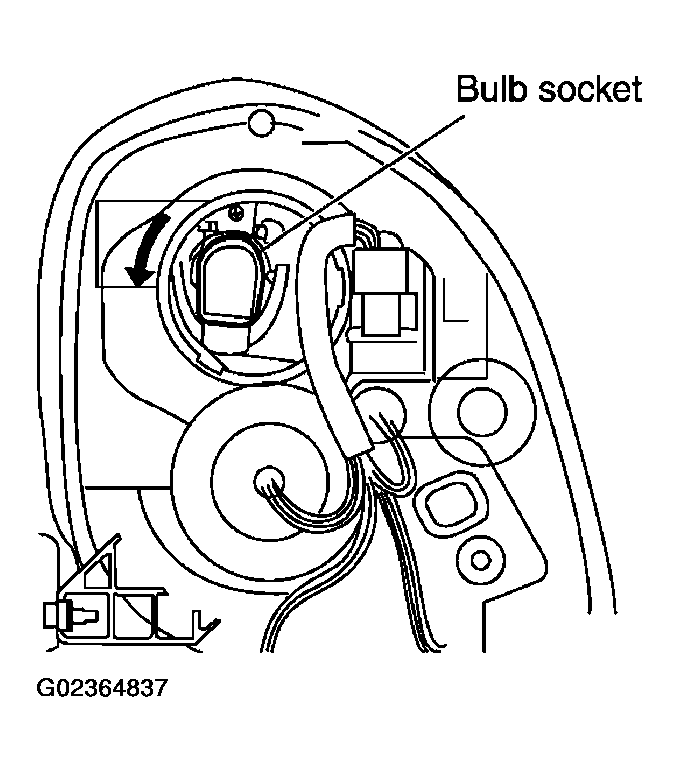

    Fig 1: Locating Unlocking Direction
    G02364837Courtesy of NISSAN MOTOR CO., U.S.A.
