Infiniti
>>
2005
>>
FX35 RWD
>>
Repair and Diagnosis
>>
Electrical
>>
Horns
>>
Wiper, Washer & Horn
>>
Rear Wiper And Washer System
>>
Wiring Diagram - WIP/ R -
Wiring Diagram - WIP/ R -

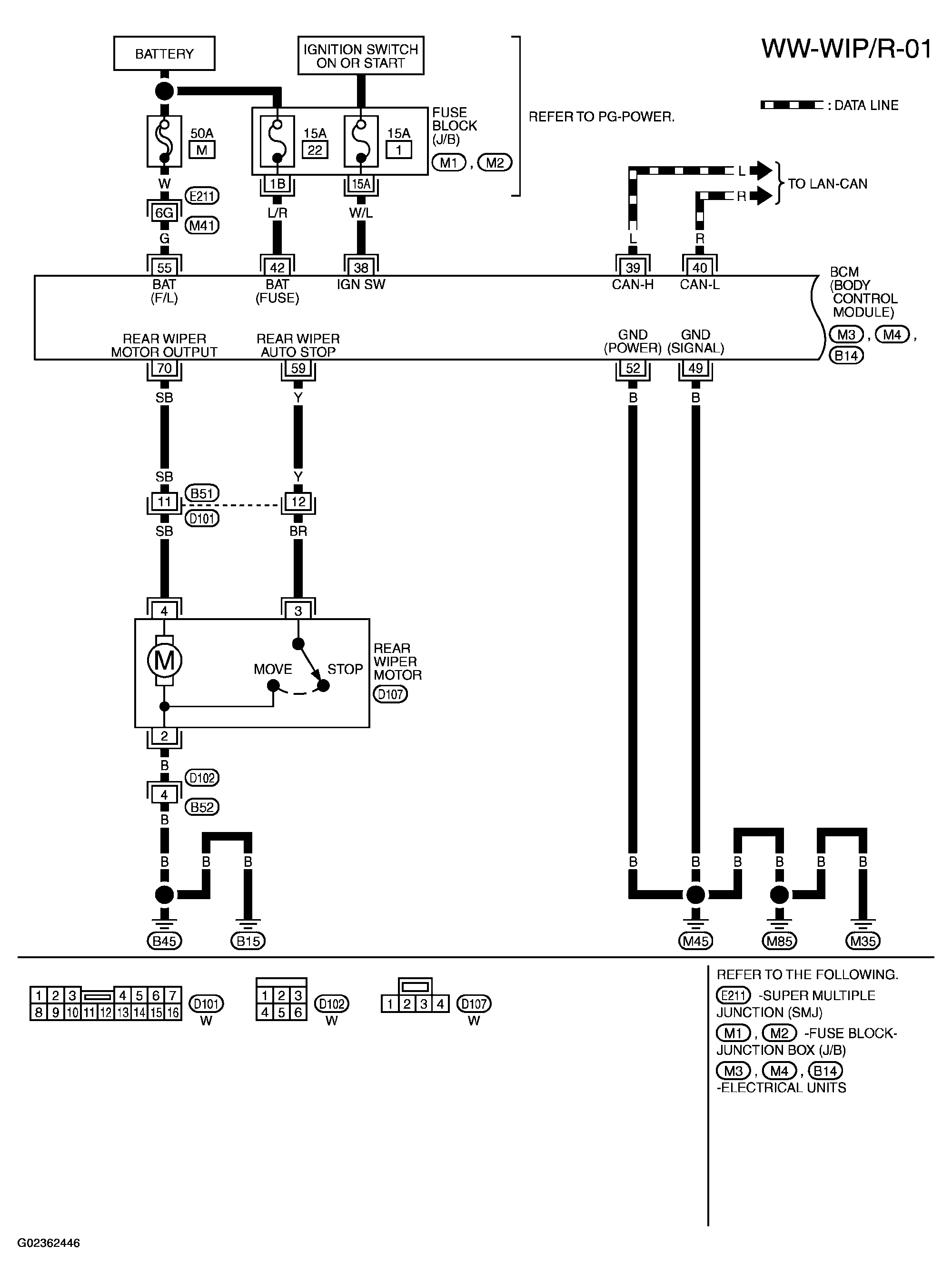

Fig 1: Wiring Diagram - WW-WIP/R-01
Courtesy of NISSAN MOTOR CO., U.S.A.

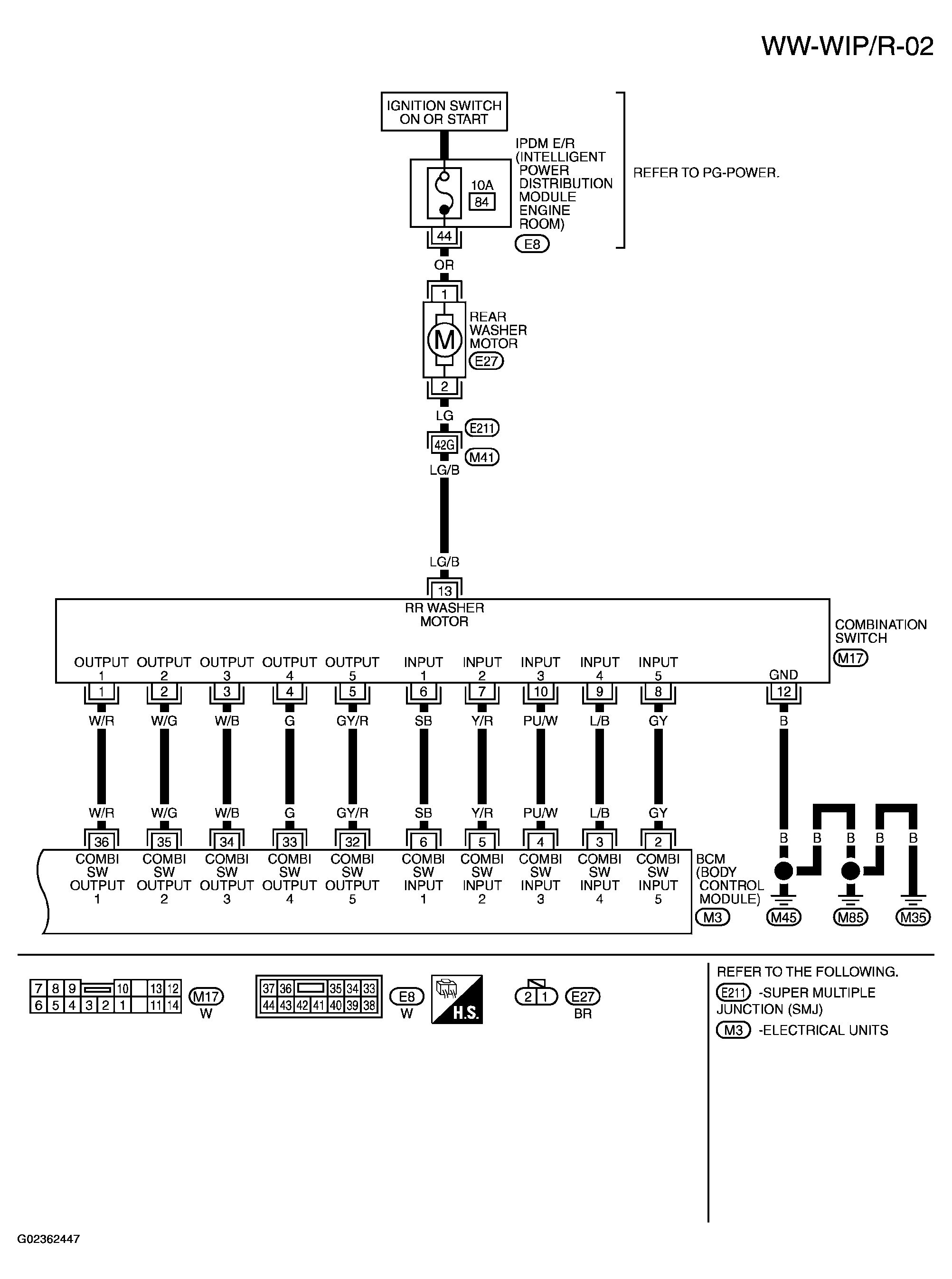

Fig 2: Wiring Diagram - WW-WIP/R-02
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
