Wiring Diagram - WIPER -

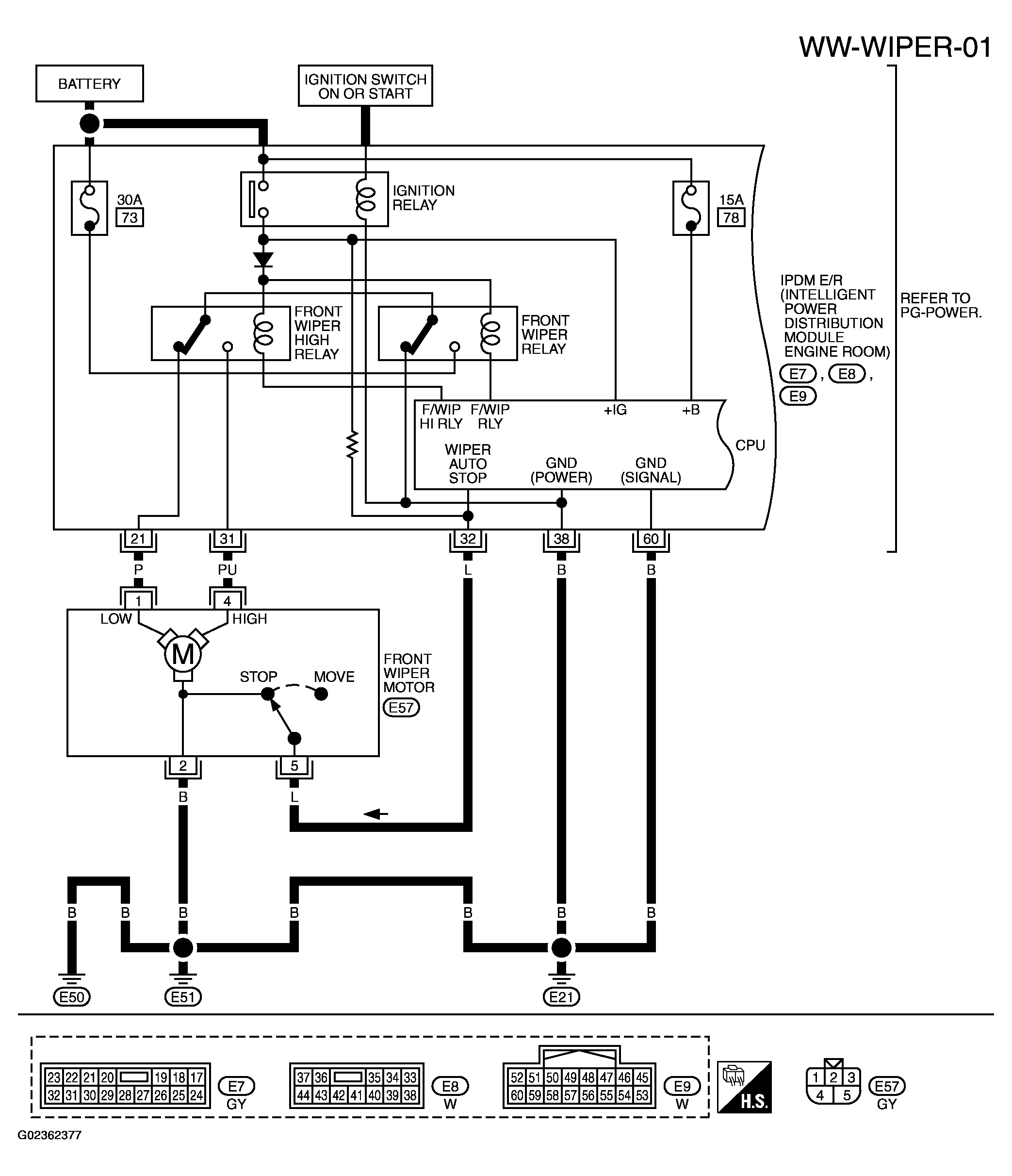

Fig 1: Wiring Diagram - WW-WIPER-01
G02362377Courtesy of NISSAN MOTOR CO., U.S.A.

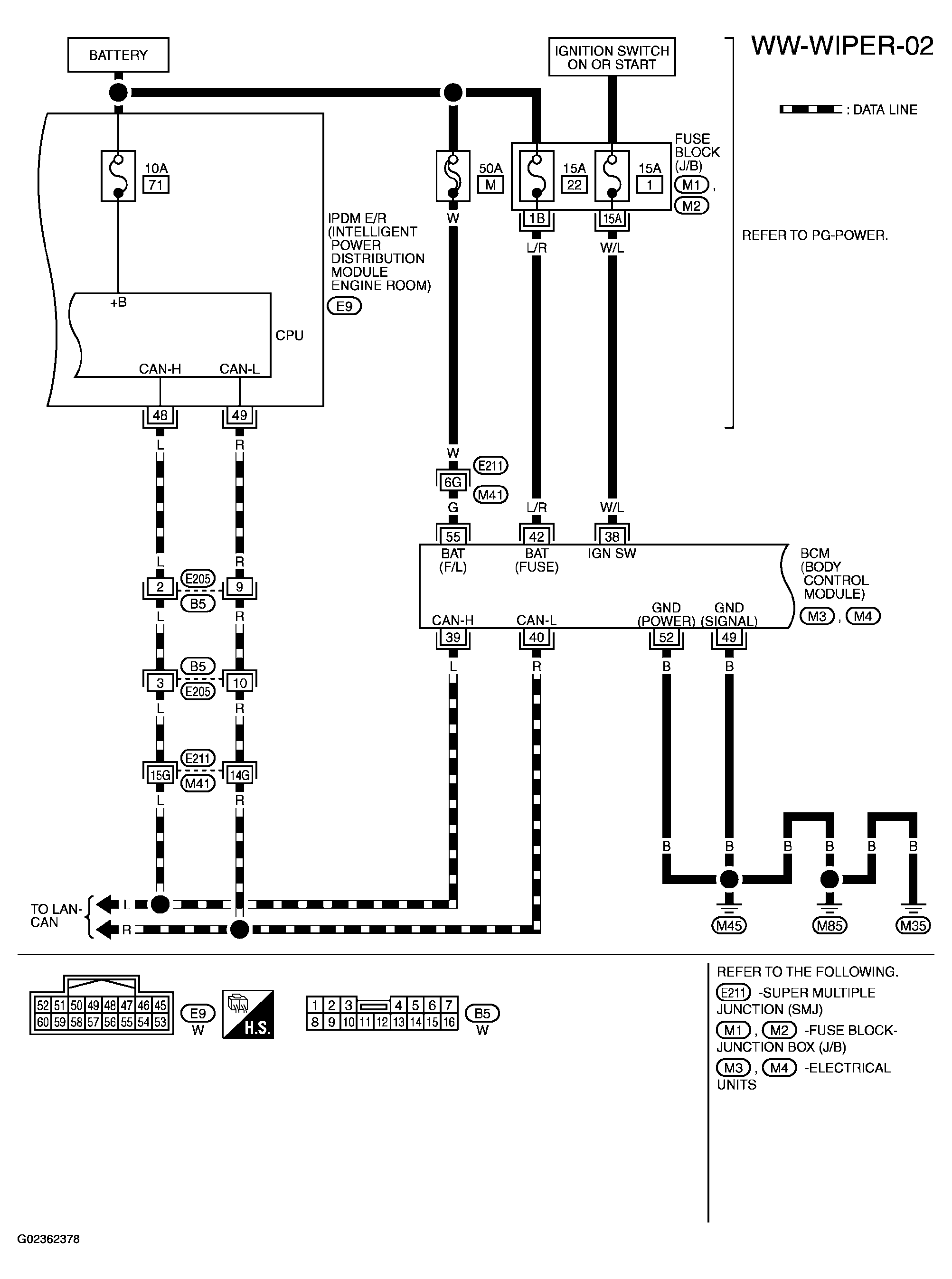

Fig 2: Wiring Diagram - WW-WIPER-02
G02362378Courtesy of NISSAN MOTOR CO., U.S.A.

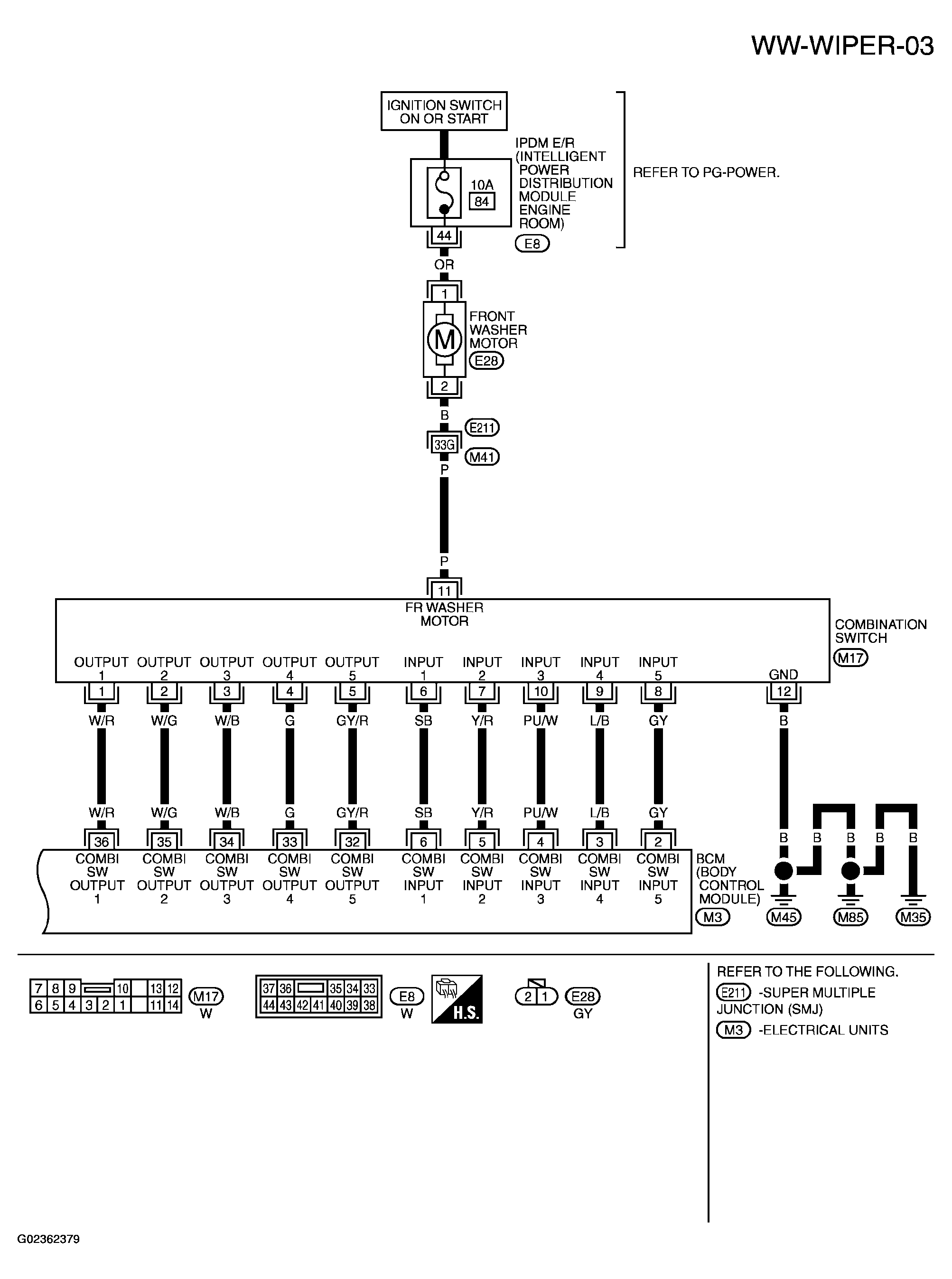

Fig 3: Wiring Diagram - WW-WIPER-03
G02362379Courtesy of NISSAN MOTOR CO., U.S.A.
