Rear Wipers Do Not Stop

With CONSULT-II

1. Select "BCM" on CONSULT-II, and select "WIPER" on "SELECT TEST ITEM" screen.
2. Select "DATA MONITOR" on "SELECT DIAG MODE" screen. Make sure that "RR WIPER INT", "RR WIPER ON", and "RR WASHER SW" turn ON-OFF according to wiper switch operation.

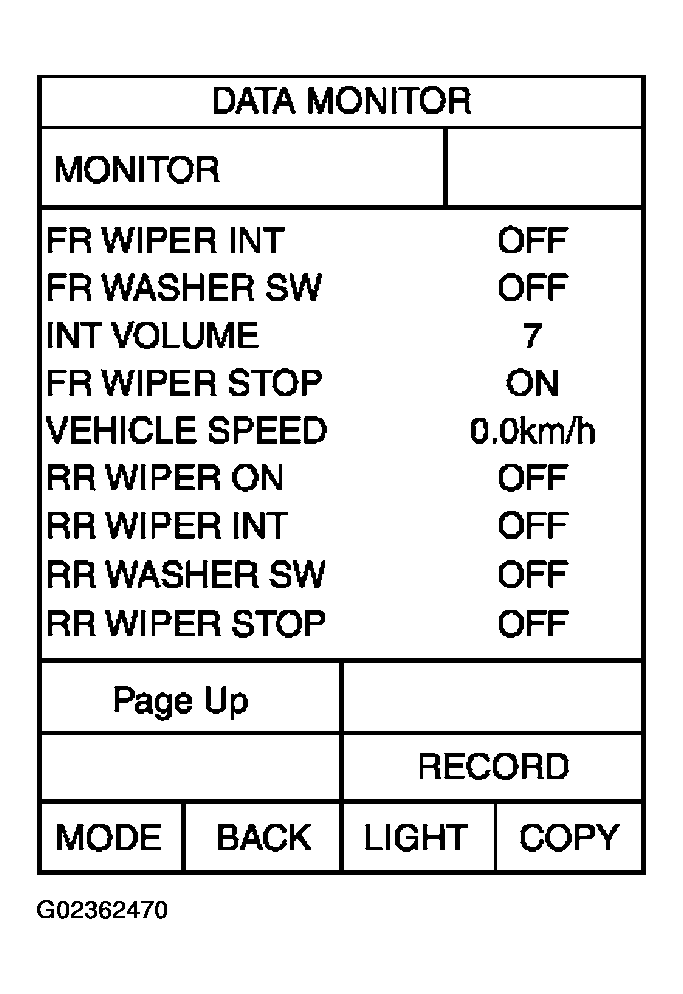

Fig 1: CONSULT-II Diagnosis Function Display

Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Refer to "COMBINATION SWITCH INSPECTION ".

OK or NG

1. OK : Replace BCM. Refer to "REMOVAL AND INSTALLATION OF BCM ".
2. NG : Check combination switch (wiper switch). Refer to "COMBINATION SWITCH INSPECTION ".
