Wiring Diagram - P/SCKT -

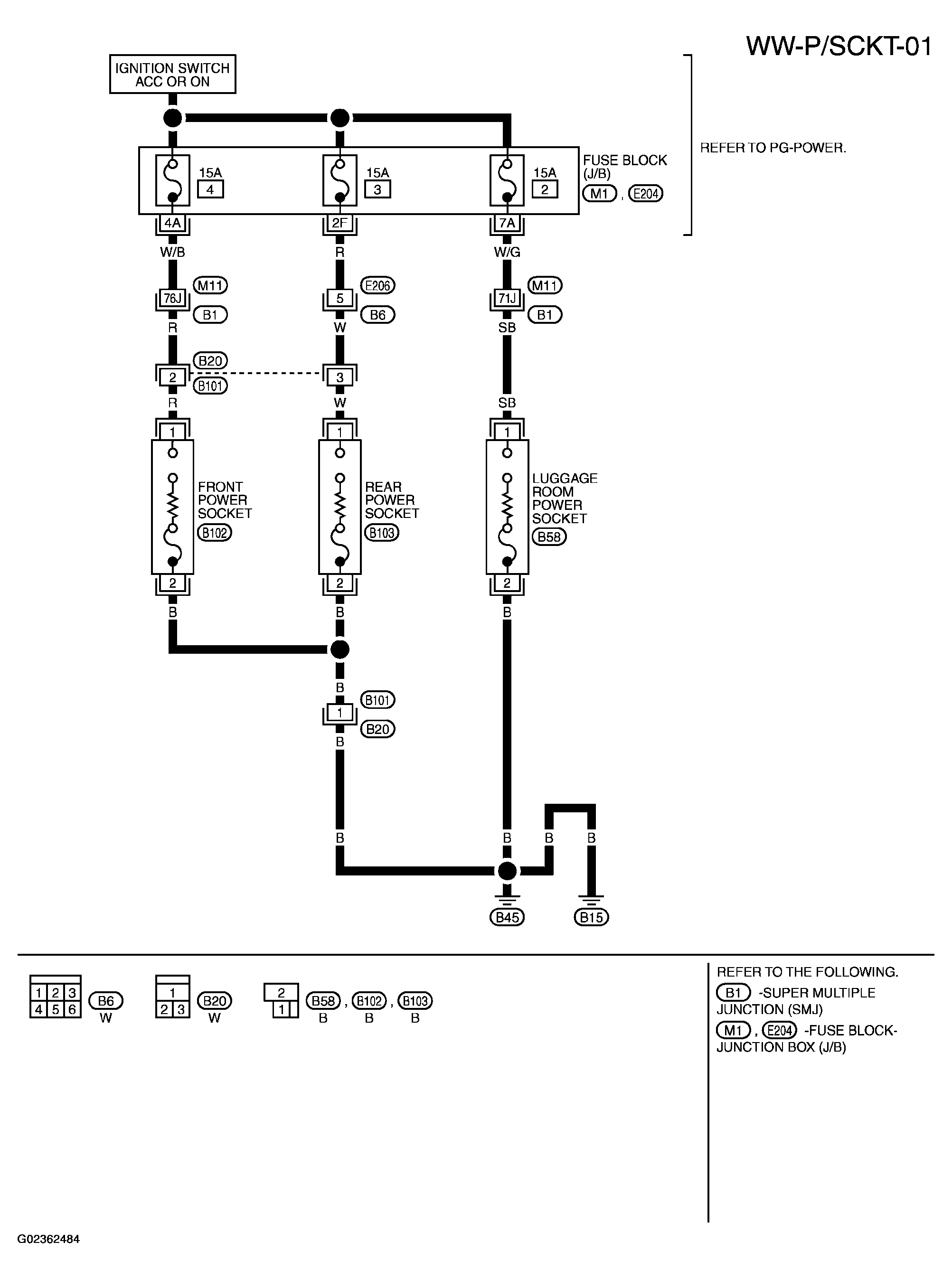

Fig 1: Wiring Diagram - WW-P/SCKT-01

G02362484

Courtesy of NISSAN MOTOR CO., U.S.A.
