Wiring Diagram - HORN -

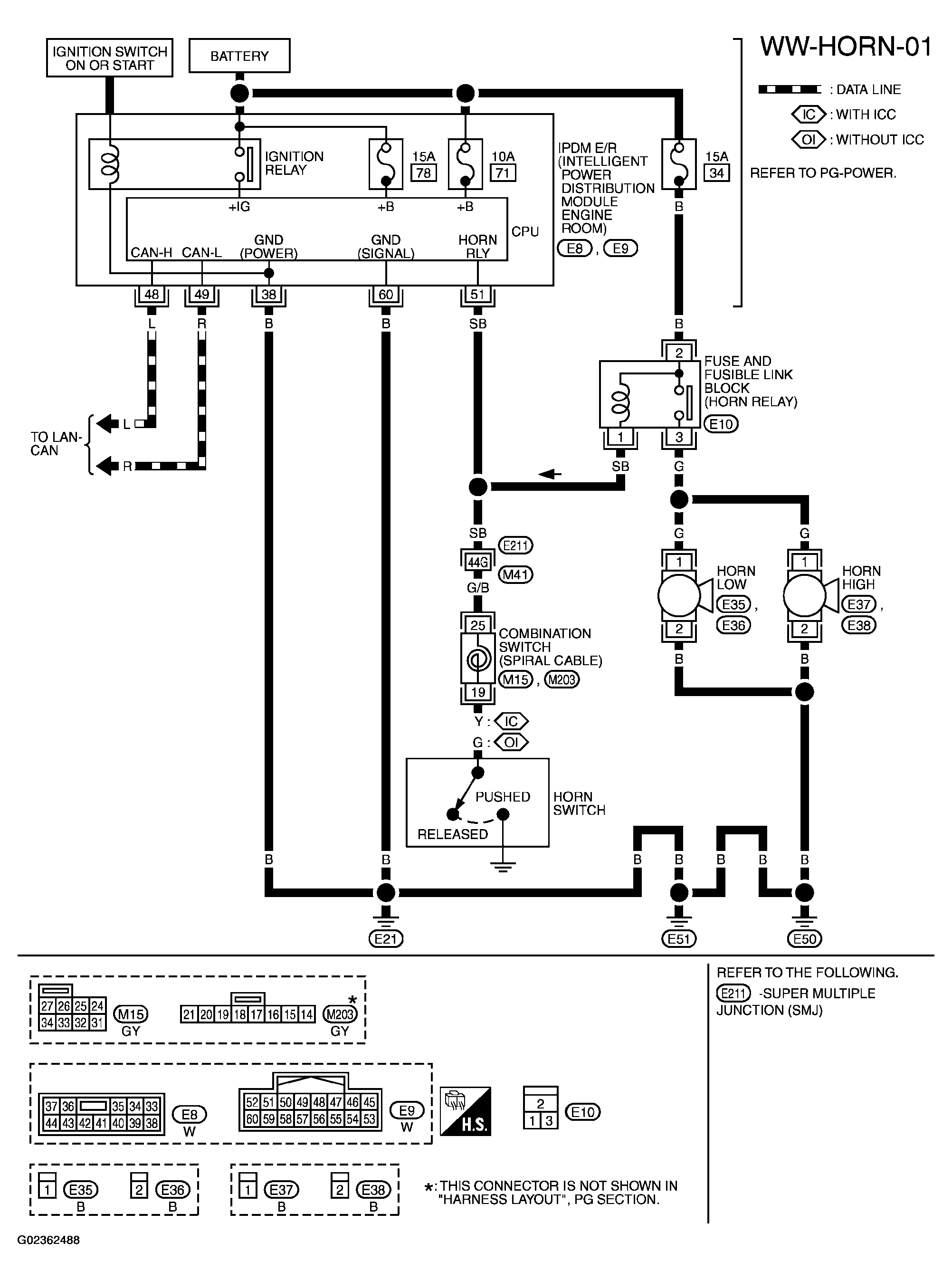

Fig 1: Wiring Diagram - WW-HORN-01

G02362488

Courtesy of NISSAN MOTOR CO., U.S.A.
