Wiper Does Not Wipe When Front Washer Operates

With CONSULT-II

1. Select "BCM" on CONSULT-II, and select "WIPER" on "SELECT TEST ITEM" screen.
2. Select "DATA MONITOR" on "SELECT DIAG MODE" screen. Make sure that "FR WASHER SW" turn ON-OFF according to front wiper switch operation.

Without CONSULT-II

Refer to "COMBINATION SWITCH INSPECTION ".

OK or NG

1. OK : Replace BCM Refer to "REMOVAL AND INSTALLATION OF BCM ".
2. NG : Check front wiper switch. Refer to "COMBINATION SWITCH INSPECTION ".

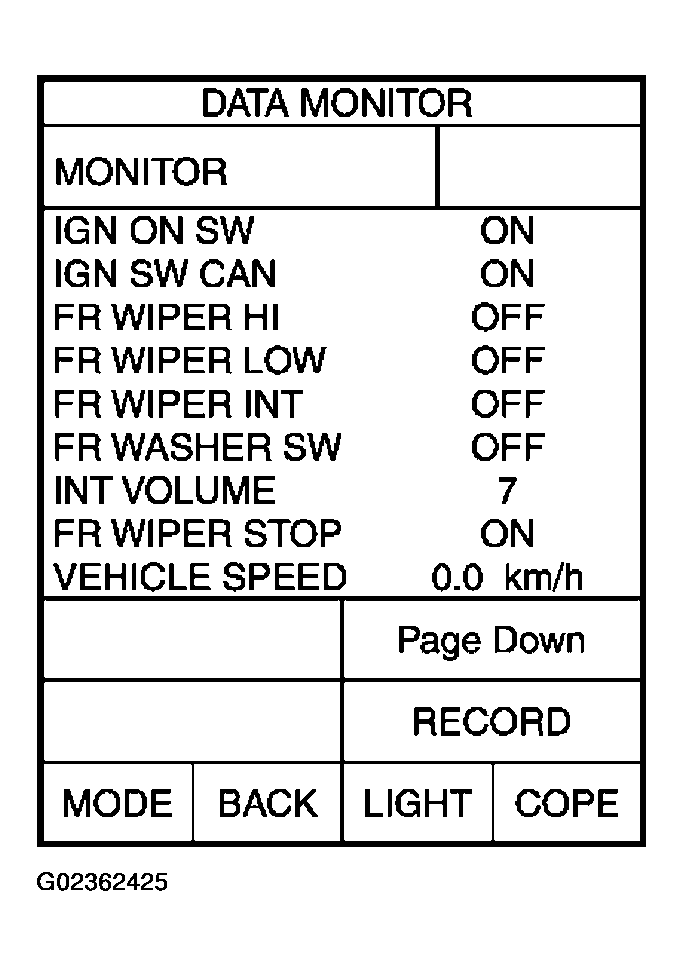

Fig 1: CONSULT-II Diagnosis Function Display (4 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.
