Terminals and Reference Values for IPDM E/R

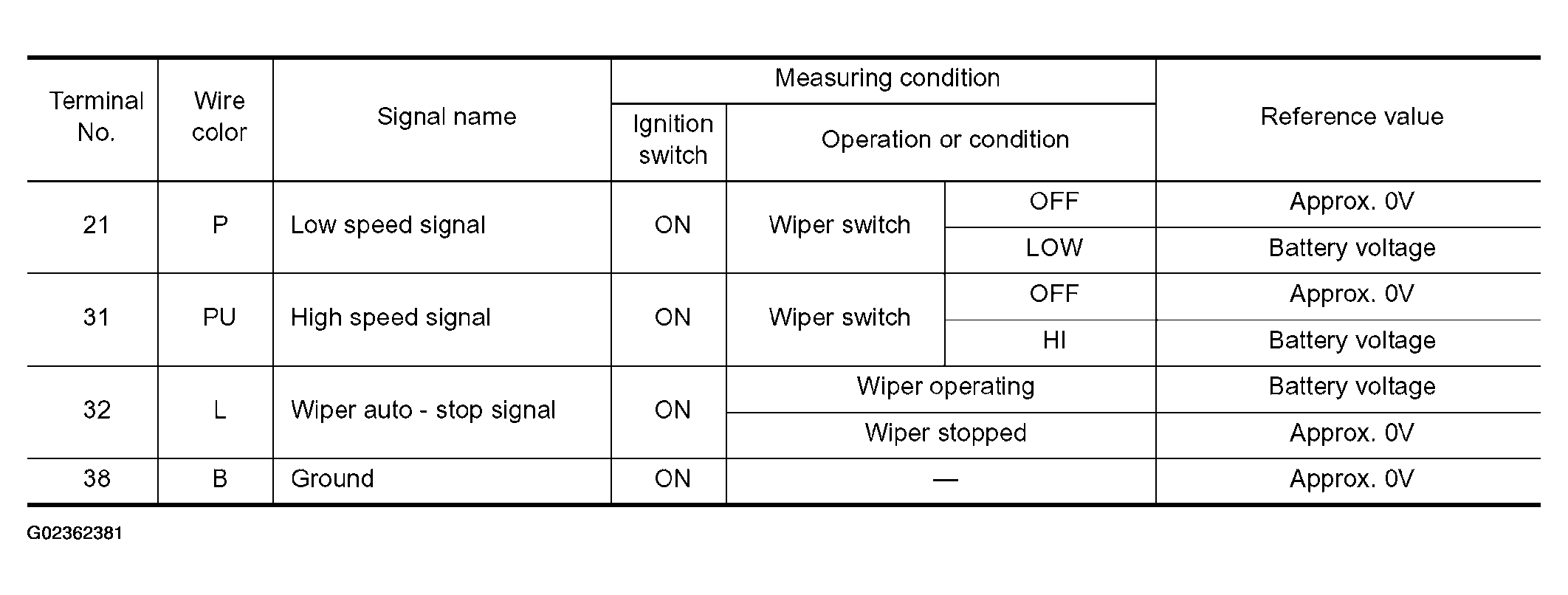

Fig 1: Terminals And Reference Values For IPDM E/R Table (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

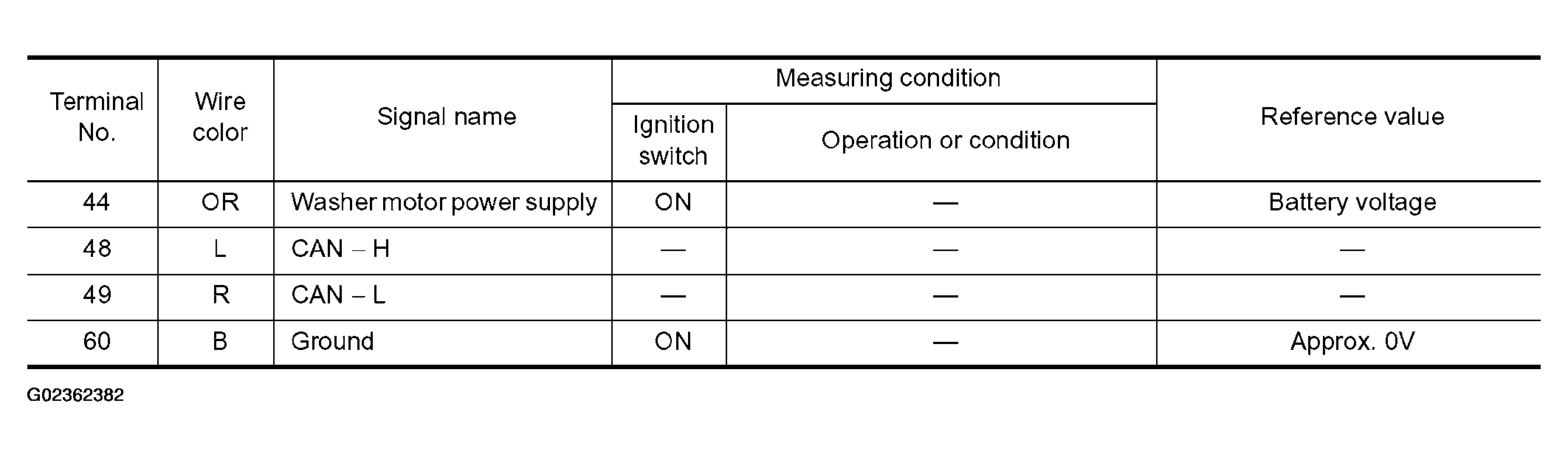

Fig 2: Terminals And Reference Values For IPDM E/R Table (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
