Terminals and Reference Values for BCM

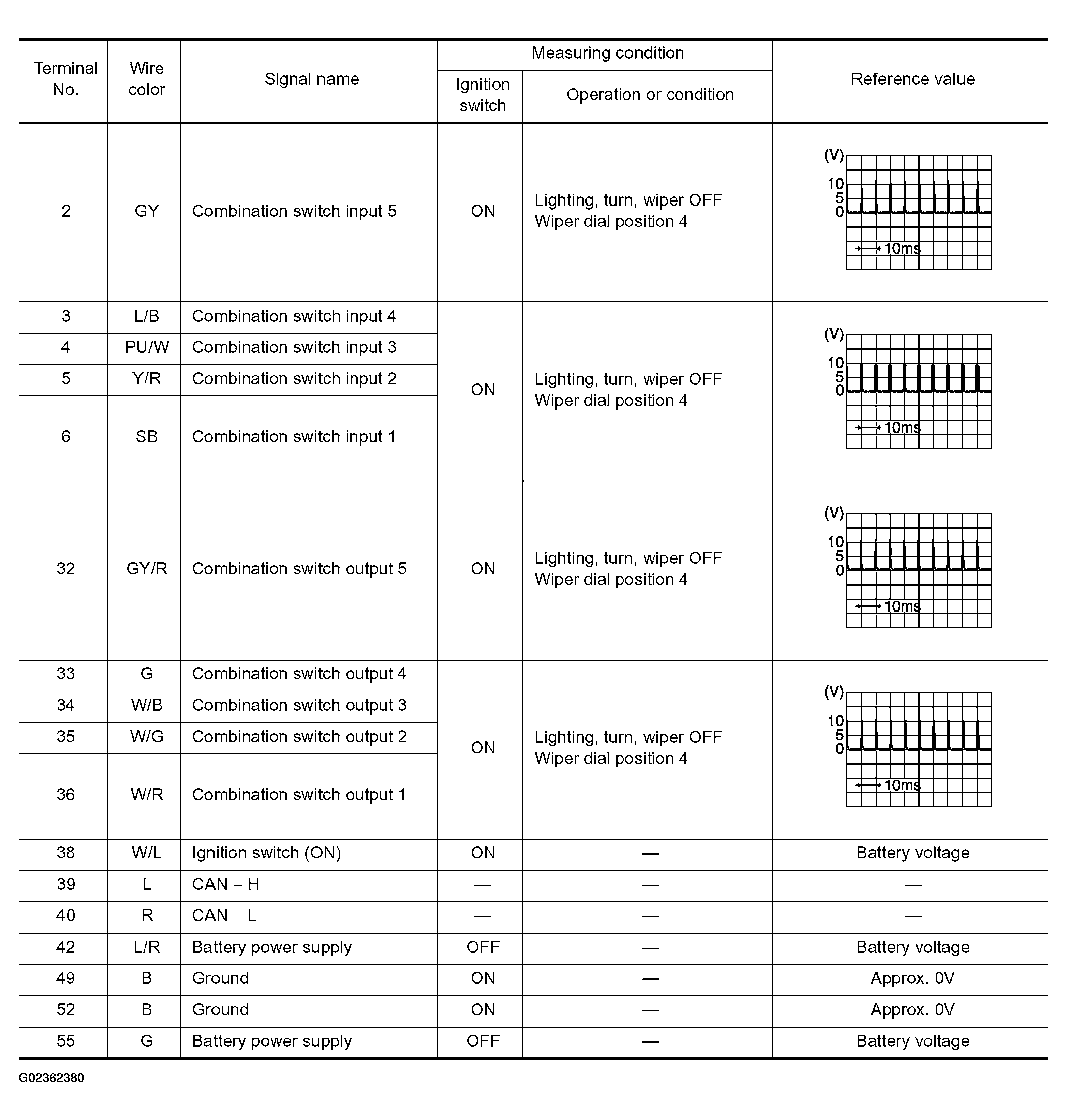

Fig 1: Terminals And Reference Values For BCM Table

G02362380

Courtesy of NISSAN MOTOR CO., U.S.A.
