Front Wiper And Washer System: Schematic

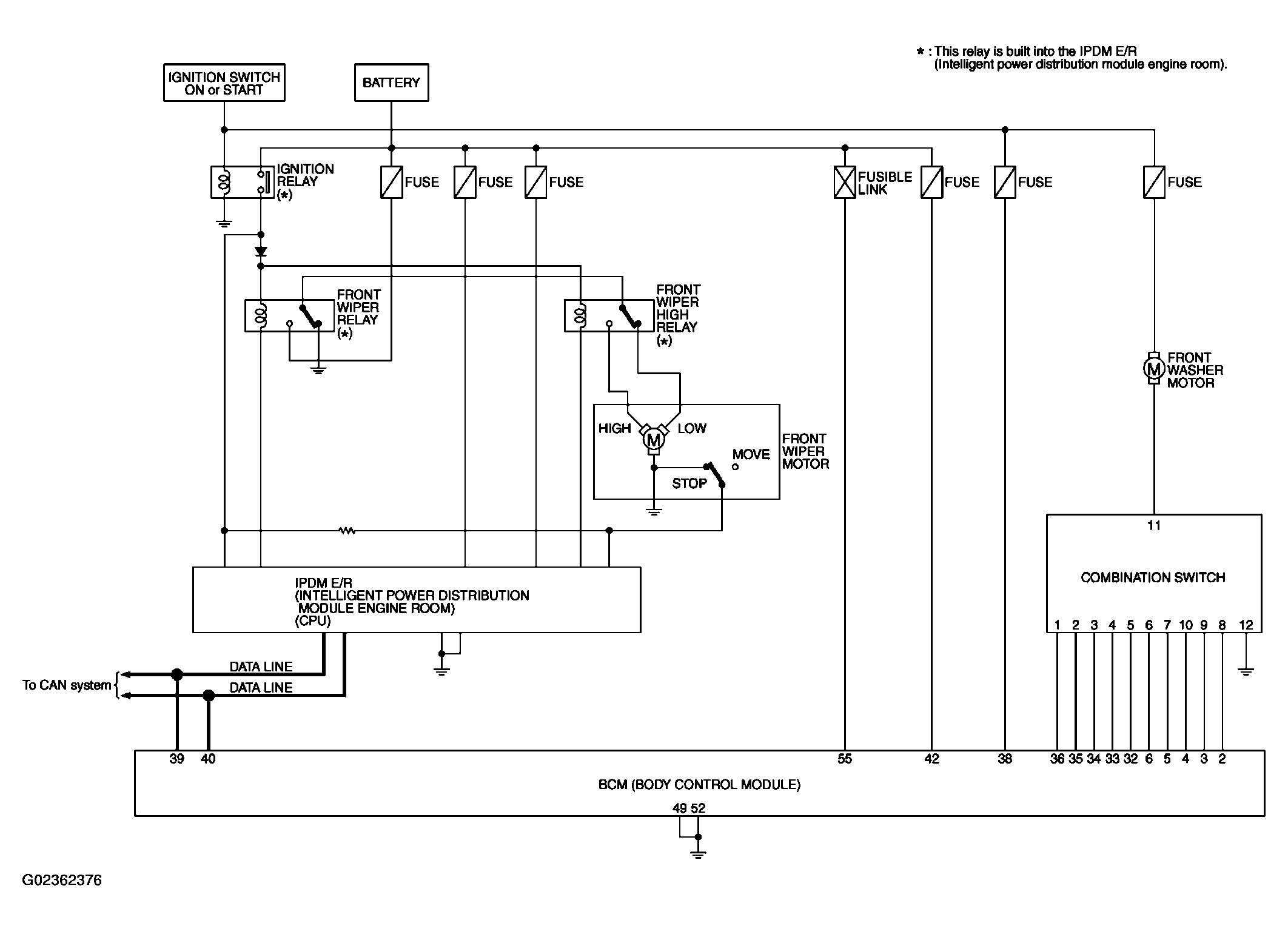

Fig 1: Schematic Diagram
G02362376Courtesy of NISSAN MOTOR CO., U.S.A.
