Front Wiper Does Not Operate

CAUTION:

During IPDM E/R fail-safe control, front wipers may not operate. Refer to "CAN COMMUNICATION LINE CONTROL " in "Power Supply, Ground & Circuit Elements IPDM E/R" to make sure that it is not in fail-safe status.

ACTIVE TEST
With CONSULT-II
1. Select "IPDM E/R" by CONSULT-II, and select "ACTIVE TEST" on "SELECT DIAG MODE" screen.
2. Select "FRONT WIPER" on "SELECT TEST ITEM" screen.
3. Touch "LO" or "HI" screen.
Without CONSULT-II

Start up auto active test. Refer to "AUTO ACTIVE TEST ".

Fig 1: CONSULT-II Diagnosis Function Display
Courtesy of NISSAN MOTOR CO., U.S.A.

Does front wiper operate normally?
1. YES : GO TO 3.
2. NO : GO TO 2.
CHECK FRONT WIPER CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connector and front wiper motor connector.
3. Check continuity between IPDM E/R harness connector and front wiper motor harness connector terminal.

  Fig 2: Continuity Table (1 Of 2)
  Courtesy of NISSAN MOTOR CO., U.S.A.

  Fig 3: Continuity Table (2 Of 2)
  Courtesy of NISSAN MOTOR CO., U.S.A.
4. Check continuity between IPDM E/R harness connector terminal and Ground.

  Fig 4: Checking Continuity Between IPDM E/R Harness Connector And Front Wiper Motor Harness Connector Terminal
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK : GO TO 3.
2. NG : Repair harness or connector.
CHECK GROUND CIRCUIT
Check continuity between front wiper motor harness connector E57 terminal 2 (B) and ground.
1. 2 (B) - Ground : Continuity should exist.
OK or NG
1. OK : GO TO 4.
2. NG : Repair harness or connector.
Fig 5: Checking Continuity Between Terminal 2 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK IPDM E/R
With CONSULT-II
1. Connect IPDM E/R connector and front wiper motor connector.
2. Select "IPDM E/R" by CONSULT-II, and select "ACTIVE TEST" on "SELECT DIAG MODE" screen.
3. Select "FRONT WIPER" on "SELECT TEST ITEM" screen.
4. Touch "LO" or "HI" screen.
5. Check voltage between IPDM E/R harness connector and ground while front wiper (HI, LO) is operating.

  Fig 6: Voltage Table
  Courtesy of NISSAN MOTOR CO., U.S.A.

  Fig 7: Checking Voltage Between Terminal 21, 31 And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
Without CONSULT-II
1. Connect IPDM E/R connector and front wiper motor connector.
2. Start up auto active test. Refer to "AUTO ACTIVE TEST ".
3. Check voltage between IPDM E/R harness connector and ground while front wiper (HI, LO) is operating.

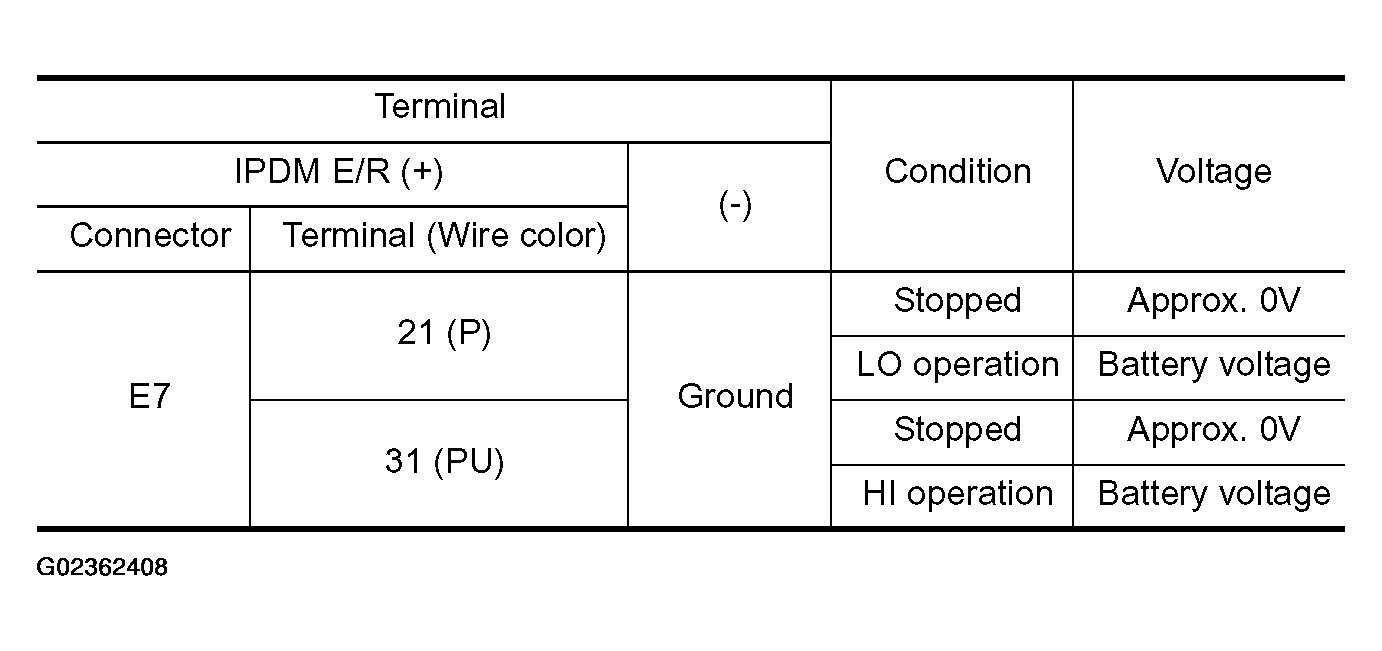

  Fig 8: Voltage Table
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK : Replace front wiper motor.
2. NG : Replace IPDM E/R.
CHECK CIRCUIT BETWEEN COMBINATION SWITCH AND BCM
With CONSULT-II
1. Select "BCM" on CONSULT-II, and select "WIPER" on "SELECT TEST ITEM" screen.
2. Select "DATA MONITOR" on "SELECT DIAG MODE" screen. Make sure that "FR WIPER INT", "FR WIPER LOW", and "FR WIPER HI" turn ON-OFF according to wiper switch operation.
Without CONSULT-II

Refer to "COMBINATION SWITCH INSPECTION ".

OK or NG
1. OK : GO TO 6.
2. NG : Check combination switch (wiper switch). Refer to "COMBINATION SWITCH INSPECTION ".

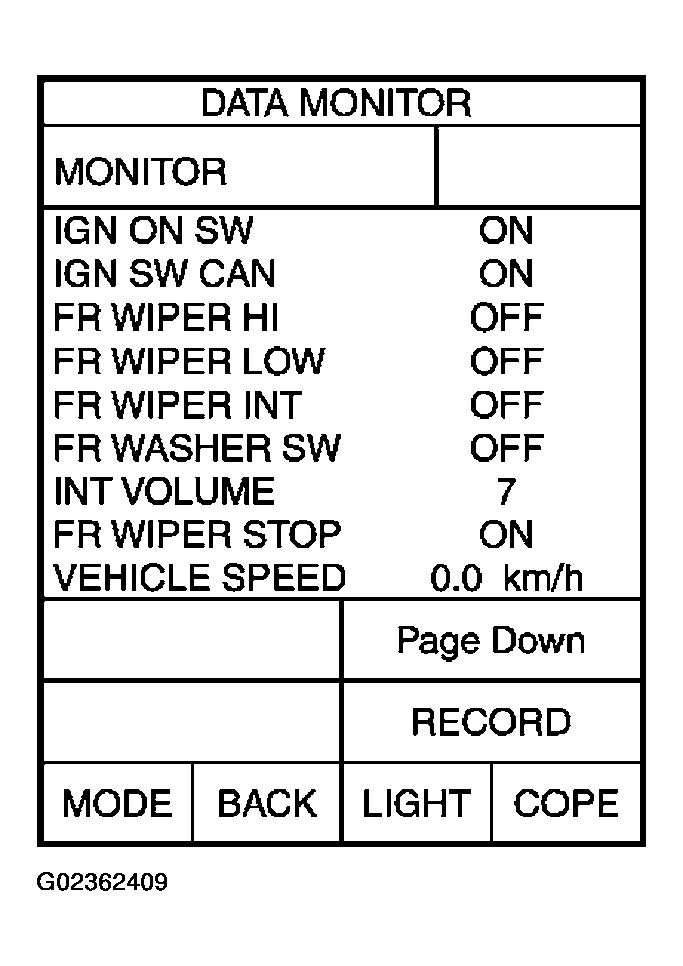

Fig 9: CONSULT-II Diagnosis Function Display (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK CIRCUIT BETWEEN IPDM E/R AND BCM
Select "BCM" on CONSULT-II, and perform self-diagnosis for "BCM".

Displayed self-diagnosis results

NO DTC: Replace BCM. Refer to "REMOVAL AND INSTALLATION OF BCM ".

CAN COMM CIRCUIT: Check CAN communication line of BCM. Refer to "CAN COMMUNICATION INSPECTION USING CONSULT-II (SELF-DIAGNOSIS) ".

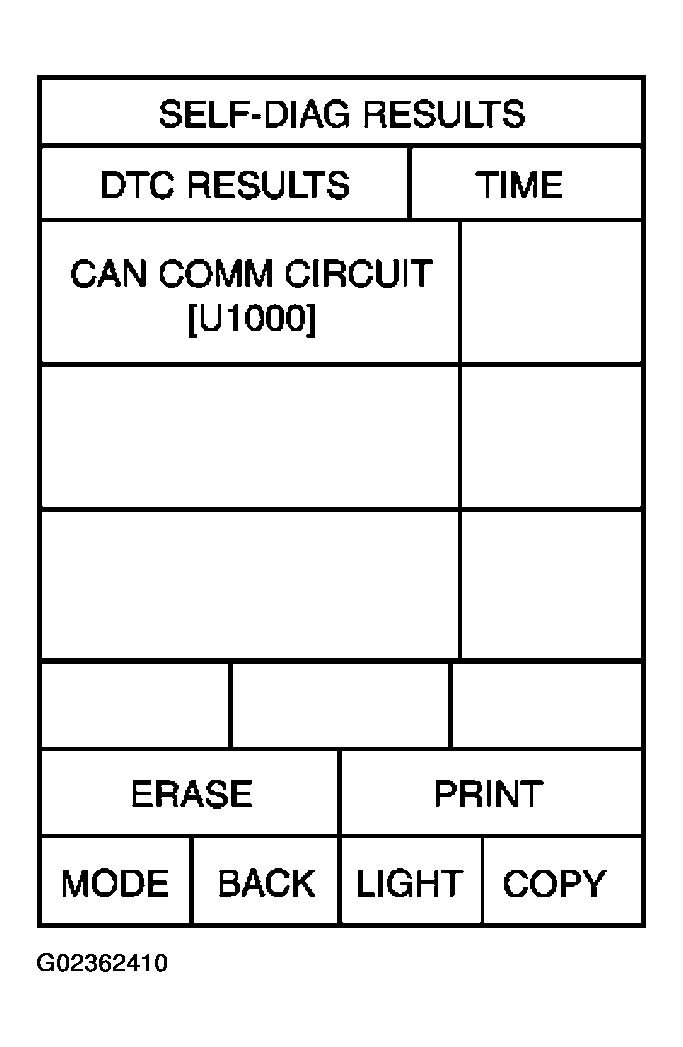

Fig 10: CONSULT-II Diagnosis Function Display (2 Of 3)
