CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.

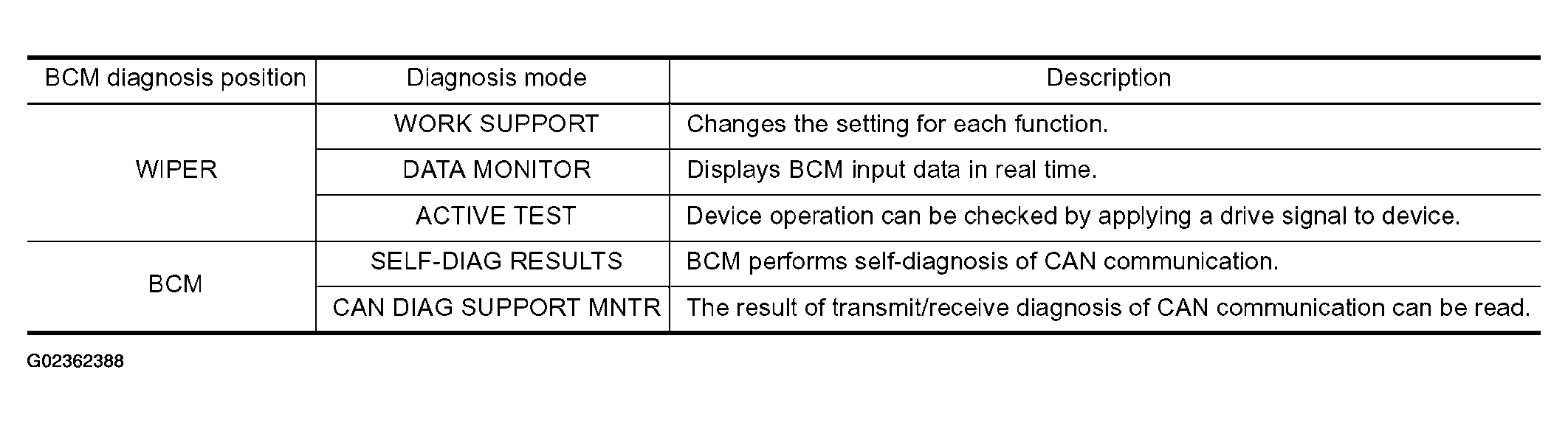

Fig 1: Diagnosis Mode Table

G02362388

Courtesy of NISSAN MOTOR CO., U.S.A.
