After Front Wiper Operate for 10 Seconds, They Stop for 20 Seconds, and After Repeating the Operations Five Times, They Become Inoperative

CAUTION:

When auto-stop signal has not varied for 10 seconds or longer while IPDM E/R is operating front wipers, IPDM E/R considers that front wipers are locked, and stops wiper output. That causes this symptom.
This status can be checked by "DATA MONITOR" of "IPDM E/R" on which "WIPER PROTECTION" item shows "BLOCK".

CHECK WIPER MOTOR SIGNAL
With CONSULT-II

Select "IPDM E/R" by CONSULT-II, With "DATA MONITOR", make sure that "WIP AUTO STOP" turns "ACT P" - "STOP P" linked with wiper operation.

Without CONSULT-II

GO TO 2.

OK or NG
1. OK : Replace IPDM E/R.
2. NG : GO TO 2.

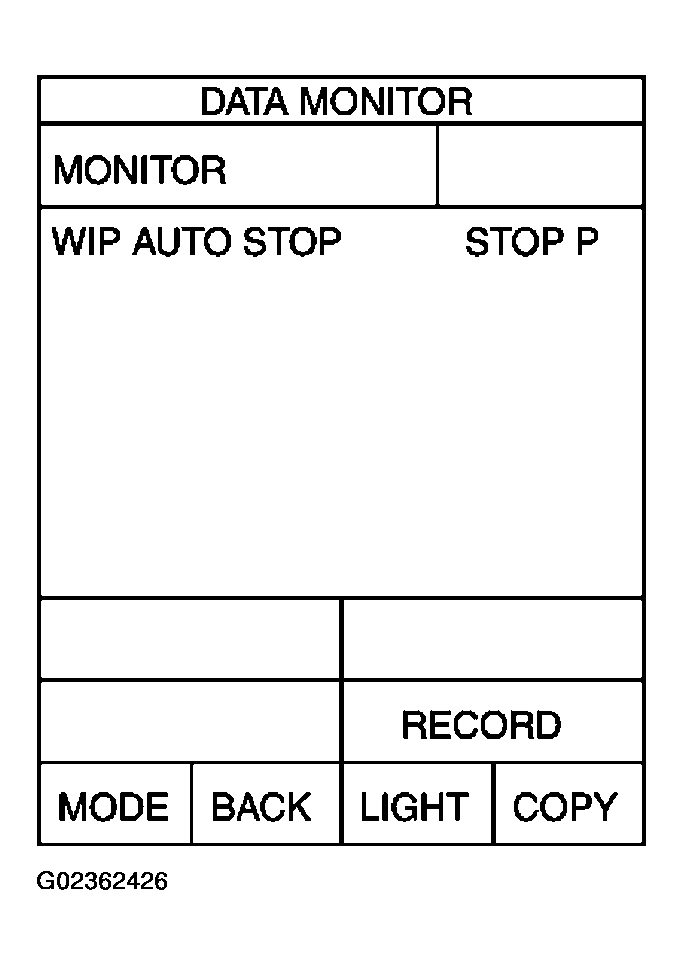

Fig 1: CONSULT-II Diagnosis Function Display
Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK WIPER AUTO STOP CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connector and front wiper motor connector.
3. Check continuity between IPDM E/R harness connector E7 terminal 32 (L) and front wiper motor harness connector E57 terminal 5 (L).
  1. 32 (L) - 5 (L) : Continuity should exist.
4. Check continuity between IPDM E/R harness connector E7 terminal 32 (L) and ground.
  1. 32 (L) - Ground : Continuity should not exist.

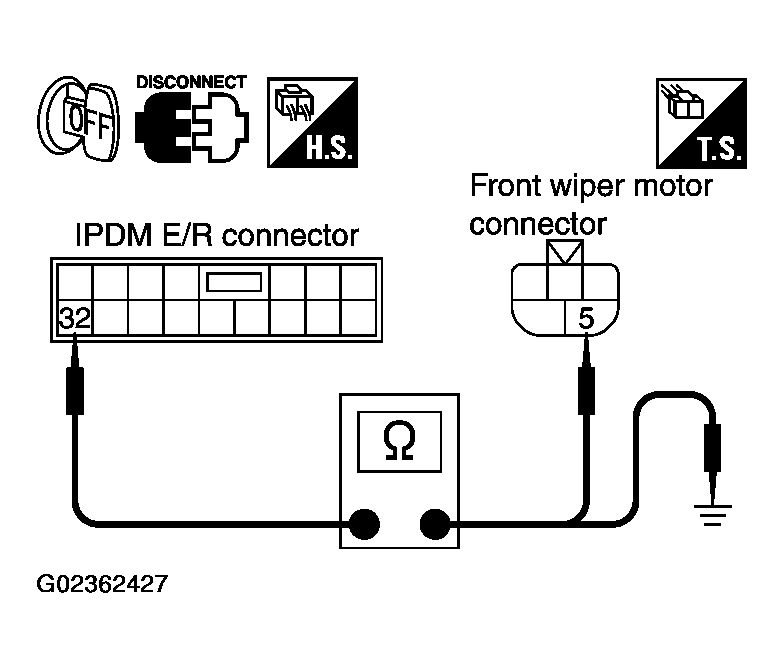

Fig 2: Checking Continuity Between Terminal 32 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK : GO TO 3.
2. NG : Repair harness or connector.
CHECK FRONT WIPER MOTOR
1. Connect IPDM E/R connector and front wiper connector.
2. Turn ignition switch ON.
3. Check voltage between IPDM E/R harness connector E7 terminal 32 (L) and ground while front wiper motor is stopped and while it is operating.

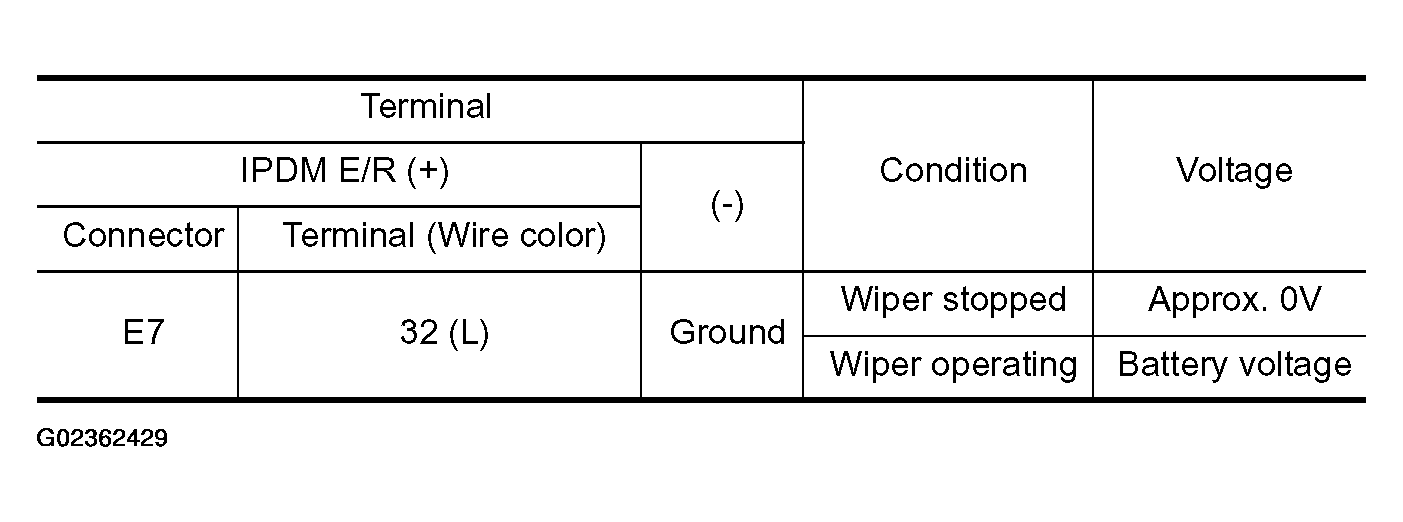

  Fig 3: Voltage Table
  Courtesy of NISSAN MOTOR CO., U.S.A.

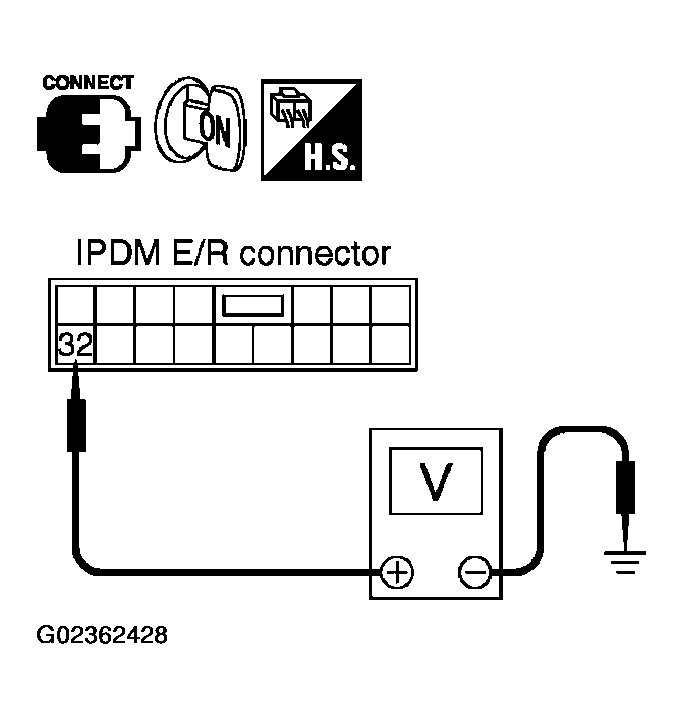

  Fig 4: Checking Voltage Between Terminal 32 And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK : Replace IPDM E/R.
2. NG : Replace front wiper motor.
