Home >> Infiniti >> 2005 >> FX35 RWD >> Repair and Diagnosis >> Accessories & Equipment >> Horns >> Wiper, Washer & Horn >> Cigarette Lighter >> Wiring Diagram - CIGAR -

Wiring Diagram - CIGAR -

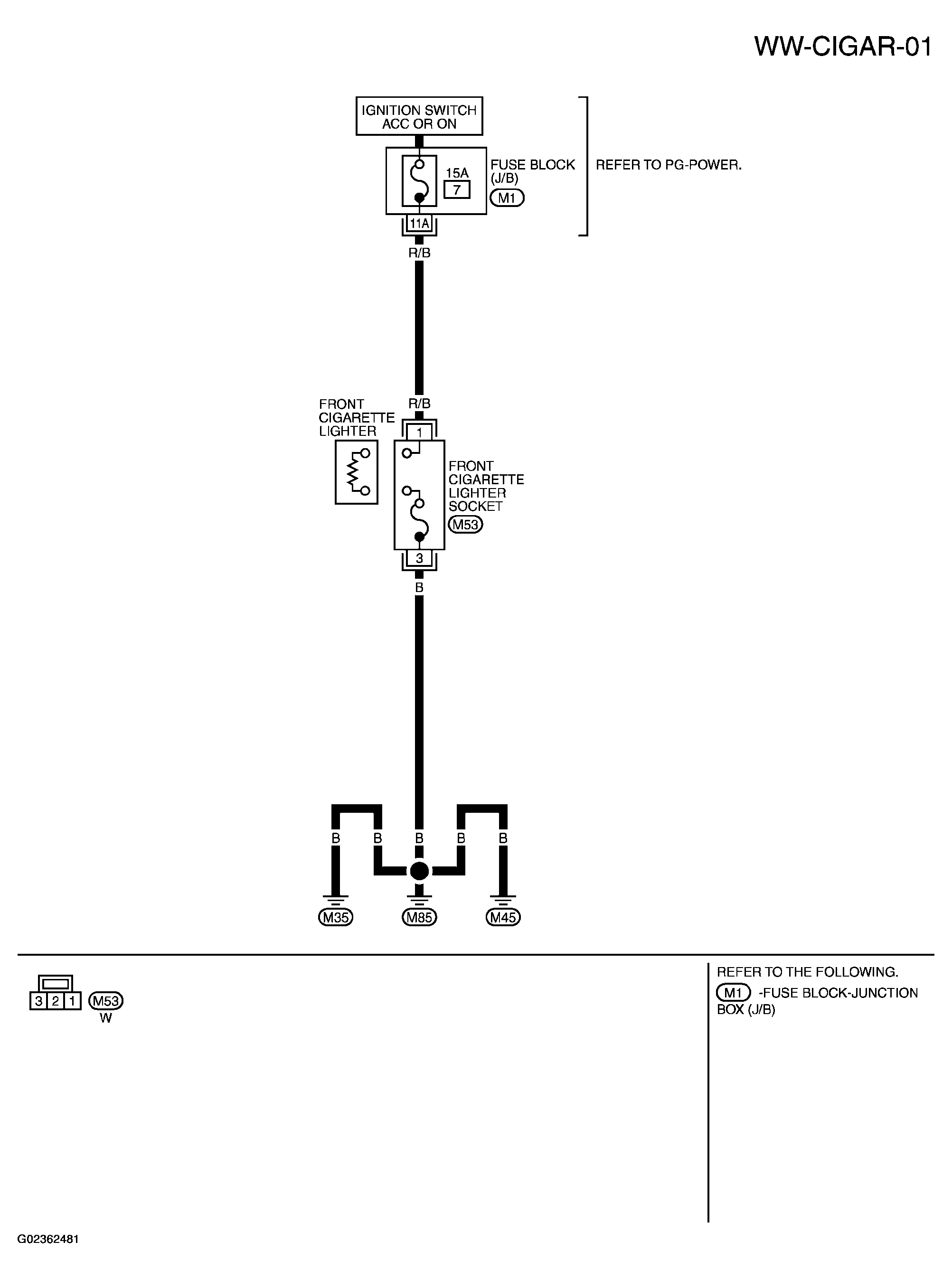

Fig 1: Wiring Diagram - WW-CIGAR-01

G02362481

Courtesy of NISSAN MOTOR CO., U.S.A.
