Changing Spark Plugs: Removal

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the harness connector from the ignition coil.
  2. Remove the ignition coil. Refer to "IGNITION COIL ".
  3. Remove the spark plug(s) using a suitable tool.

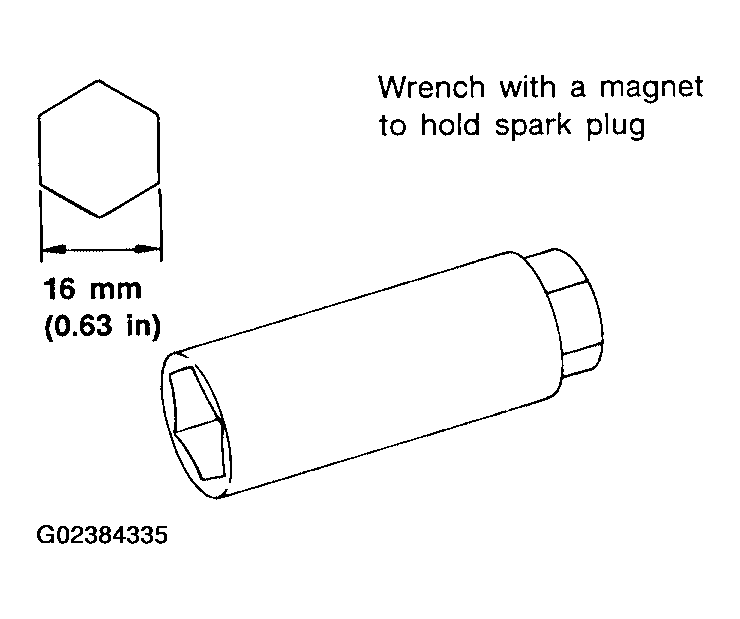

    Fig 1: Identifying Wrench (Special Tool)
    G02384335Courtesy of NISSAN MOTOR CO., U.S.A.
