Fluid Leakage And Fluid Level

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check for any fluid leaks from the transfer assembly or around it and correct as necessary.
  2. Remove the filler plug to check the fluid level at the filler plug mounting hole as shown.
    CAUTION: Do not start the engine while checking the fluid level.
  3. Install the new gasket on the filler plug and install the filler plug in the transfer. Tighten the filler plug to specification.
    CAUTION: Do not reuse the gasket.

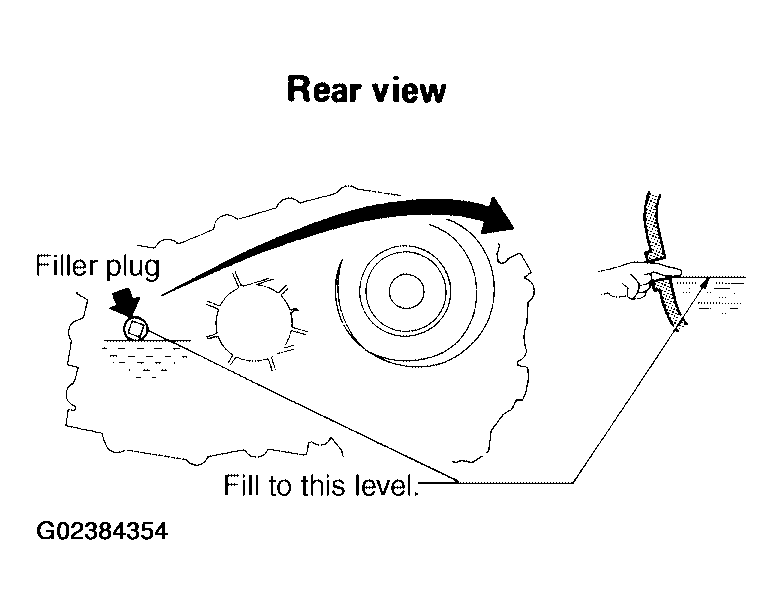

    Fig 1: Checking Fluid Level At Filler Plug Hole
    G02384354Courtesy of NISSAN MOTOR CO., U.S.A.
