Checking Fluid Level

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Check the power steering fluid level with the engine off.
Check fluid level on reservoir. Use "HOT" range at fluid temperatures of 50° to 80°C (122° to 176°F). Use "COLD" range at fluid temperatures of 0° to 30°C (32° to 86°F).

CAUTION:

Do not overfill.
Refer to "FLUIDS AND LUBRICANTS ".

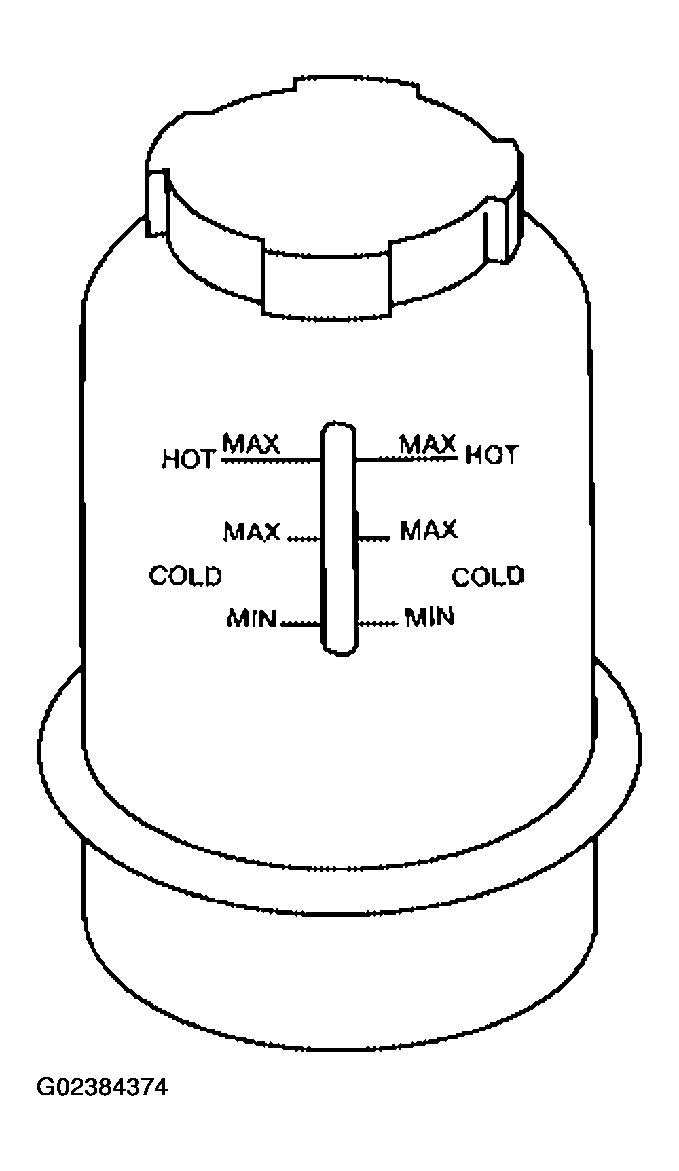

Fig 1: Identifying Power Steering Fluid Reservoir Level Markings
Courtesy of NISSAN MOTOR CO., U.S.A.
