Checking Final Drive Oil

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Remove the filler plug.
Check the oil level as shown. Add the specified oil as necessary.
NOTE: Rear final drive shown, front final drive similar
- Oil grade and viscosity: Refer to "FLUIDS AND LUBRICANTS ".

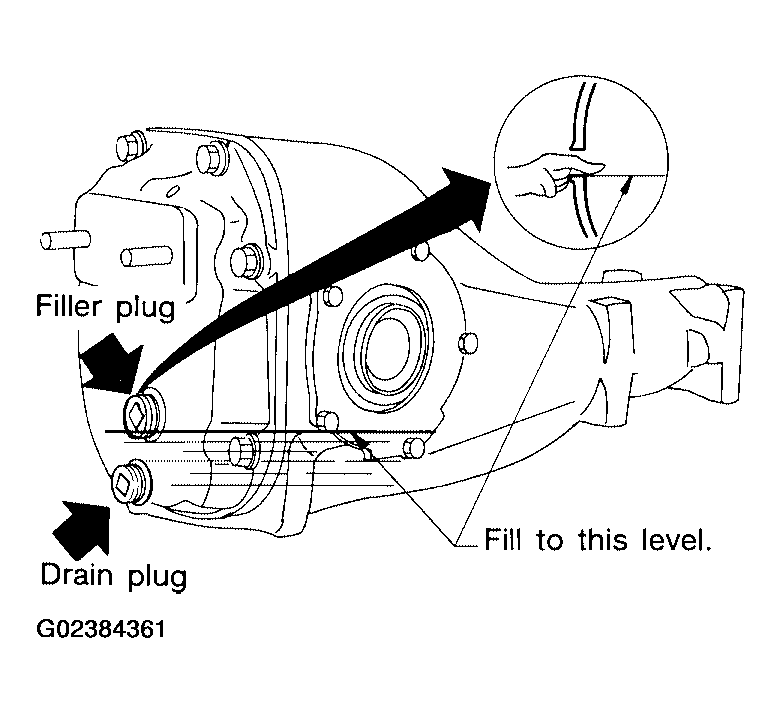

Fig 1: Checking Oil Level
Courtesy of NISSAN MOTOR CO., U.S.A.
Install the filler plug and tighten to specification.
- Filler plug: Refer to "COMPONENTS - FFD " (FFD), "COMPONENTS - RFD " (RFD).
