Checking Disc Brake: Pad

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Check the pads for wear or damage. Refer to FRONT DISC BRAKE or REAR DISC BRAKE .

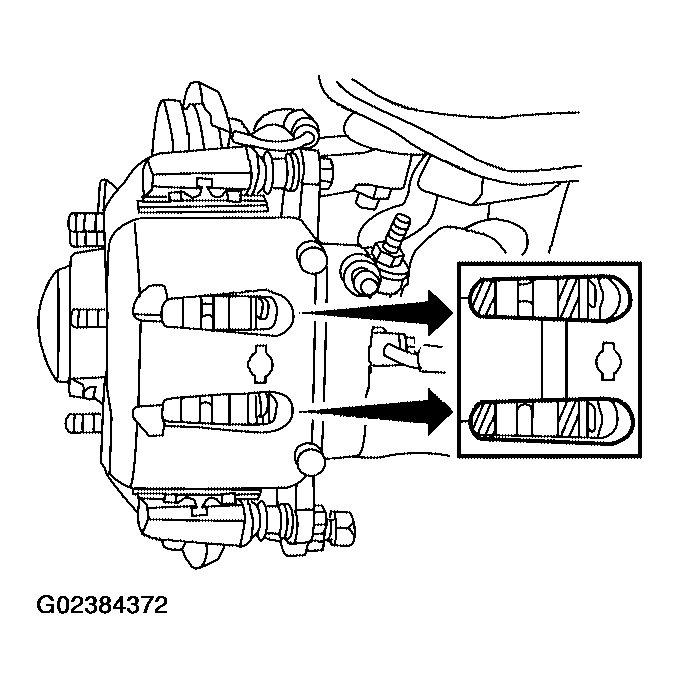

Fig 1: Checking Brake Pads

Courtesy of NISSAN MOTOR CO., U.S.A.
