Changing Transfer Fluid: Filling

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Remove the filler plug and gasket. Fill with new specified fluid until the fluid level reaches the specified limit near the filler plug mounting hole as shown.
- Fluid capacity and grade: Refer to "FLUIDS AND LUBRICANTS ".
CAUTION: Carefully fill the transfer with fluid. Filling should take approximately three minutes.
Leave the vehicle for three minutes and then check the fluid level again as shown.

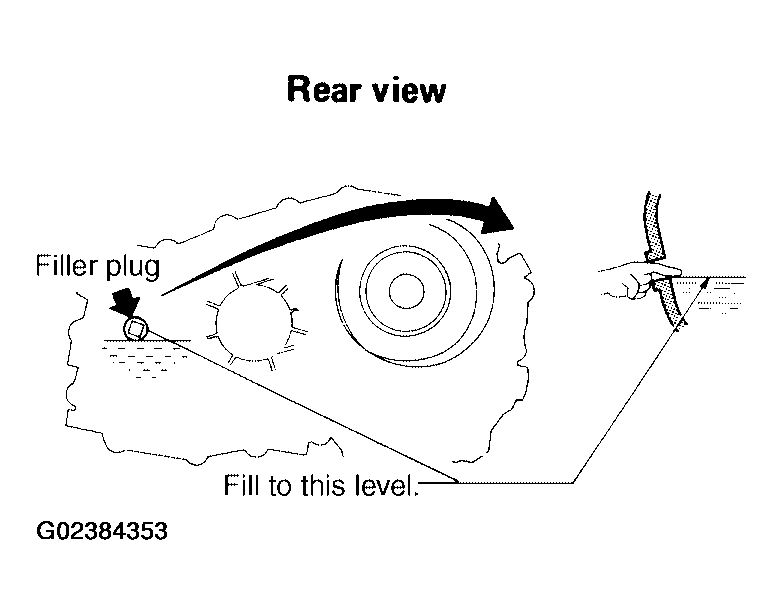

Fig 1: Removing Filler Plug & Gasket
Courtesy of NISSAN MOTOR CO., U.S.A.
Install the new gasket on the filler plug and install the filler plug in the transfer. Tighten the filler plug to specification.
- Filler plug: Refer to "COMPONENTS - TRANSFER ".
CAUTION: Do not reuse the gasket.
