Changing Transfer Fluid: Draining

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Stop the engine.
Remove the drain plug and gasket to drain the transfer fluid as shown.
Install the new gasket on the drain plug and install the drain plug in the transfer. Tighten the drain plug to specification.
- Drain plug: Refer to "COMPONENTS - TRANSFER ".
CAUTION: Do not reuse the gasket.

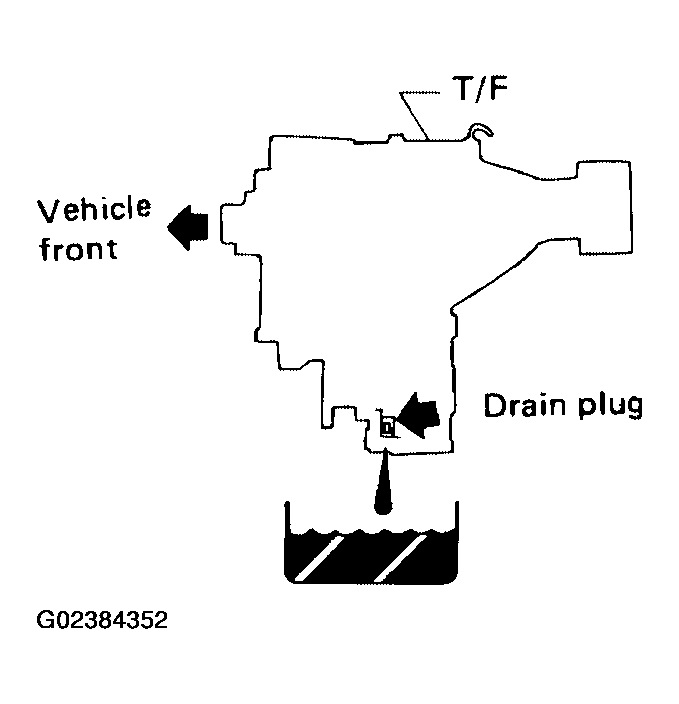

Fig 1: Draining Transfer Fluid
Courtesy of NISSAN MOTOR CO., U.S.A.
