Removal and Installation of IPDM E/R: Removal

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative battery cable.
  2. Remove IPDM E/R upper cover.

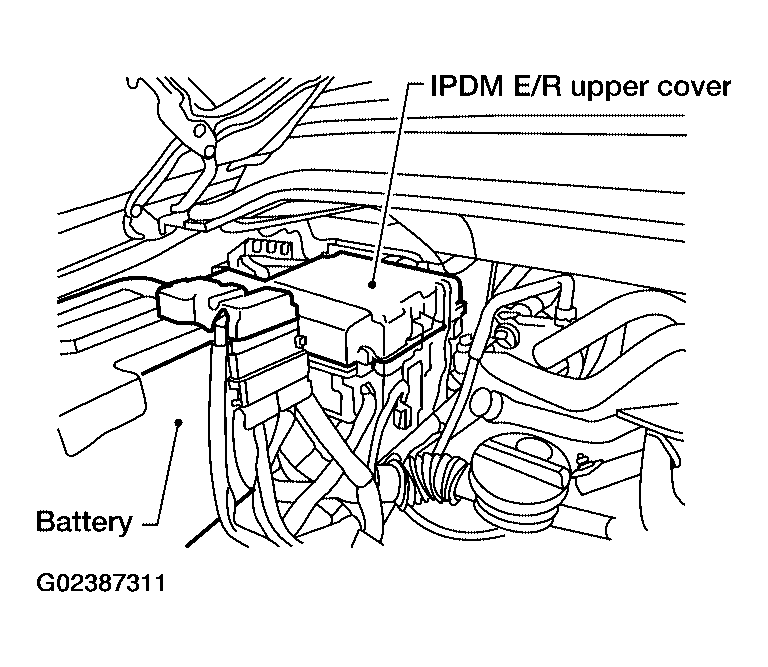

    Fig 1: Identifying Negative Battery Cable And IPDM E/R Upper Cover
    G02387311Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Release 2 clips and pull IPDM E/R up from case.
  4. Disconnect IPDM E/R connectors and remove the IPDM E/R.

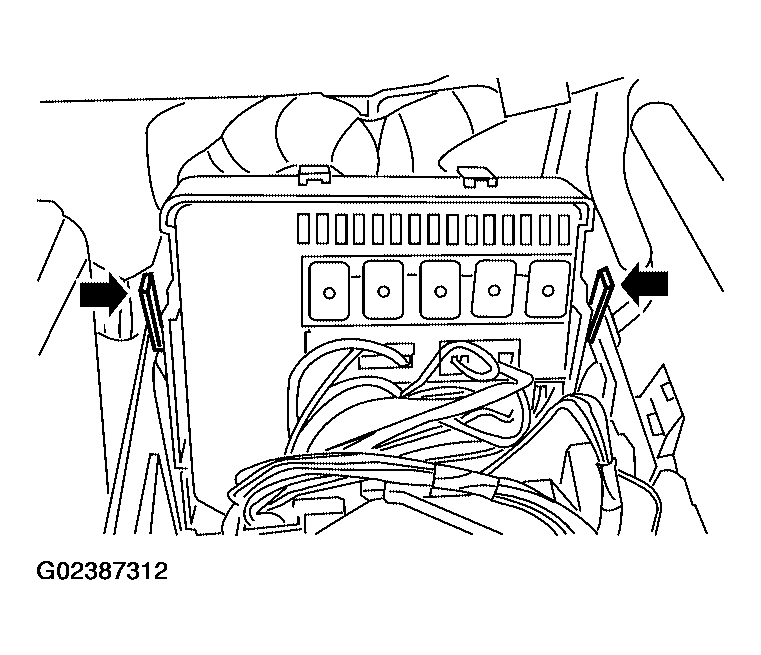

    Fig 2: Releasing Clips And Pulling IPDM E/R Up From Case
    G02387312Courtesy of NISSAN MOTOR CO., U.S.A.
