Consult-II Basic Operation

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.

With the ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to the data link connector, then turn ignition switch ON.

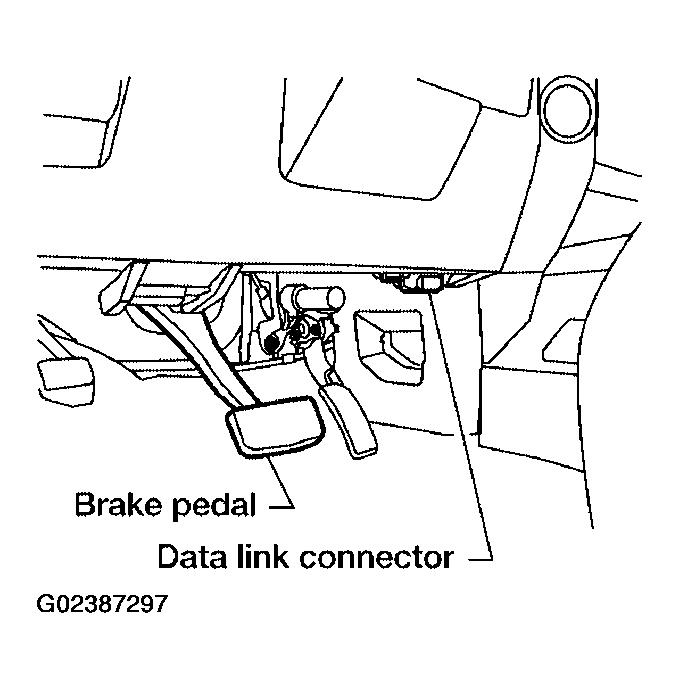

Fig 1: Identifying Brake Pedal And Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START (NISSAN BASED VHCL)".

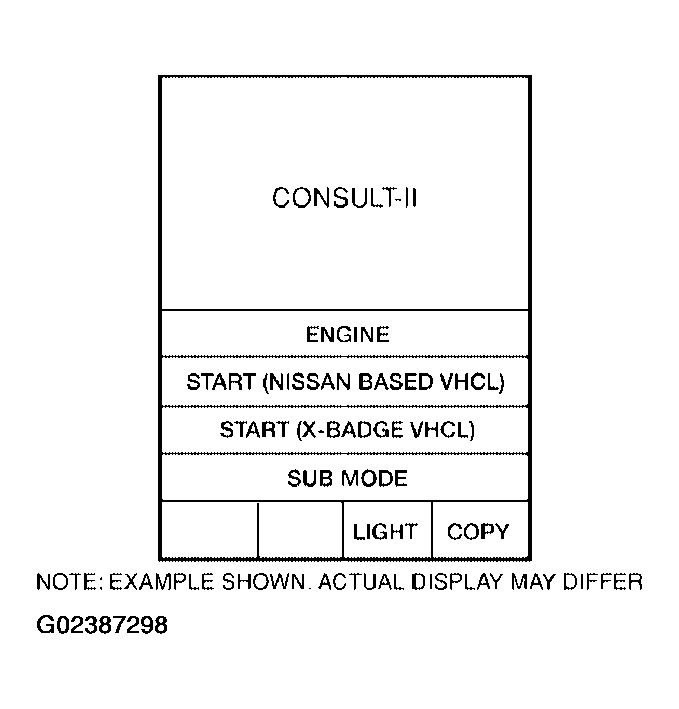

Fig 2: START (NISSAN BASED VHCL) - CONSULT II Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "IPDM E/R" on "SELECT SYSTEM" screen.
- If "IPDM E/R" is not displayed, print "SELECT SYSTEM" screen, then refer to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

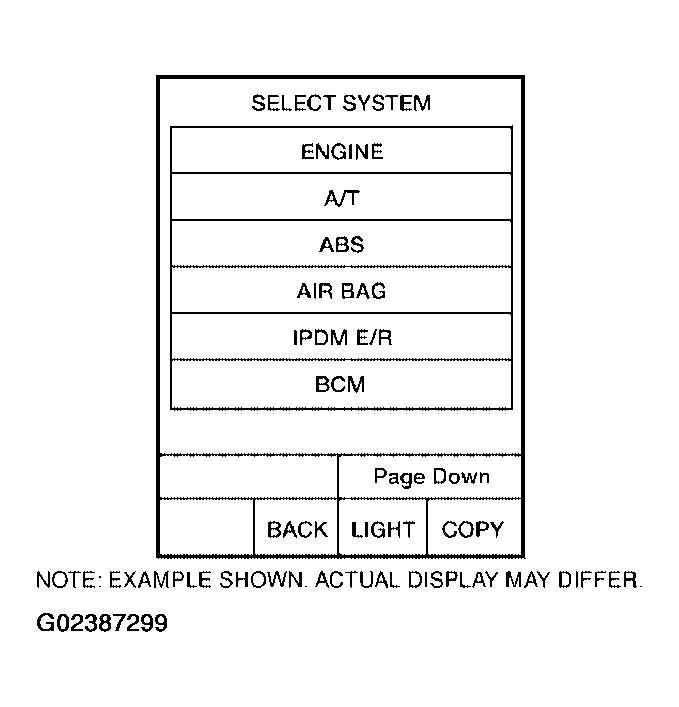

Fig 3: SELECT SYSTEM - CONSULT II Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Select "SELF-DIAG RESULTS" or "DATA MONITOR".

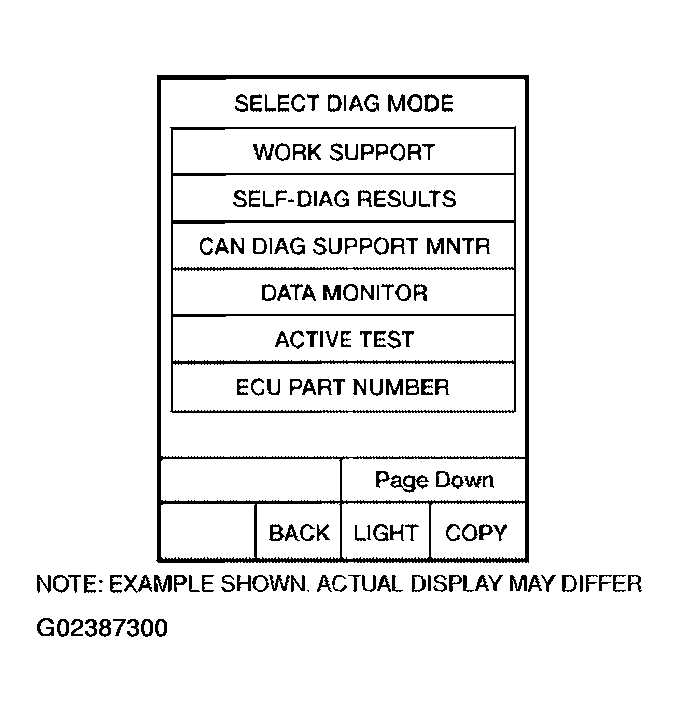

Fig 4: SELF-DIAG RESULTS - CONSULT II Display
Courtesy of NISSAN MOTOR CO., U.S.A.
