Wiring Diagram Codes (Cell Codes)

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Use the chart below to find out what each wiring diagram code stands for.

Refer to the WIRING DIAGRAM CODE in the alphabetical index to find the location (page number) of each wiring diagram.

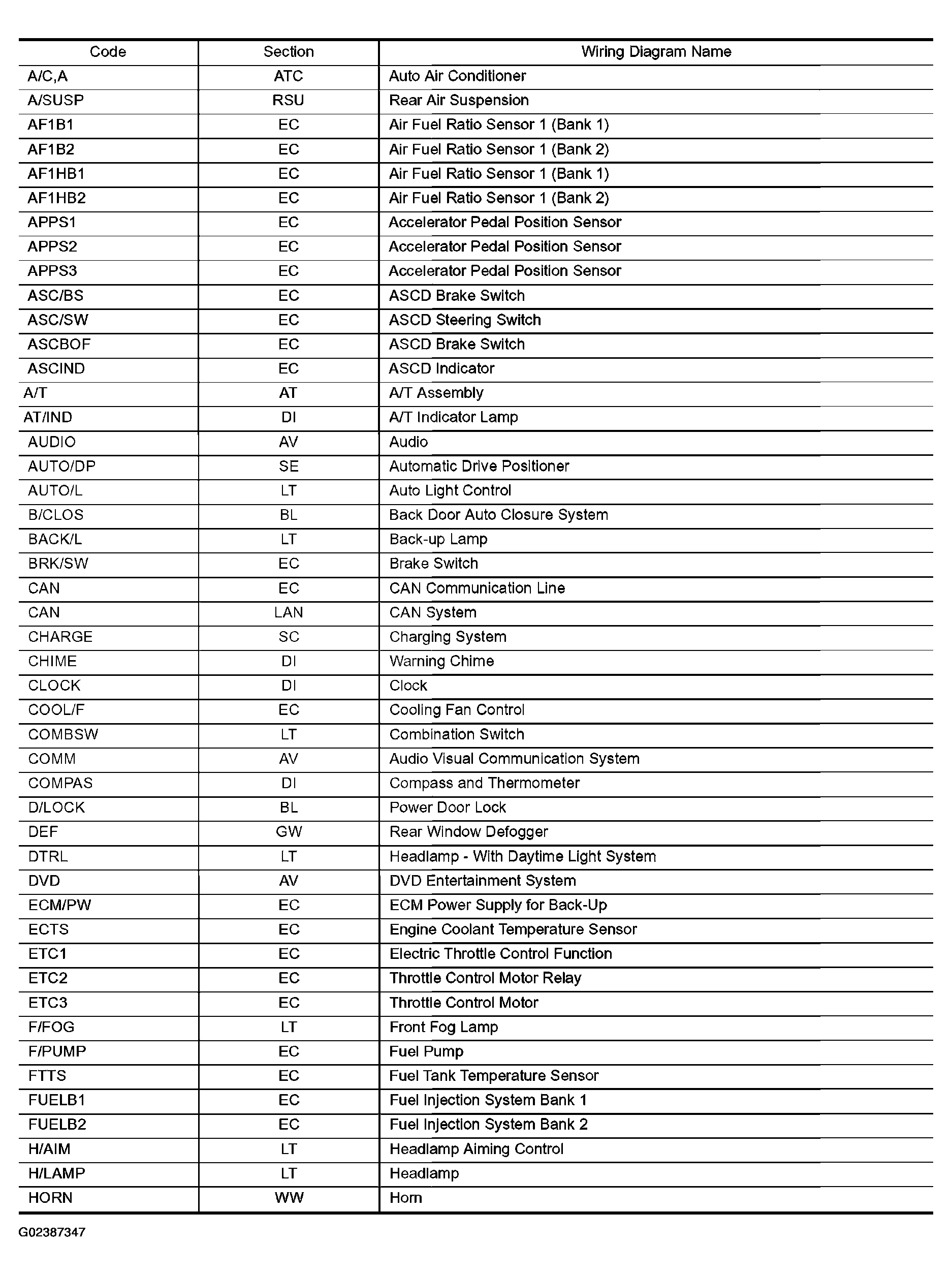

Fig 1: Alphabetical Index Of Wiring Diagram Codes (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

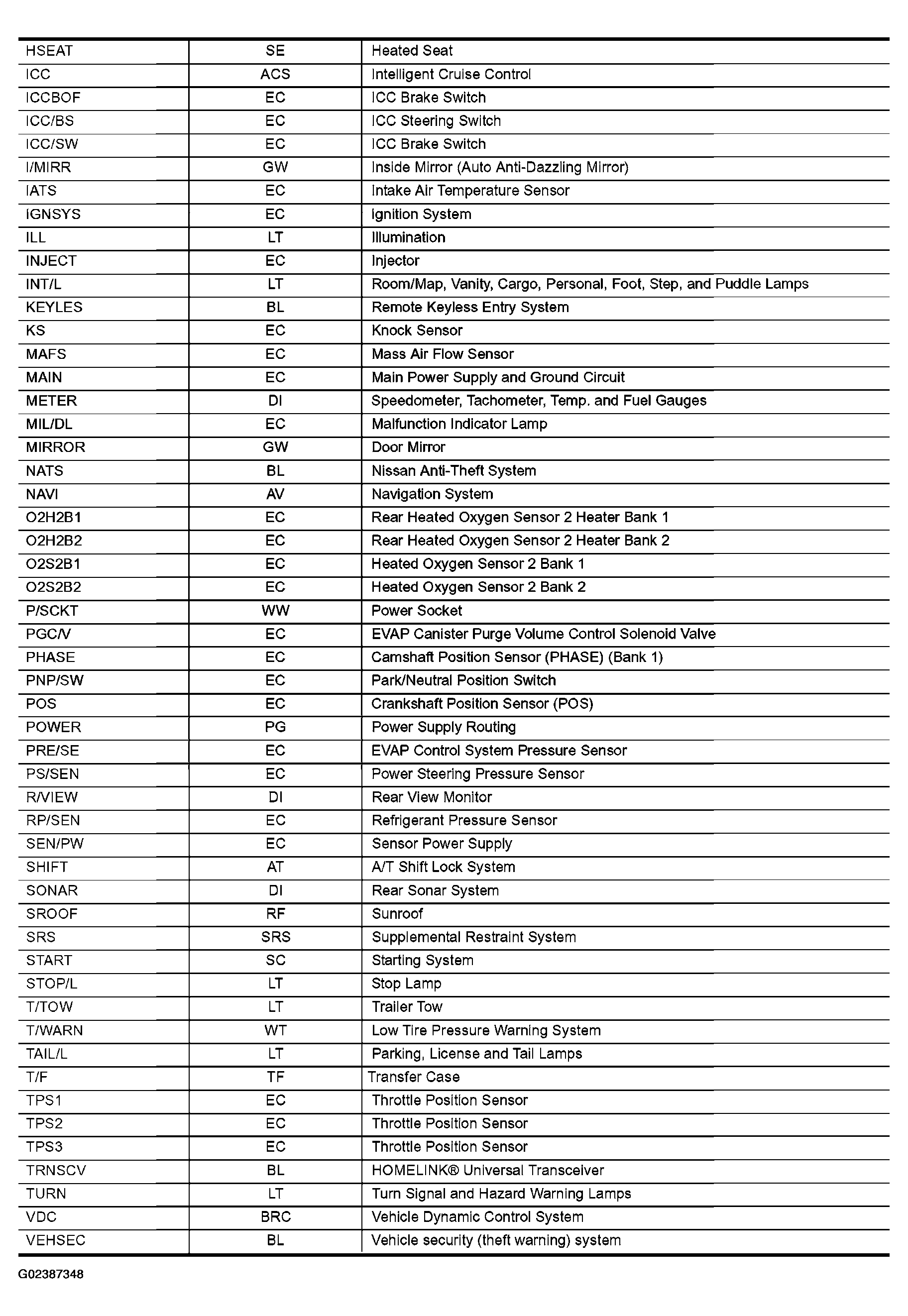

Fig 2: Alphabetical Index Of Wiring Diagram Codes (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

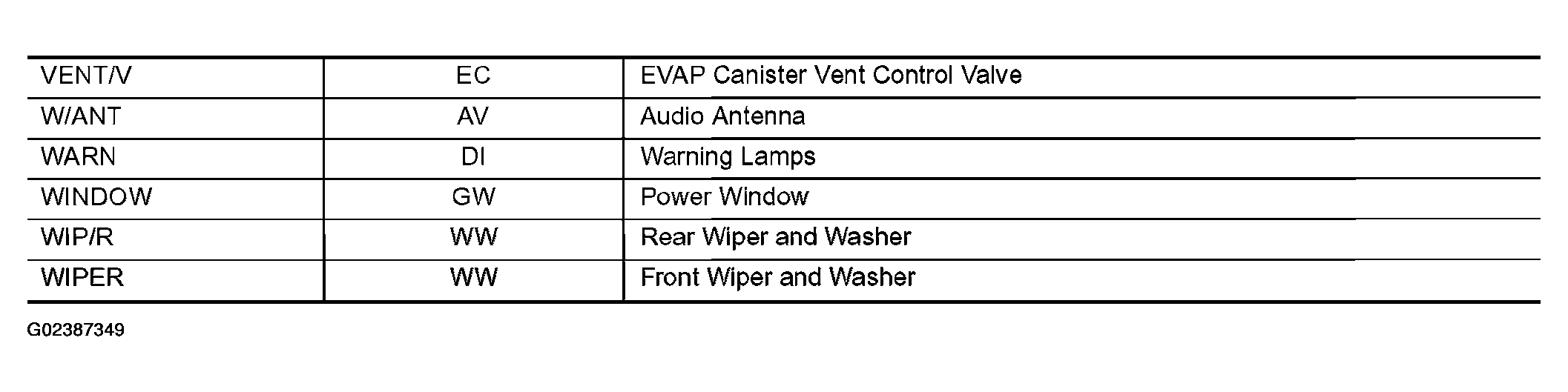

Fig 3: Alphabetical Index Of Wiring Diagram Codes (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
