Main Harness

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For references to "EC", refer to ENGINE CONTROL SYSTEM .

For reference to "AT", refer to AUTOMATIC TRANSMISSION .

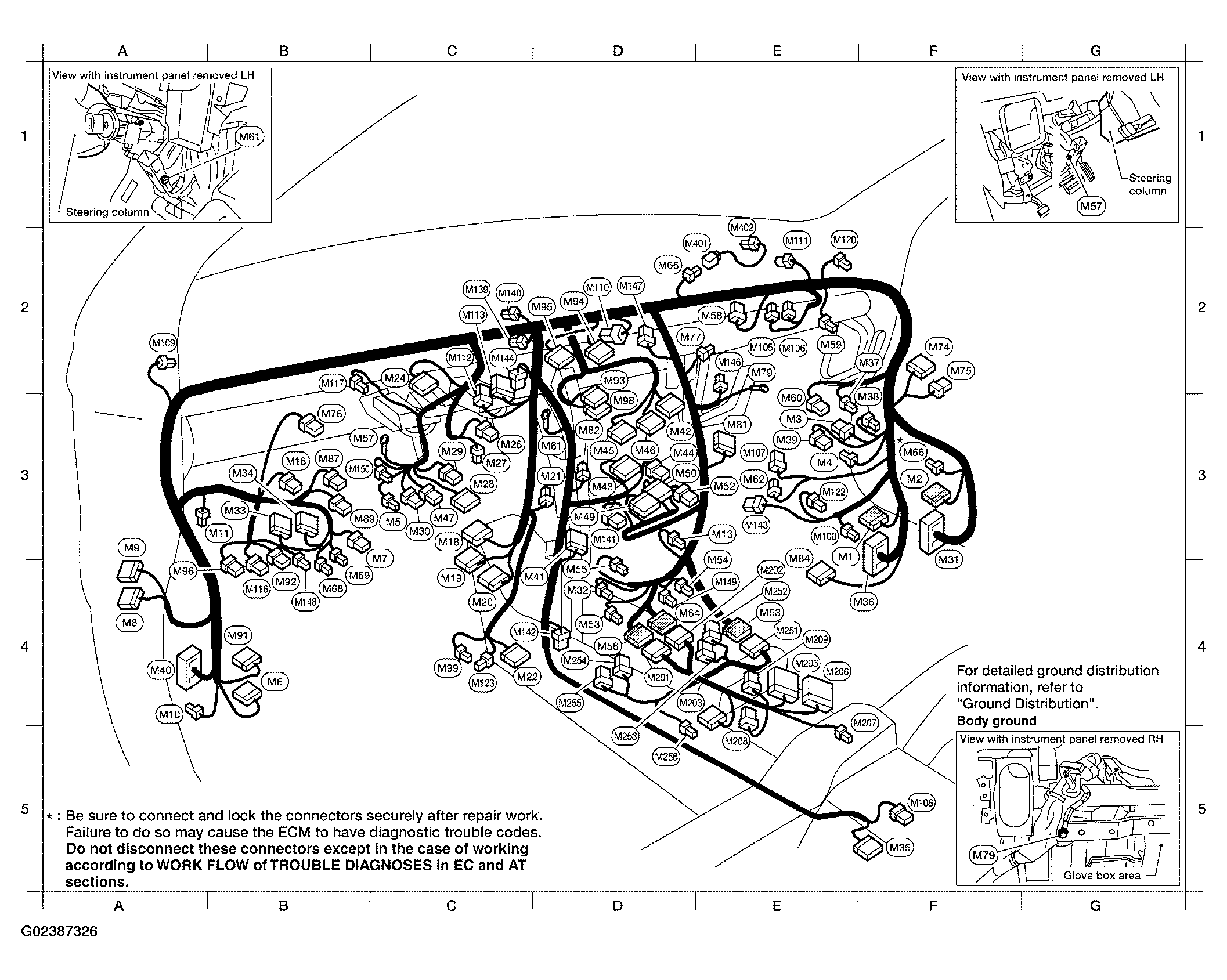

Fig 1: Identifying Main Harness

Courtesy of NISSAN MOTOR CO., U.S.A.

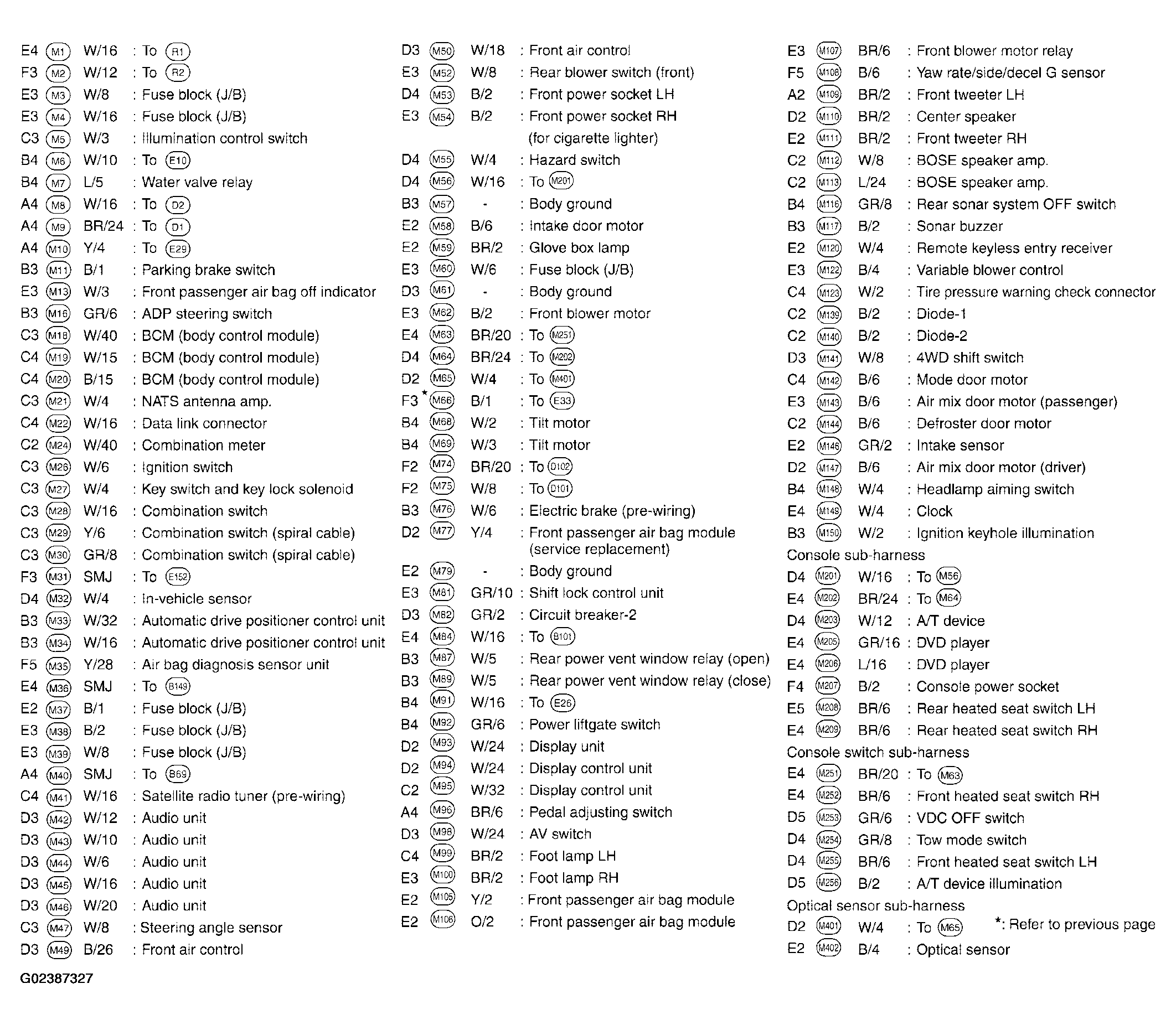

Fig 2: Main Harness Components Legend

Courtesy of NISSAN MOTOR CO., U.S.A.
