How To Read Harness Layout

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

The following Harness Layouts use a map style grid to help locate connectors on the drawings:

Main Harness
Engine Room Harness LH View (Engine Compartment)

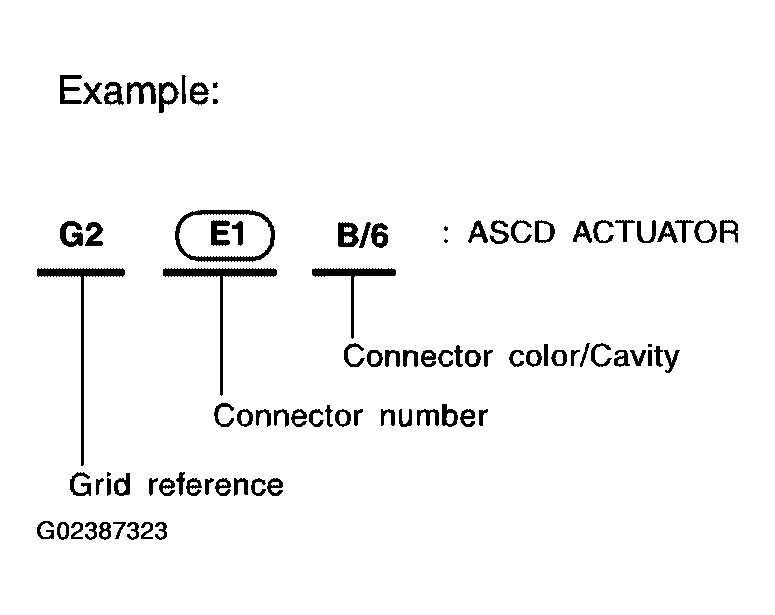

Fig 1: Identifying Harness Layouts On Map Style Grid
Courtesy of NISSAN MOTOR CO., U.S.A.
Engine Room Harness RH View (Engine Compartment)
Engine Control Harness
Body Harness and Rear Bumper Sub Harness
Body No. 2 Harness and Fuel Pump Sub Harness

To use the grid reference

Find the desired connector number on the connector list.
Find the grid reference.
On the drawing, find the crossing of the grid reference letter column and number row.
Find the connector number in the crossing zone.
Follow the line (if used) to the connector.
