Engine Compartment

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For references to "EC", refer to ENGINE CONTROL SYSTEM .

For reference to "AT", refer to AUTOMATIC TRANSMISSION .

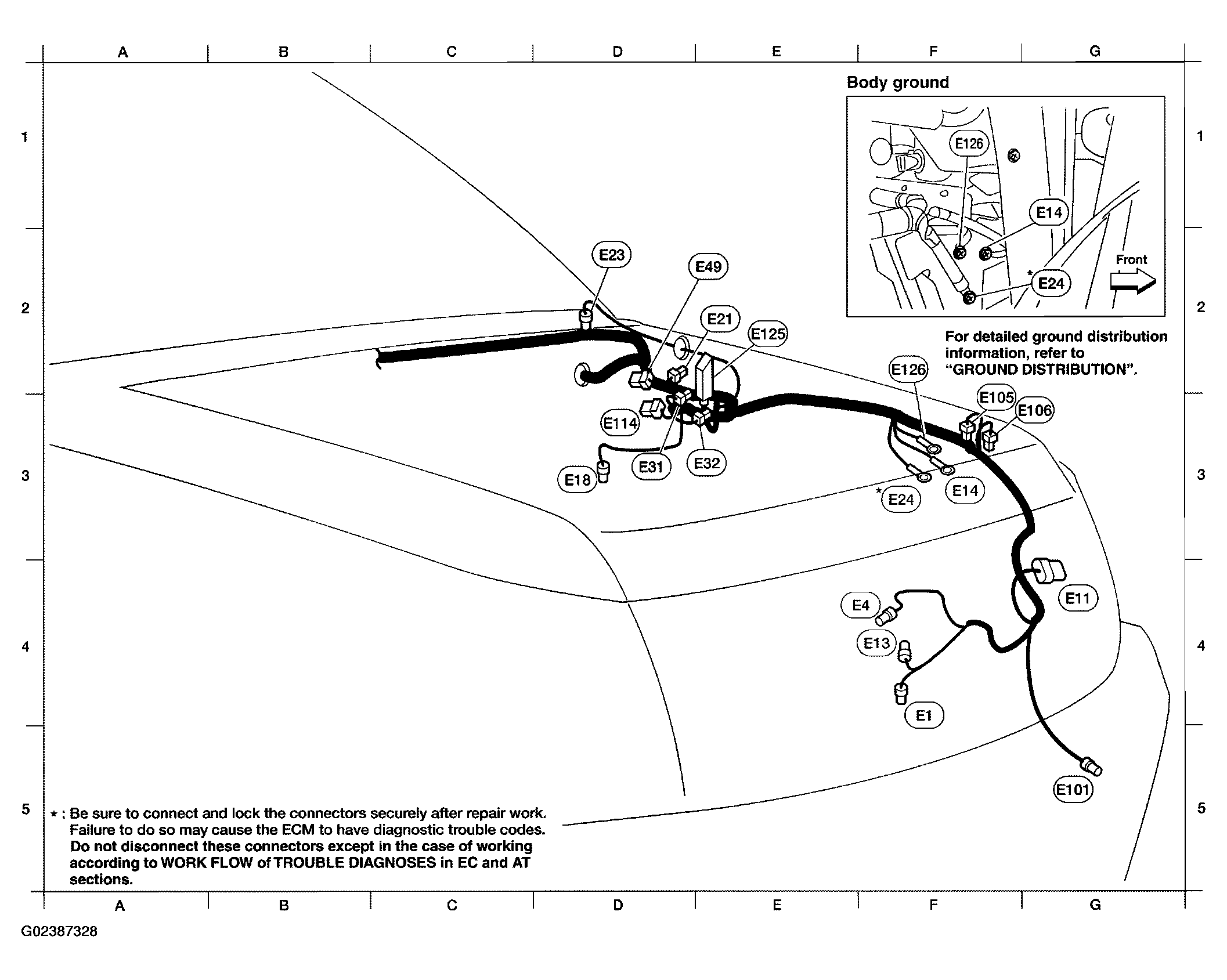

Fig 1: Identifying Engine Room Harness (LH View)

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "ENGINE ROOM HARNESS (RH VIEW) " for continuation of engine room harness.

Fig 2: Engine Room Harness Components Legend (LH View)

Courtesy of NISSAN MOTOR CO., U.S.A.
