Connector Symbol

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Main symbols of connector (in Harness Layout) are indicated below.

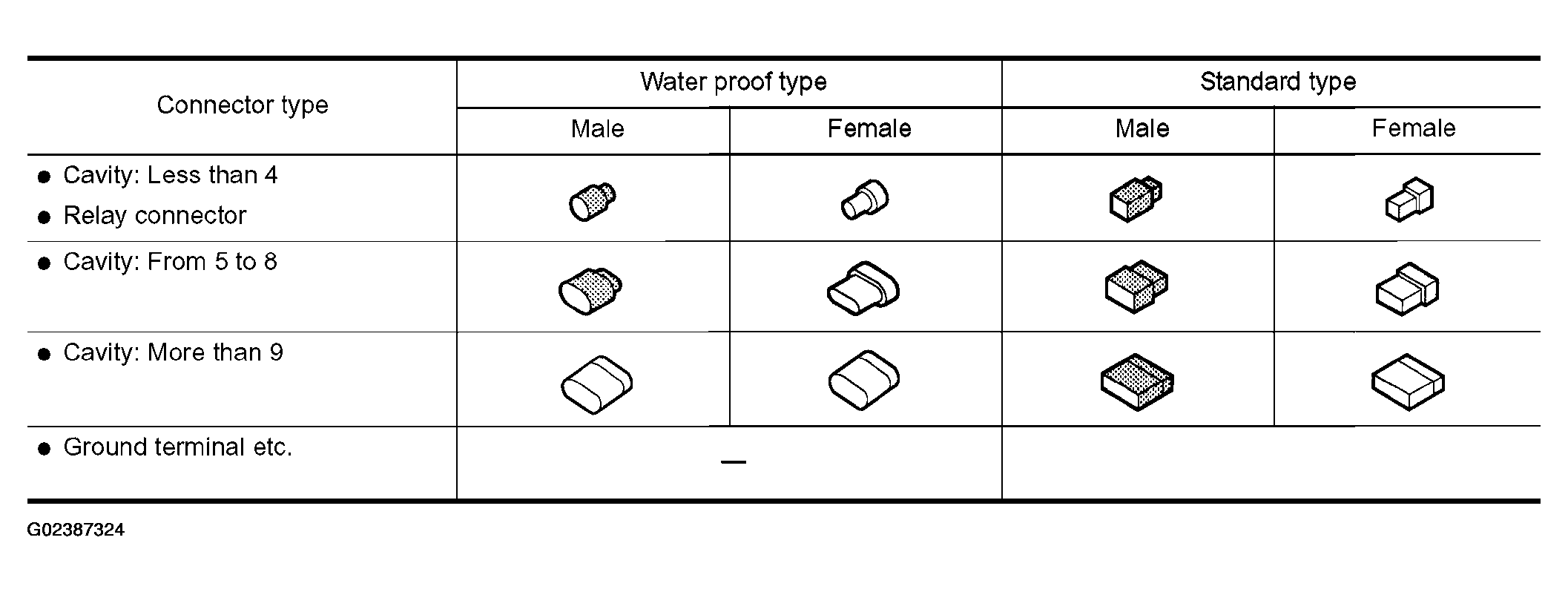

Fig 1: Connector Symbol Description Chart
G02387324Courtesy of NISSAN MOTOR CO., U.S.A.
