Body No. 2 Harness

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

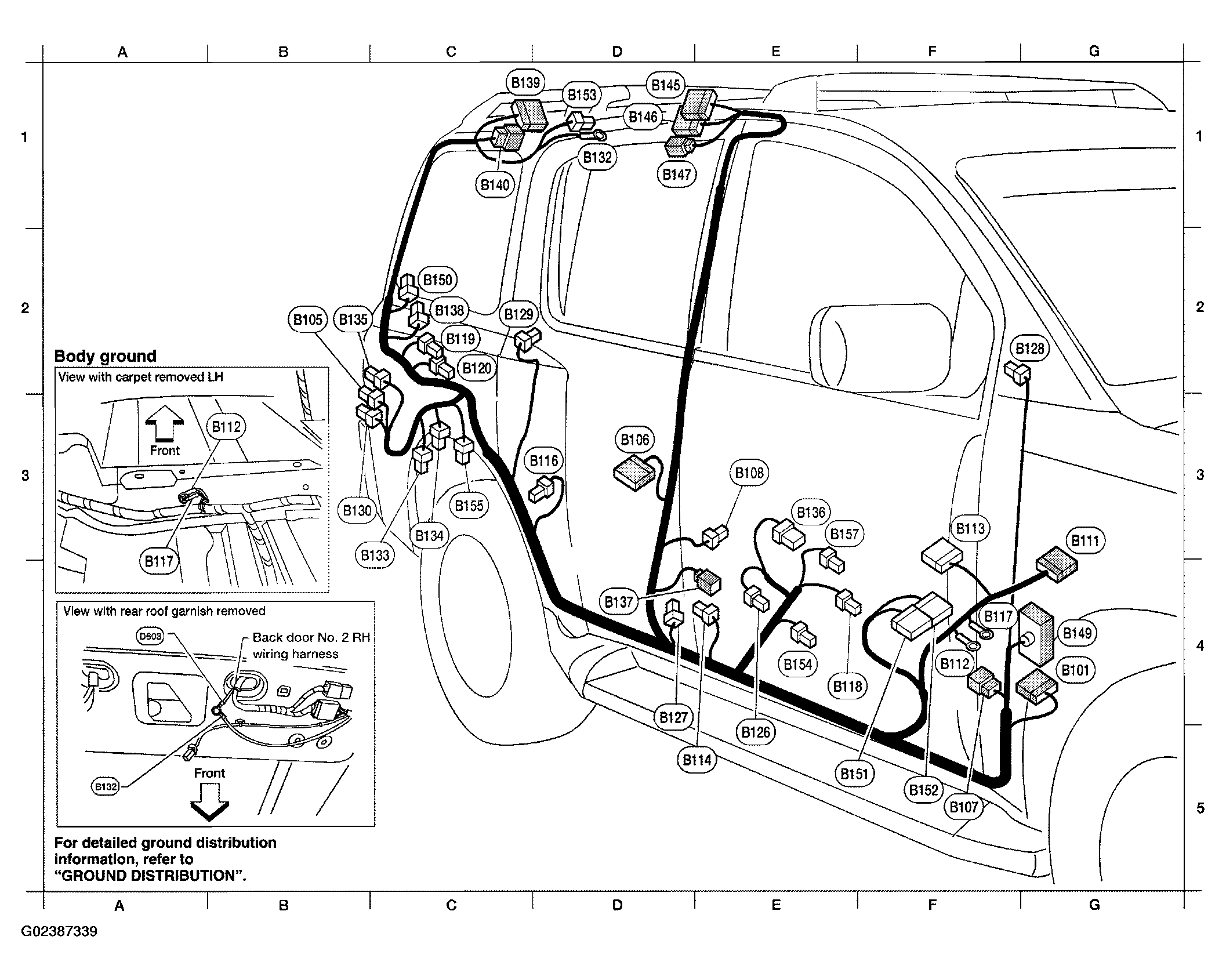

Fig 1: Identifying Body No 2 Harness

Courtesy of NISSAN MOTOR CO., U.S.A.

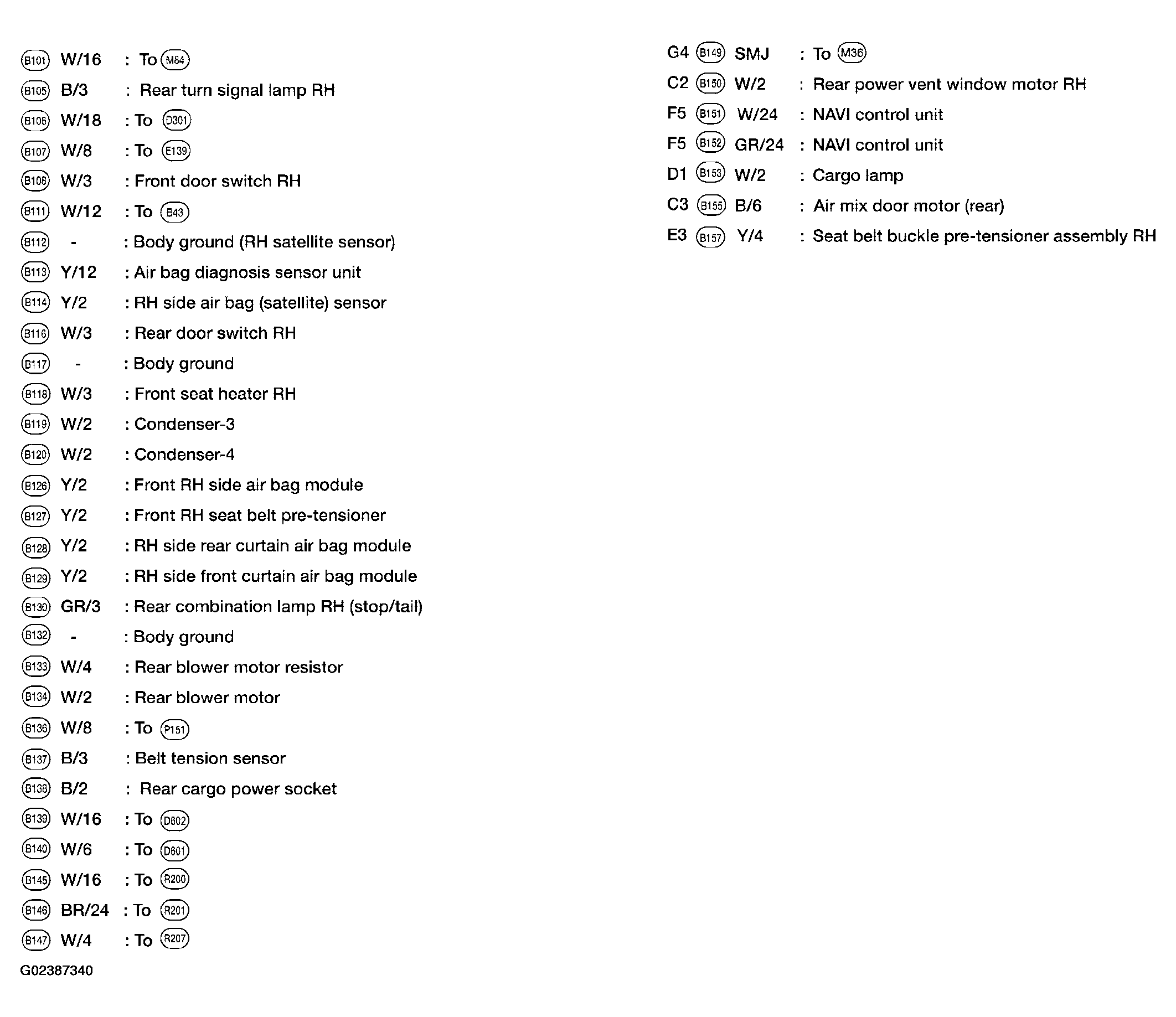

Fig 2: Body No 2 Harness Components Legend

Courtesy of NISSAN MOTOR CO., U.S.A.
