Section 1237 (Power Supply, Ground & Circuit Elements)
>>
Harness
>>
Harness Layout
>>
Body Harness
Body Harness
WARNING:
This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

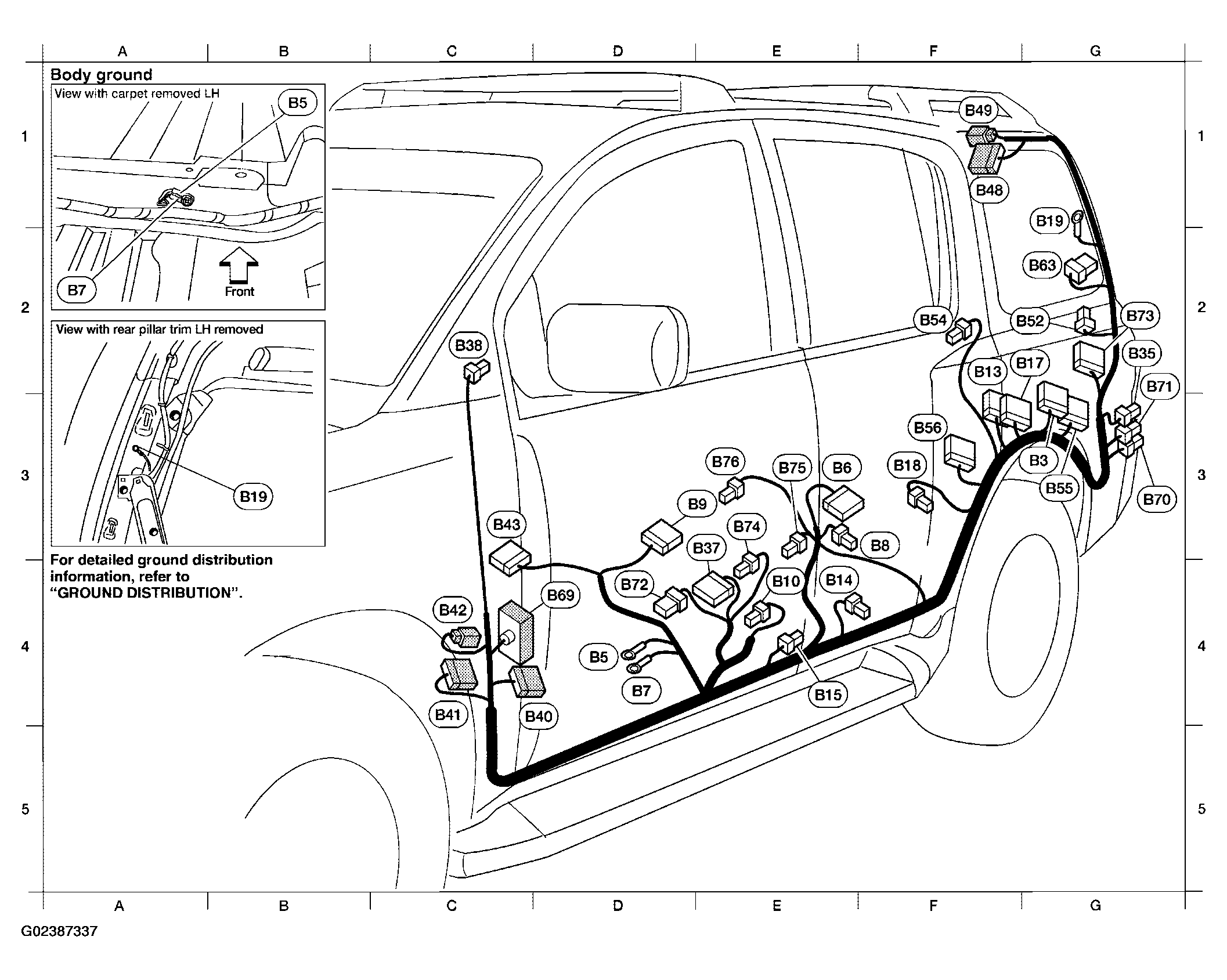

Fig 1: Identifying Body Harness
Courtesy of NISSAN MOTOR CO., U.S.A.

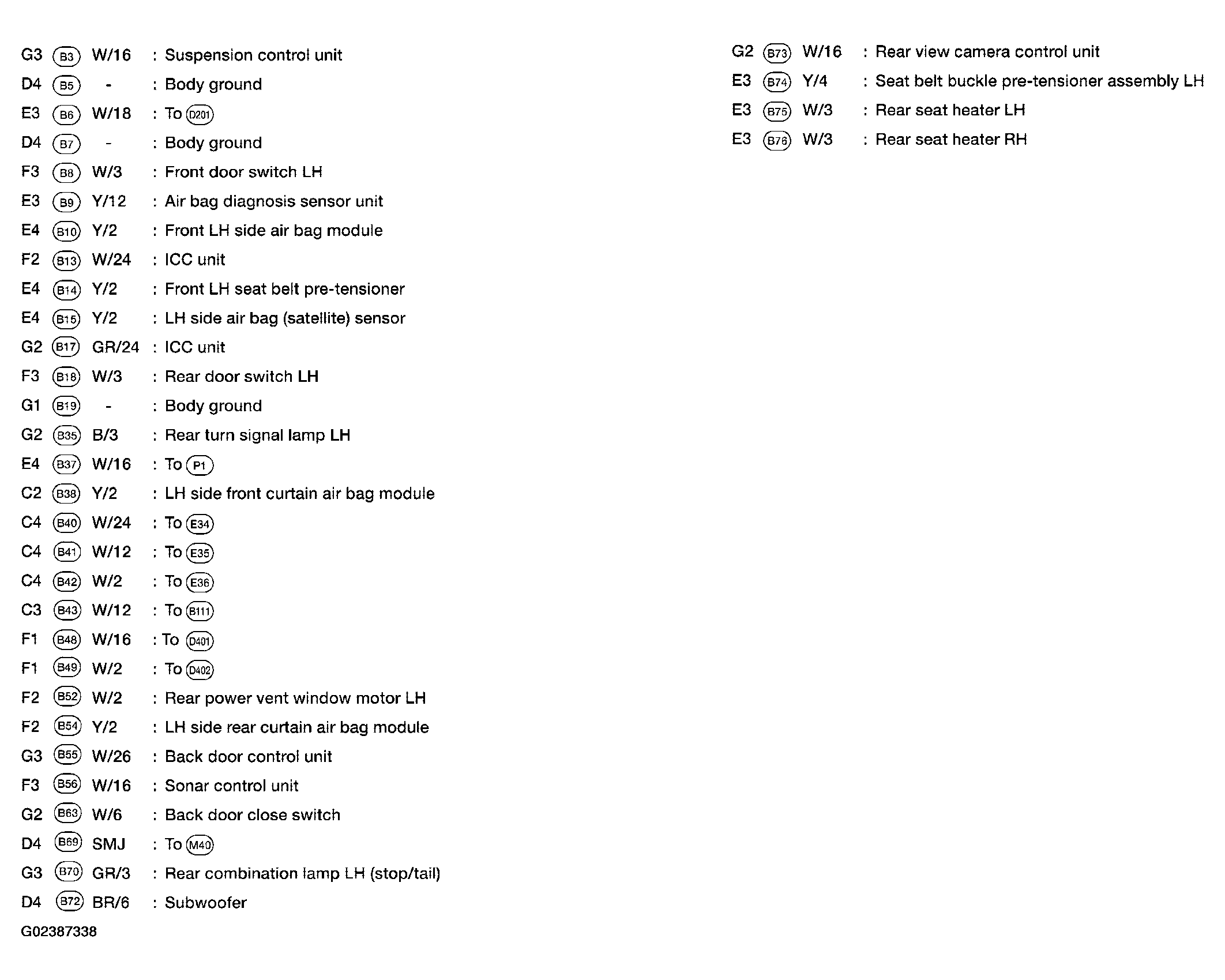

Fig 2: Body Harness Components Legend
Courtesy of NISSAN MOTOR CO., U.S.A.
