WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

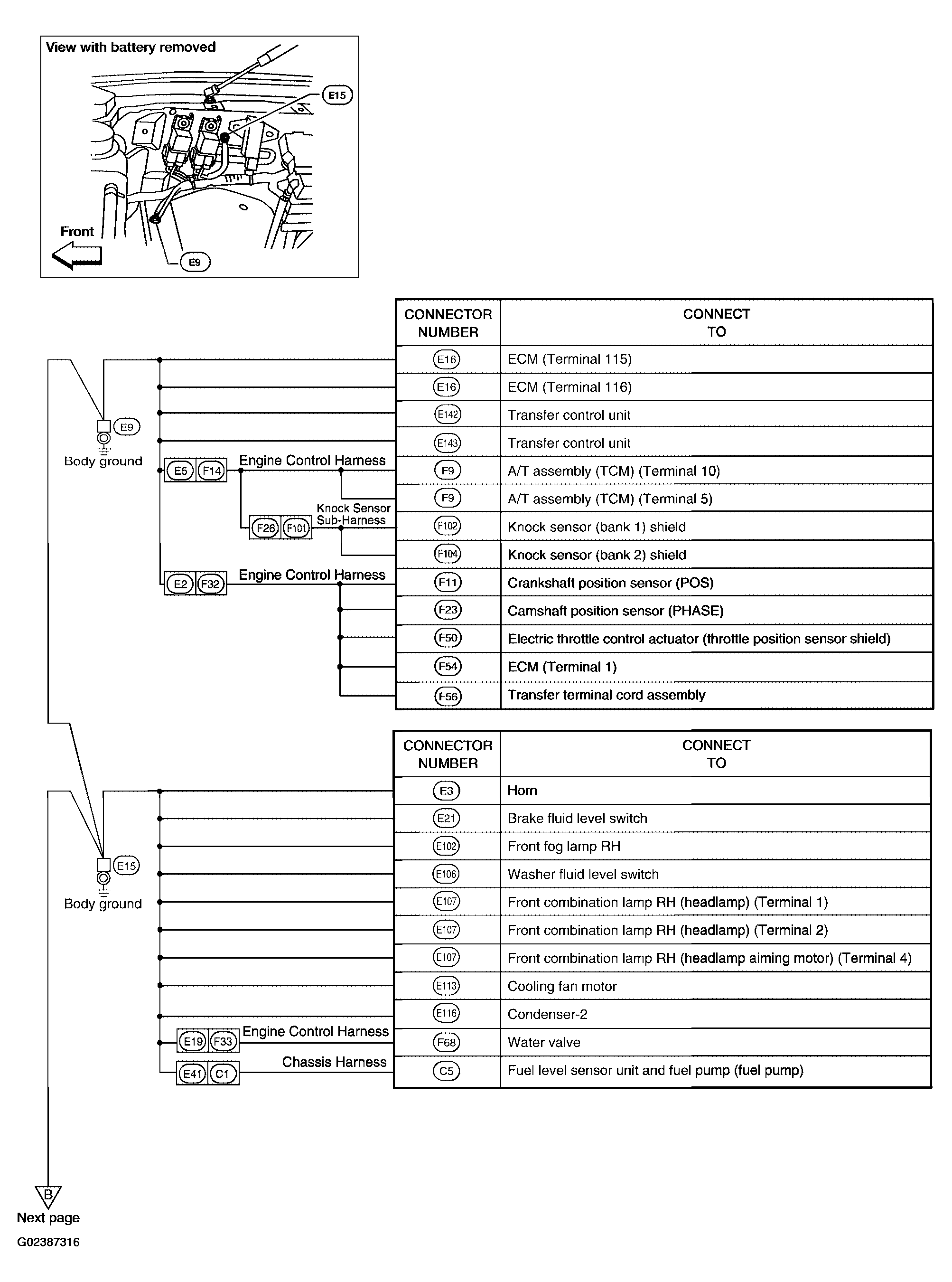

Fig 1: Ground Distribution Engine Room Harness Connection Diagram (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

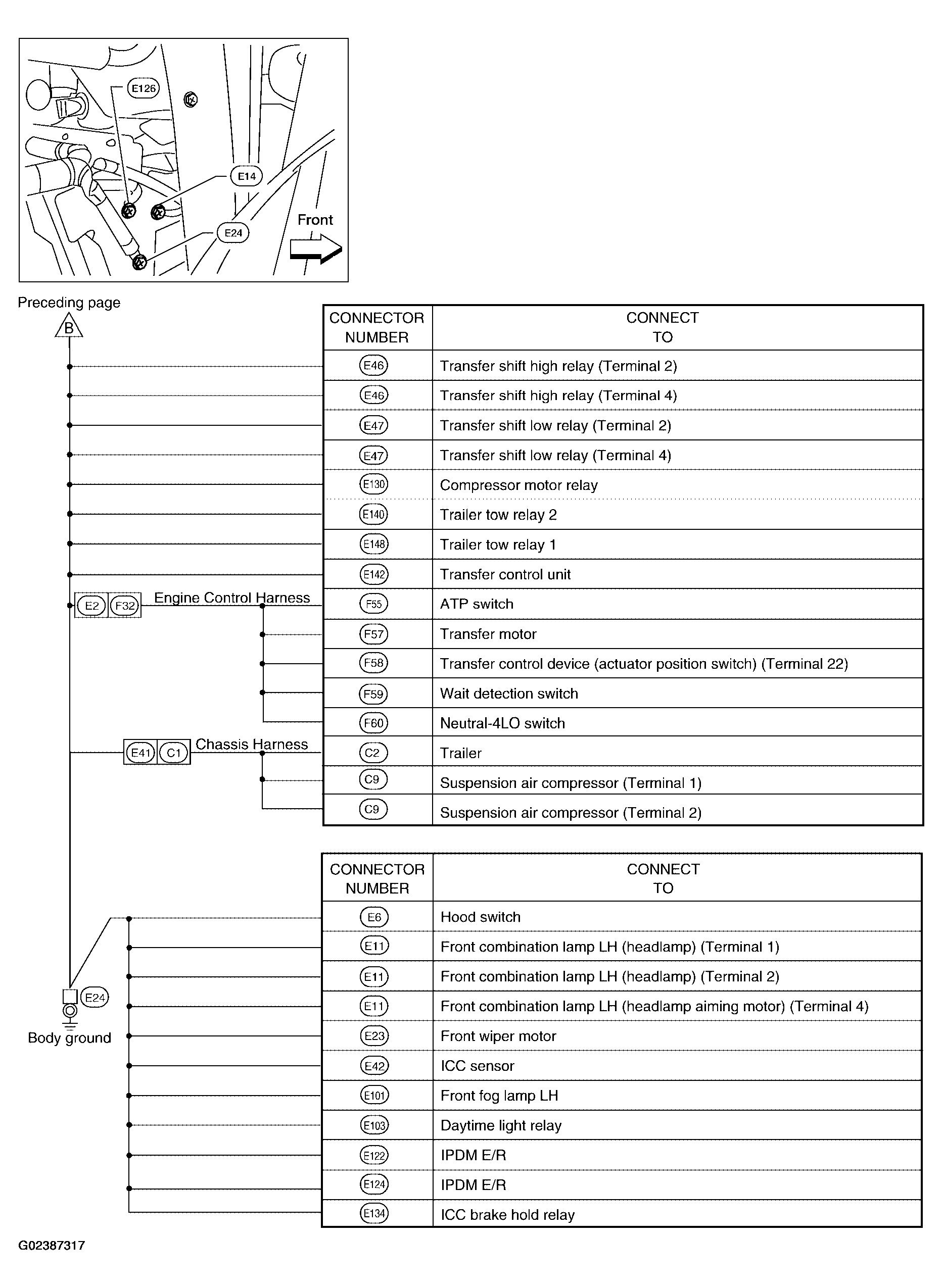

Fig 2: Ground Distribution Engine Room Harness Connection Diagram (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

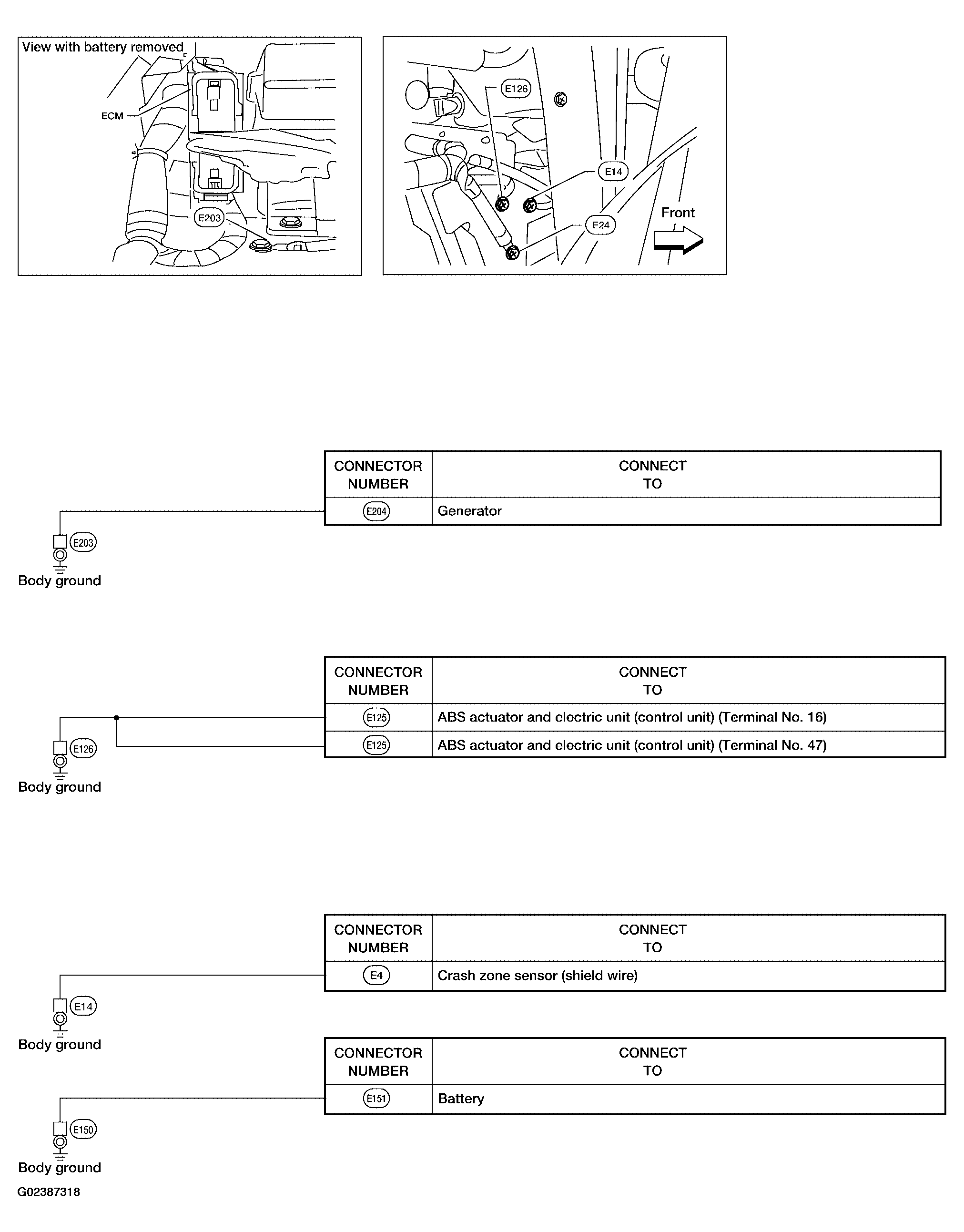

Fig 3: Ground Distribution Engine Room Harness Connection Diagram (3 Of 3)
