Section 1237 (Power Supply, Ground & Circuit Elements)
>>
Ground Circuit
>>
Ground Distribution
>>
Body Harness
Body Harness
WARNING:
This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

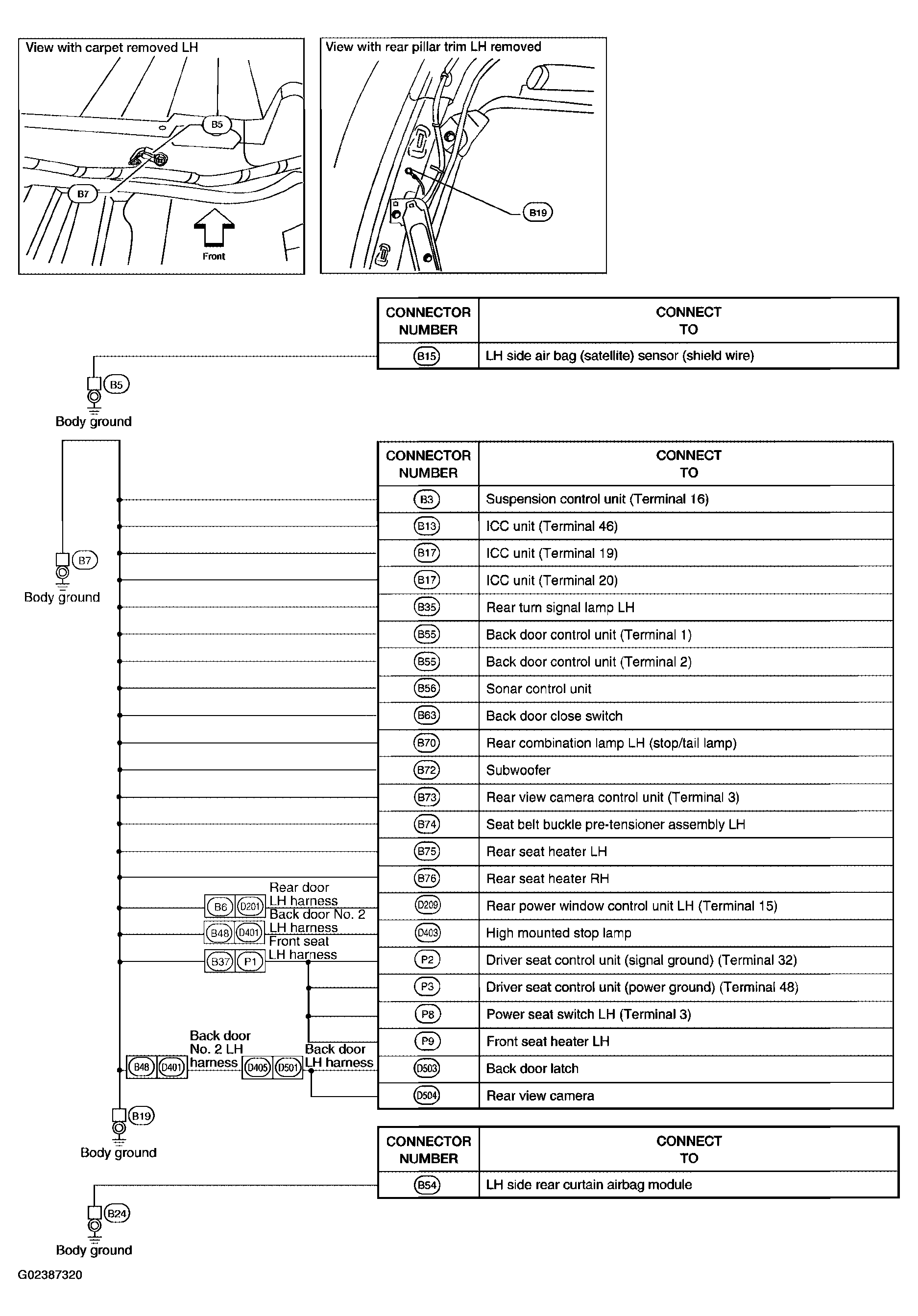

Fig 1: Ground Distribution Body Harness Connection Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
