Circuit Breaker (Built Into BCM)

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

For example, when current is 30A, the circuit is broken within 8 to 20 seconds.

A circuit breaker is used for the following systems:

Power seat
Power windows
Power door locks
Remote keyless entry system
Power sunroof
Rear window wiper

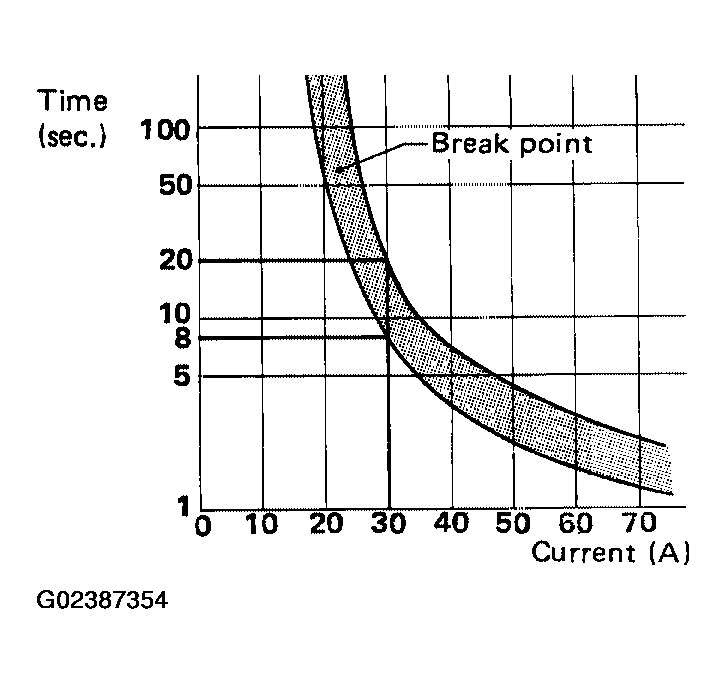

Fig 1: Circuit Breaker (Built Into BCM) Graph
Courtesy of NISSAN MOTOR CO., U.S.A.
