Section 1236 (Auto Cruise Control System)
>>
Auto Cruise Control System - ICC
>>
Trouble Diagnosis For Symptoms
>>
Symptom Chart
Symptom Chart
WARNING:
This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

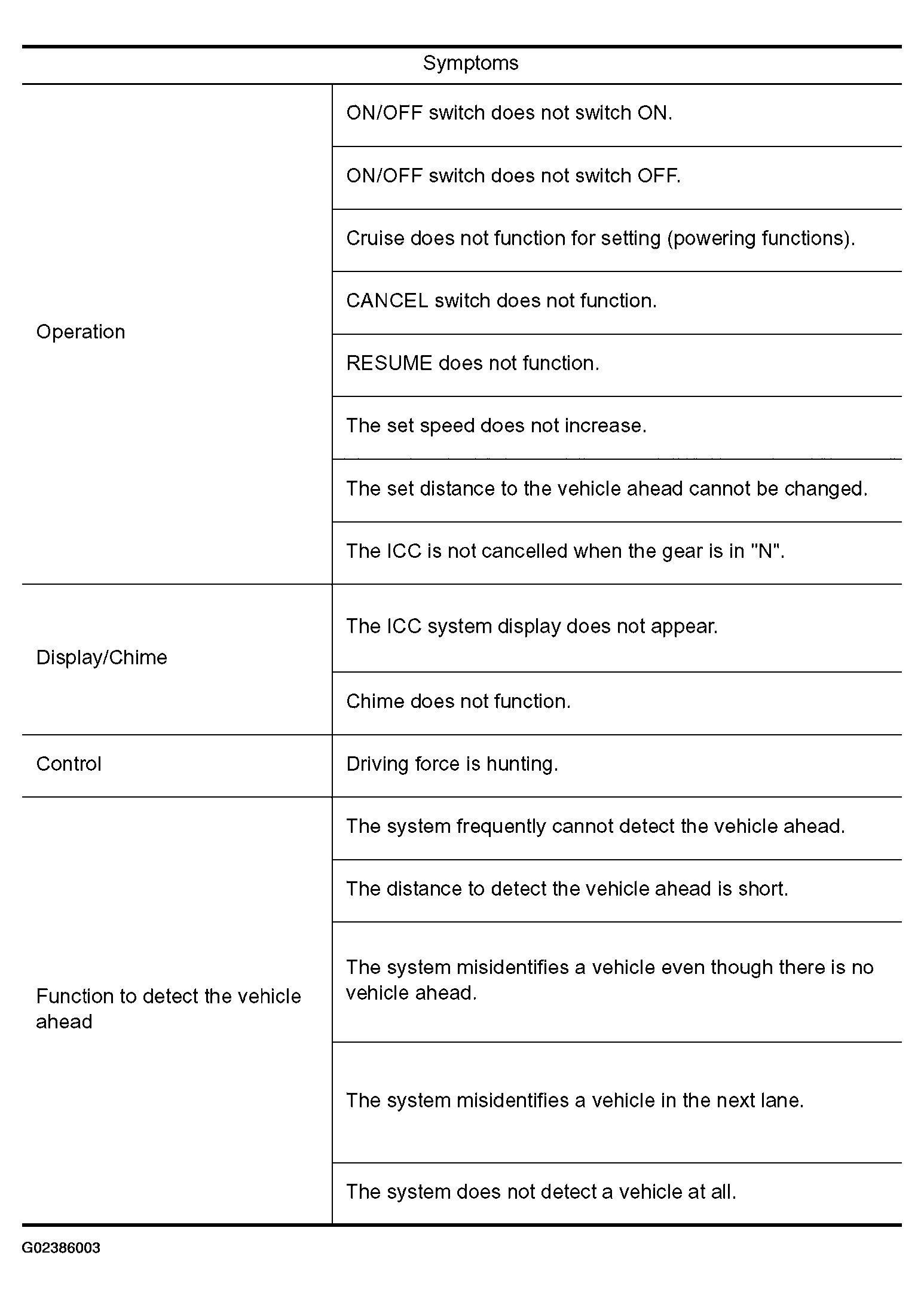

Fig 1: Trouble Diagnosis Symptom Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
