Cause of Auto-Cancel

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Touch "WORK SUPPORT" on "SELECT DIAG MODE" screen.
  2. Touch "CAUSE OF AUTO-CANCEL" on "SELECT WORK ITEM" screen.
  3. Cause of automatic cancellation screen will be shown.
  4. The last five causes of automatic cancellation of ICC system will be displayed.

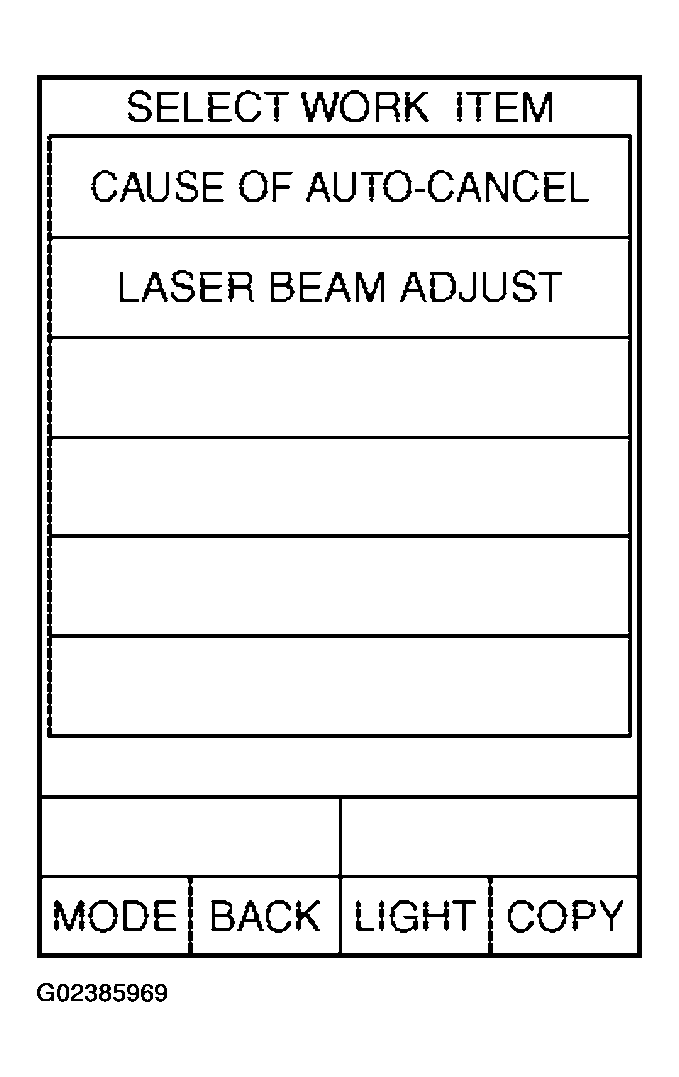

    Fig 1: Identifying Select Work Item Screen
    G02385969Courtesy of NISSAN MOTOR CO., U.S.A.
