Operation Procedure
WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
- Touch "DATA MONITOR" on "SELECT DIAG MODE" screen.

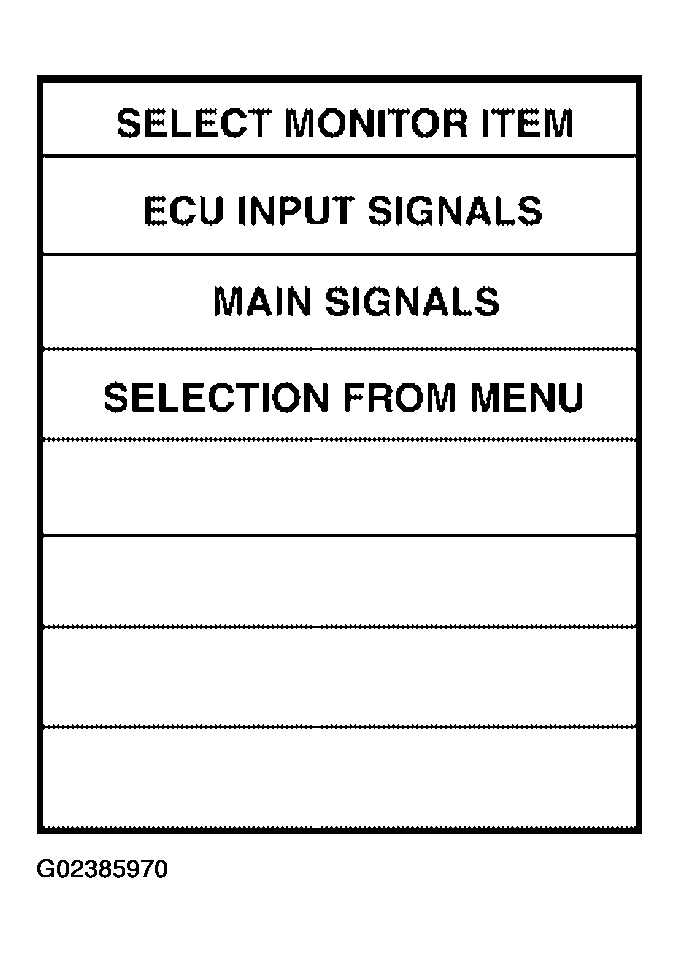

- Touch "ECU INPUT SIGNALS", "MAIN SIGNALS", or "SELECTION FROM MENU" on "SELECT MONITOR ITEM" screen.
Courtesy of NISSAN MOTOR CO., U.S.A.
