Consult-II Operation

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carries out CAN communication.

Turn ignition switch OFF.
Connect CONSULT-II and CONSULT-II CONVERTER to data link connector.
Turn ignition switch ON.

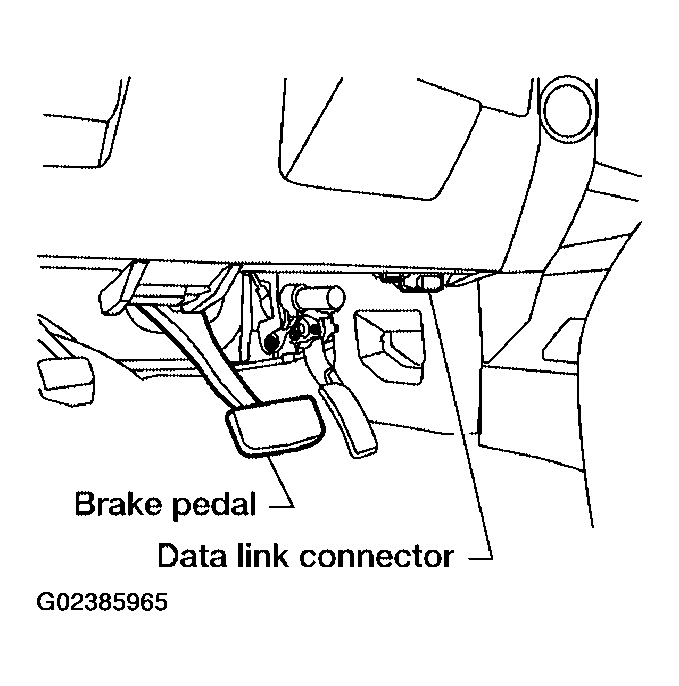

Fig 1: Identifying Brake Pedal And Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START (NISSAN BASED VHCL)".

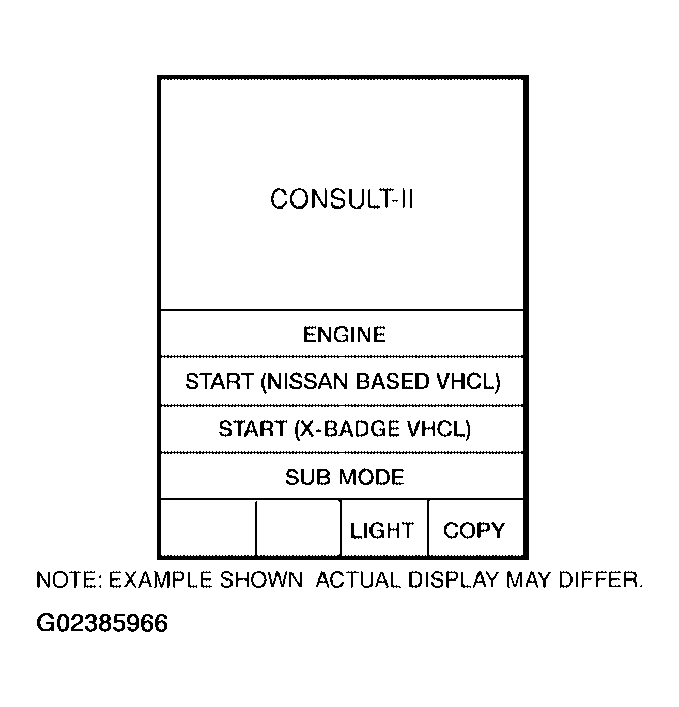

Fig 2: Identifying Start (Nissan Based VHCL)
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "ICC" on "SELECT SYSTEM" screen.
If "ICC" is not indicated, go to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

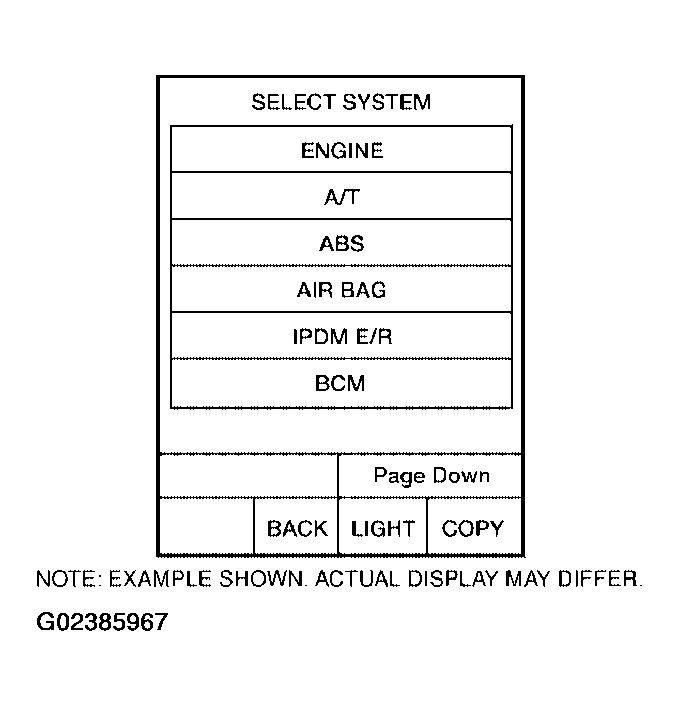

Fig 3: Identifying Select System Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "WORK SUPPORT", "SELF-DIAG RESULTS", "DATA MONITOR", "CAN DIAG SUPPORT MNTR", "ACTIVE TEST" or "ECU PART NUMBER" on selection screen.

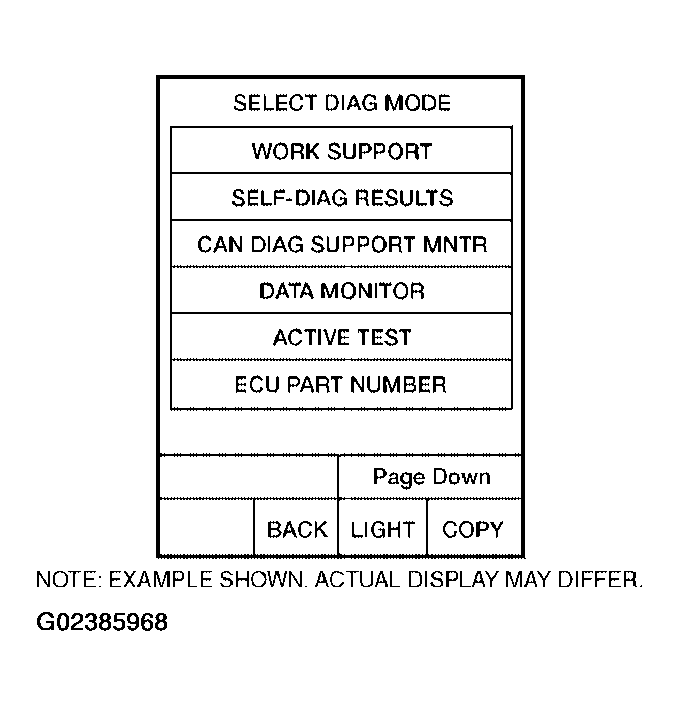

Fig 4: Identifying Self-Diag Mode Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
