Booster Sol/V 3

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Touch any of "MODE 1", "MODE 2", "MODE 3" to check that following operation condition is caused by operating monitor and brake pedal.
"START" is displayed 10 seconds after operation start. (Active test is completed.)

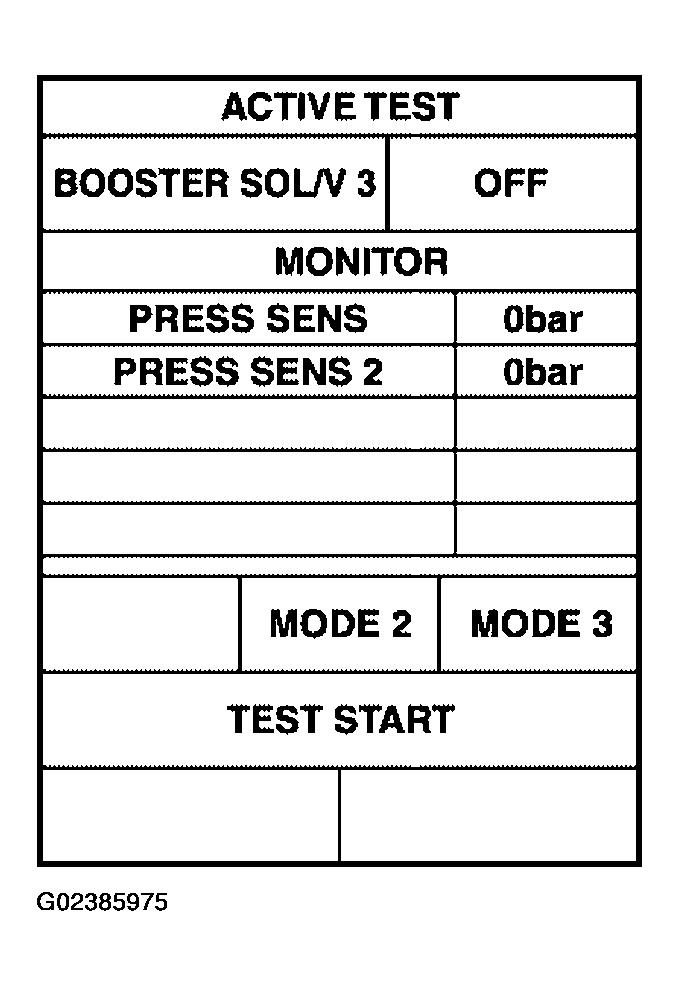

Fig 1: CONSULT-II Display - Active Test Screen (BOOSTER SOL/V 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

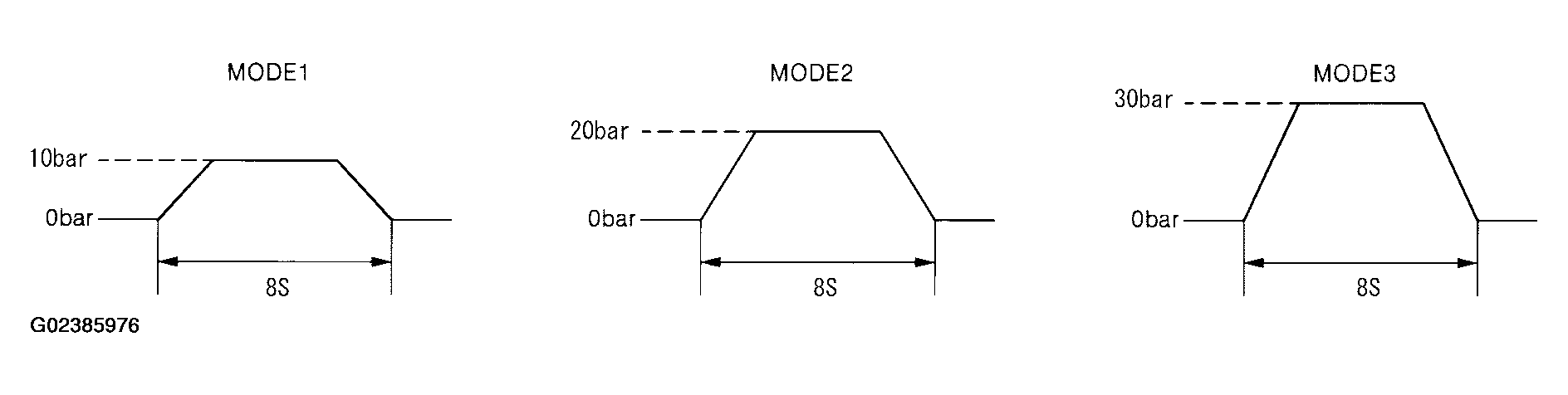

Fig 2: Identifying "MODE 1", "MODE 2"And "MODE 3"
Courtesy of NISSAN MOTOR CO., U.S.A.
