Adjusting The Position Of The Target Board String

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Attach a scale or straightedge (at least 350 mm [14 in] or longer).

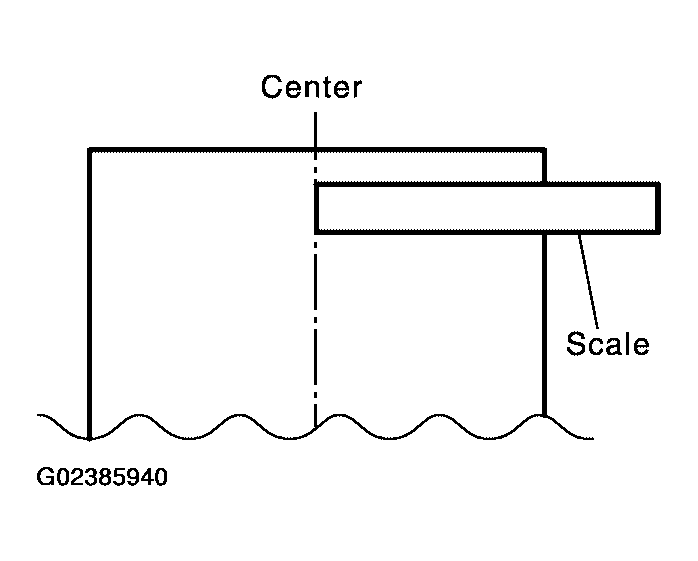

    Fig 1: Adjusting Position Of Target Board String By Attaching Scale Or Straightedge
    G02385940Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Suspend a string with a weight on the end 218 mm (8.6 in) to the left side of the target board center.

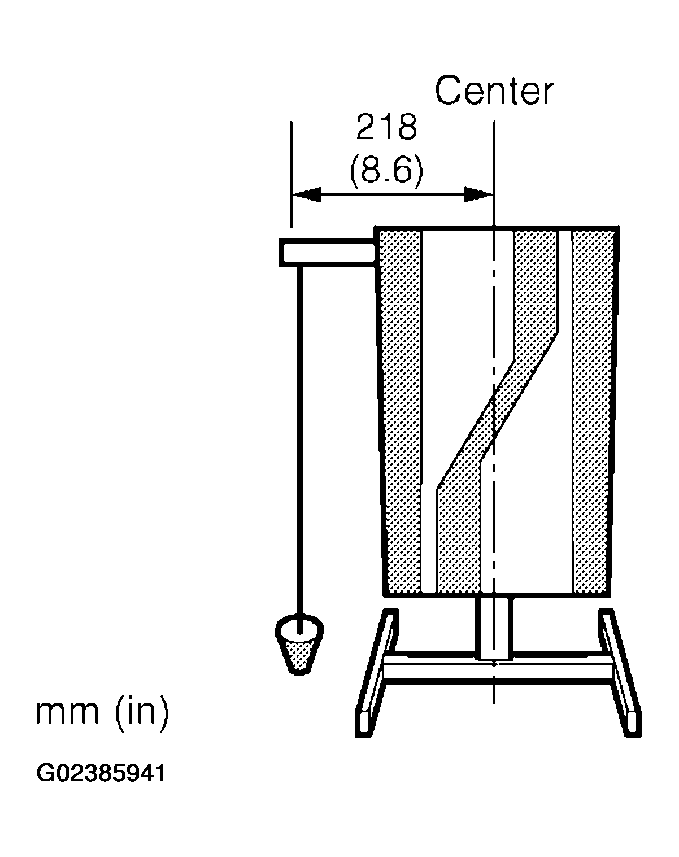

    Fig 2: Suspending String With Weight To Left Side Of Target Board Center
    G02385941Courtesy of NISSAN MOTOR CO., U.S.A.
