Adjusting Height Of The Target

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

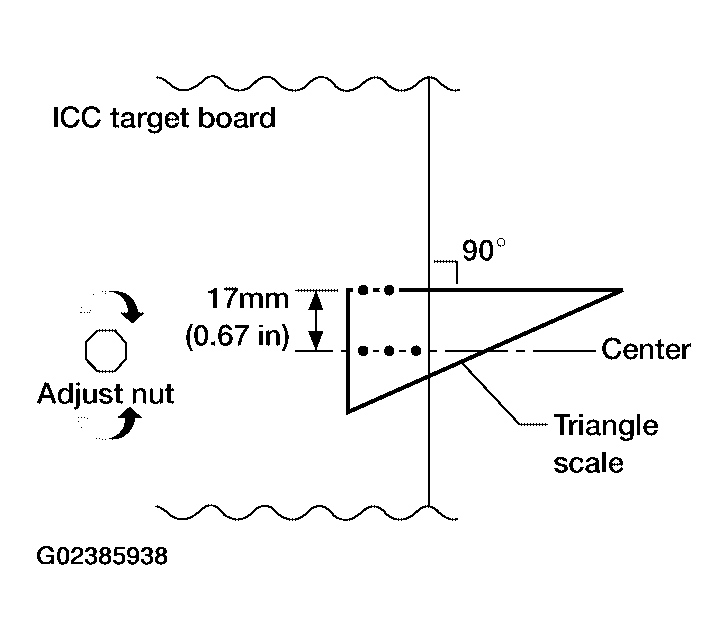

  1. Attach a triangle scale as shown.
    Fig 1: Adjusting Height Of Target By Attaching Triangle Scale
    G02385938Courtesy of NISSAN MOTOR CO., U.S.A.

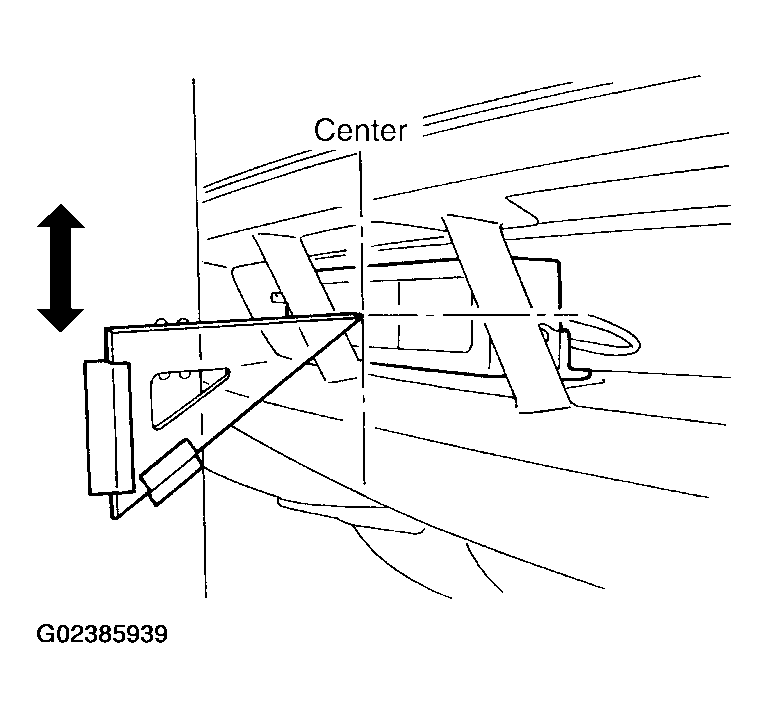

  2. Adjust the height of the target stand so that the point of the triangle aims above the center of the ICC sensor.
    Fig 2: Aiming Point Of Triangle Above The Center Of ICC Sensor
    G02385939Courtesy of NISSAN MOTOR CO., U.S.A.
